finally building my ka :-)

Post by signals13 » Tue Aug 13, 2013 7:24 am

So I finally got my motor back with all my goodies and will be taking pics along with the build stay tuned.

User avatar
S14wayz
Knows Some Stuff About 240's!
Posts: 419
Joined: Wed Apr 24, 2013 11:11 am
Location: BC, Canada

Re: finally building my ka :-)

Post by S14wayz » Tue Aug 13, 2013 9:50 pm

whats the plans?
My S14 Build Thread
viewtopic.php?f=40&t=59534

signals13
Knows Some Stuff About 240's!
Posts: 463
Joined: Thu Sep 09, 2010 5:45 pm
Location: Las Vegas

Re: finally building my ka :-)

Post by signals13 » Wed Aug 14, 2013 12:10 am

Ok so here are some pics of my motor I finally got back from the machine shop along with the head.
Thanks to turboholic for the cams which will be in asap just waiting for my cosworth hg.
JE pistons and K1 rods
Head is stock except for the cams, thinking about at least port matching intake and exhaust ports.
Decided to paint block white its high temp.
And should end up looking like this :)

User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Re: finally building my ka :-)

Post by shift_down » Wed Aug 14, 2013 9:21 am

The white looks clean! What color is your bay going to be?
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539

foltzs14
Knows Some Stuff About 240's!
Posts: 206
Joined: Mon Nov 28, 2005 1:02 am
Location: Las Vegas

Re: finally building my ka :-)

Post by foltzs14 » Wed Aug 14, 2013 10:22 am

Did you have a local machine shop do the work? The setup looks fantastic thus far.
The value of life can be measured by how many times your soul has been deeply stirred - S. Honda

arob987
Knows Some Stuff About 240's!
Posts: 320
Joined: Mon Feb 16, 2009 5:48 pm
Location: memphis,tn

Re: finally building my ka :-)

Post by arob987 » Wed Aug 14, 2013 11:03 am

Looks good keep up the good work
New turbo setup build in progress-11mm headstuds/cometic head gasket/jwt cam gears added,prec. 6266,gato mani,prec.46mm wg,bigger fmic,mspnp2,z32 trans,spec twin,q45 rear,full energy bushings. Still need injectors,and a few other small things

Old setup-ka24de-wiseco 9:1 pistons,eagle rods,arp studs,jwt s1 cams,brian crower springs and retainers,jgs log mani,t3 57trim .63 a/r,tomei 740cc,38mm turbonetics evolution wastegate,synapse bov,ebay fmic,nistune,j30 lsd.5 speed swap,z32 brakes F&R.

signals13
Knows Some Stuff About 240's!
Posts: 463
Joined: Thu Sep 09, 2010 5:45 pm
Location: Las Vegas

Re: finally building my ka :-)

Post by signals13 » Wed Aug 14, 2013 12:16 pm

[quote="shift_down"]The white looks clean! What color is your bay going to be?[/quote]

As of now its black not sure if I should change it, but I am thinking about a wire tuck.

signals13
Knows Some Stuff About 240's!
Posts: 463
Joined: Thu Sep 09, 2010 5:45 pm
Location: Las Vegas

Re: finally building my ka :-)

Post by signals13 » Wed Aug 14, 2013 12:20 pm

[quote="foltzs14"]Did you have a local machine shop do the work? The setup looks fantastic thus far.[/quote]

Yea jacks machine shop (its under a different name now but they still have the same phone number) did everything apart from assembly, i'm assembling it, thanks.

signals13
Knows Some Stuff About 240's!
Posts: 463
Joined: Thu Sep 09, 2010 5:45 pm
Location: Las Vegas

Re: finally building my ka :-)

Post by signals13 » Wed Aug 14, 2013 12:20 pm

Thanks guys I still have a long way to go :-)

signals13
Knows Some Stuff About 240's!
Posts: 463
Joined: Thu Sep 09, 2010 5:45 pm
Location: Las Vegas

Re: finally building my ka :-)

Post by signals13 » Sun Aug 18, 2013 10:47 am

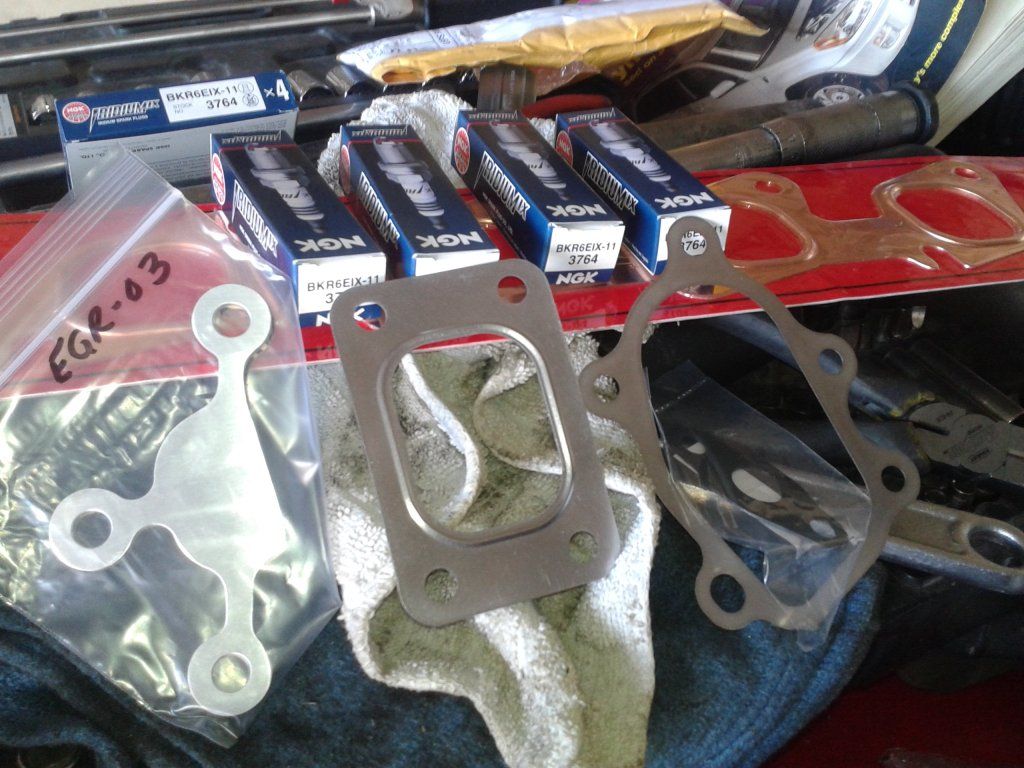

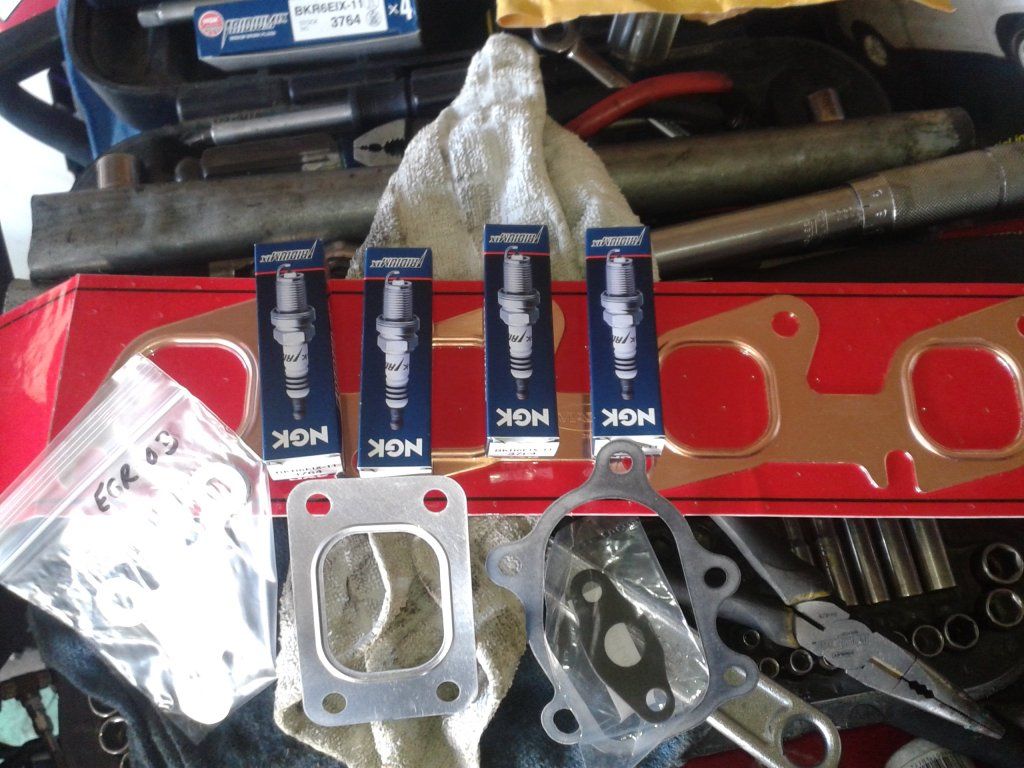

So I received my HG :D

Next step is head install and cams, assemble complete motor. I'm still debating whether or not to port match intake and exhaust ports??

signals13
Knows Some Stuff About 240's!
Posts: 463
Joined: Thu Sep 09, 2010 5:45 pm
Location: Las Vegas

Re: finally building my ka :-)

Post by signals13 » Wed Aug 21, 2013 10:12 am

So head is torqued down lower timing chain is on upper is half-way on just need to get the dang intake cam sprocket off and I can put the timing covers on :)
oh and cams are on and torqued.

NateDogg
Dont Question My Nissan Knowledge
Posts: 993
Joined: Fri Feb 11, 2005 4:31 pm
Location: BC CANADA

Re: finally building my ka :-)

Post by NateDogg » Wed Aug 21, 2013 3:35 pm

Nice did you get the 1.1mm hg?
'91 S13
Built, balanced KA-T

signals13
Knows Some Stuff About 240's!
Posts: 463
Joined: Thu Sep 09, 2010 5:45 pm
Location: Las Vegas

Re: finally building my ka :-)

Post by signals13 » Wed Aug 21, 2013 6:24 pm

I have the 1.5mm.

NateDogg
Dont Question My Nissan Knowledge
Posts: 993
Joined: Fri Feb 11, 2005 4:31 pm
Location: BC CANADA

Re: finally building my ka :-)

Post by NateDogg » Wed Aug 21, 2013 10:48 pm

Do you know the cr change on that?
'91 S13
Built, balanced KA-T

signals13
Knows Some Stuff About 240's!
Posts: 463
Joined: Thu Sep 09, 2010 5:45 pm
Location: Las Vegas

Re: finally building my ka :-)

Post by signals13 » Thu Aug 22, 2013 8:52 am

I should be right around 9:0, .025 was removed from head, with 8:5 pistons.

User avatar
S14wayz
Knows Some Stuff About 240's!
Posts: 419
Joined: Wed Apr 24, 2013 11:11 am
Location: BC, Canada

Re: finally building my ka :-)

Post by S14wayz » Thu Aug 22, 2013 6:57 pm

signals13 wrote:I should be right around 9:0, .025 was removed from head, with 8:5 pistons.
What made you go with the 1.5 instead of 1.1?? Curious cause I was about to order one last night and realized there were different thickness's and had me at a loss. And im assuming the thickness will play a pretty big part in c/r.
My S14 Build Thread
viewtopic.php?f=40&t=59534

signals13
Knows Some Stuff About 240's!
Posts: 463
Joined: Thu Sep 09, 2010 5:45 pm
Location: Las Vegas

Re: finally building my ka :-)

Post by signals13 » Thu Aug 22, 2013 8:20 pm

Yea it will affect the compression ratio, but it was because of the amount of material removed from the head and block.

signals13
Knows Some Stuff About 240's!
Posts: 463
Joined: Thu Sep 09, 2010 5:45 pm
Location: Las Vegas

Re: finally building my ka :-)

Post by signals13 » Mon Sep 02, 2013 9:58 pm

Update: 9/2/13
I received a bunch of parts that where ordered still waiting on more but its all going steady cant wait to finish her up sooooo excited :)

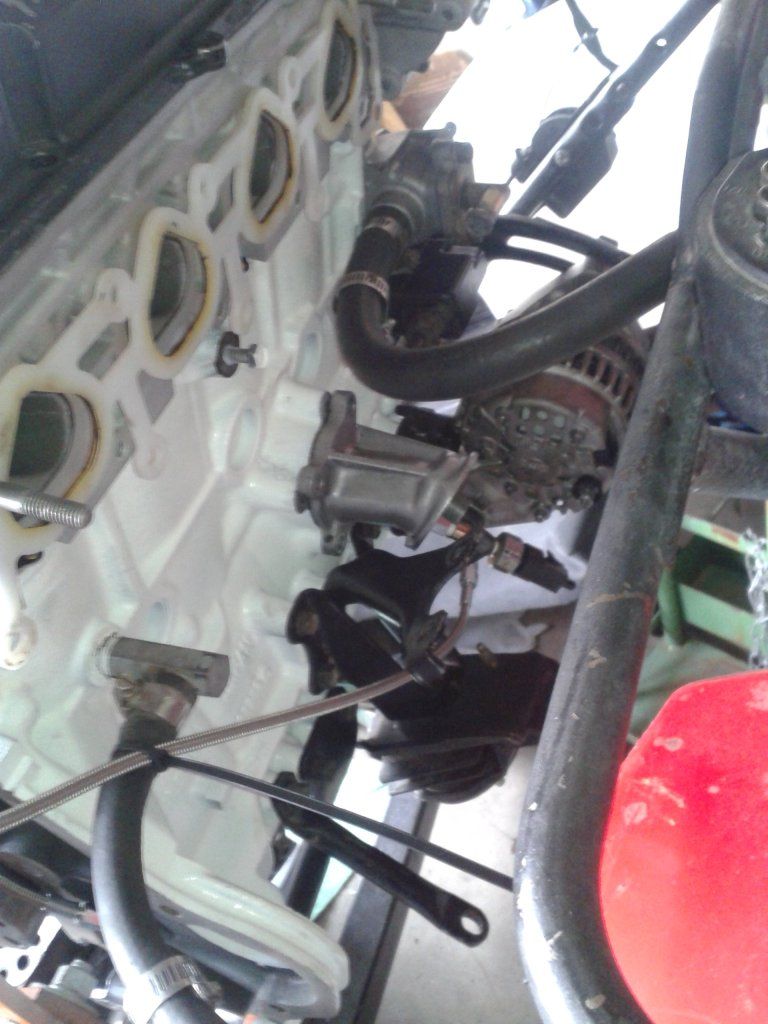

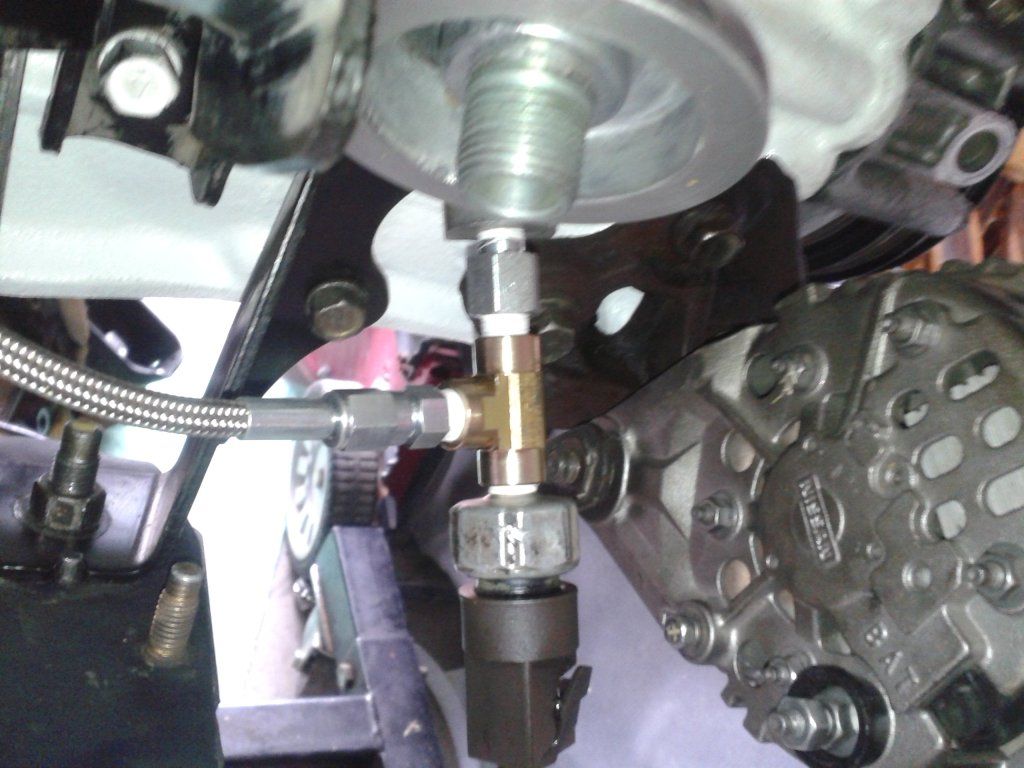

Oil feed setup
power steering on and water feed ready

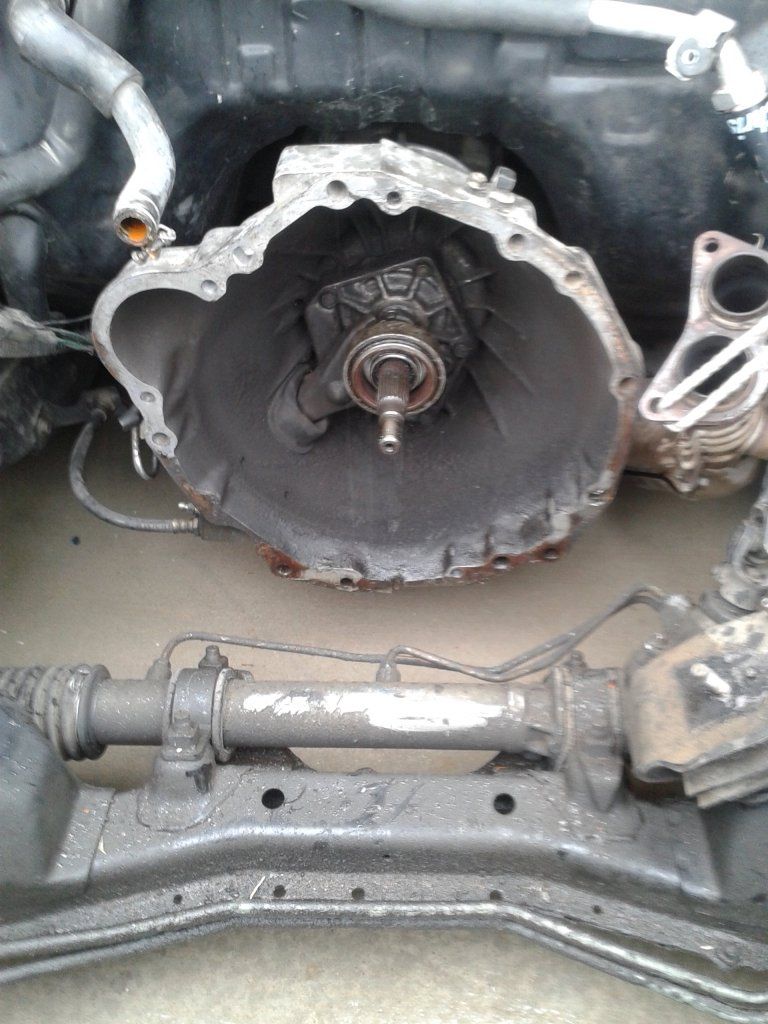

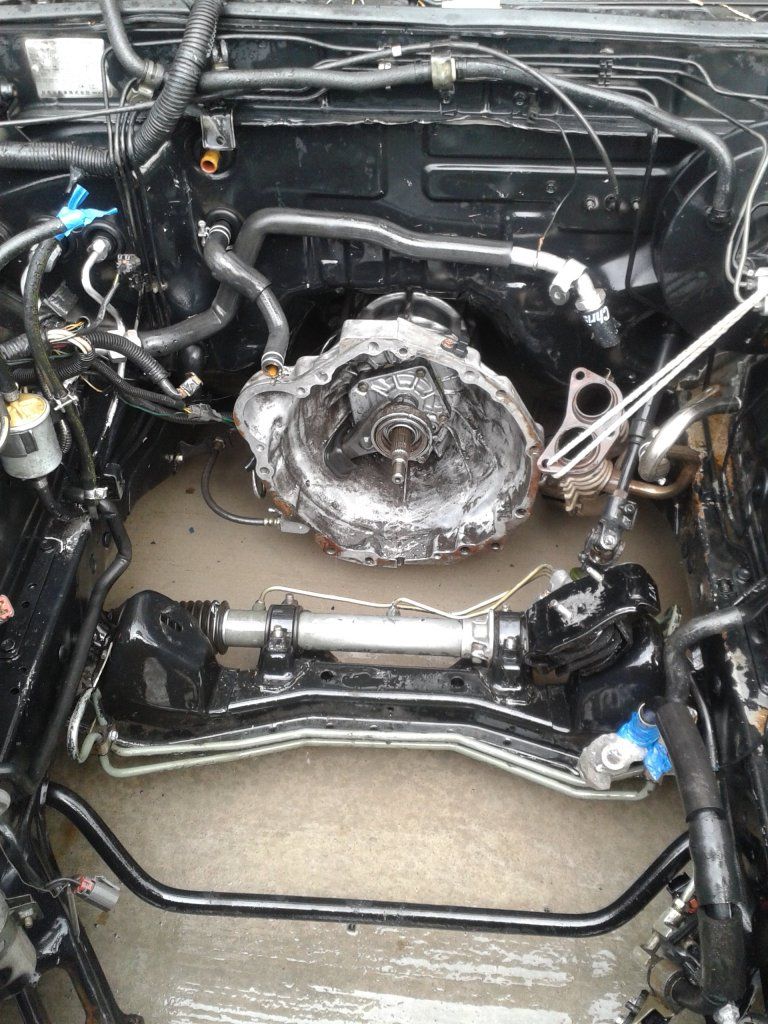

Cleaned my engine bay and transmission the best I could with an electric pressure washer

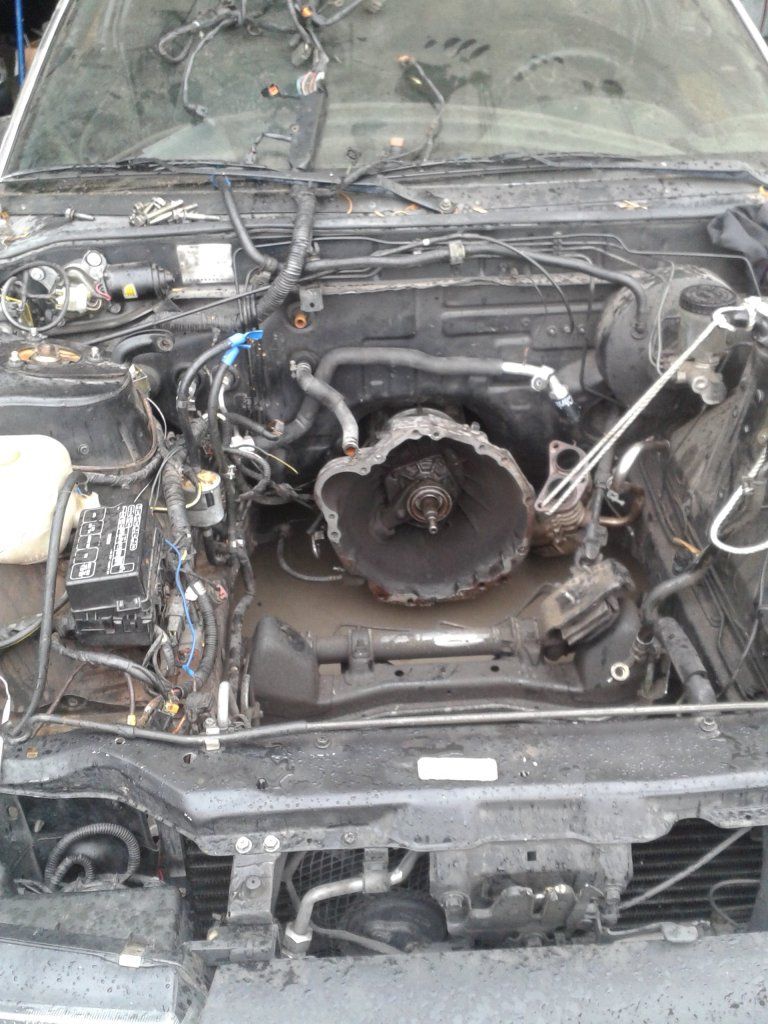

Before:
After:

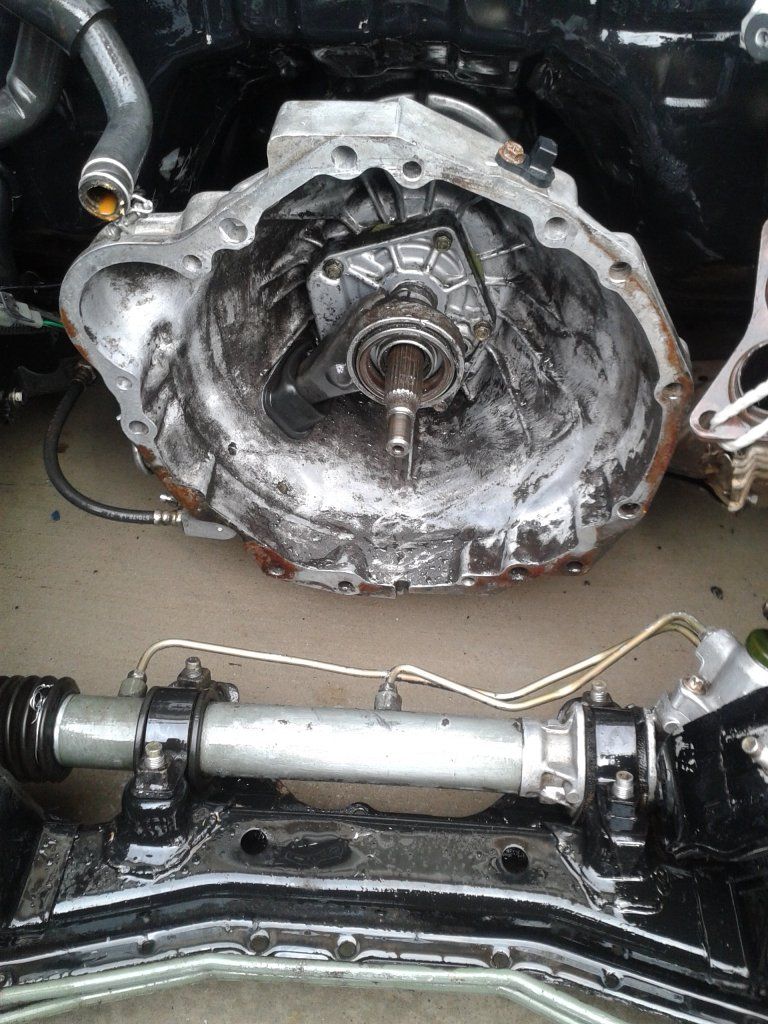

I love how clean the power steering rack came out just need to get the car on a lift to pressure wash underneath, oh I also installed Energy Suspension power steering rack bushings :) thanks for watching guys.

drifting1two40
Driving Mom's Station Wagon
Posts: 40
Joined: Mon Jun 04, 2012 12:58 pm
Location: funkytown, tx

Re: finally building my ka :-)

Post by drifting1two40 » Tue Sep 03, 2013 9:36 am

nice build so far cant wait to see it completed

MidwestJeff
Dreams of owning a 240!
Posts: 53
Joined: Mon Feb 07, 2011 9:48 am

Re: finally building my ka :-)

Post by MidwestJeff » Tue Sep 03, 2013 3:41 pm

That wash made a night and day difference

signals13
Knows Some Stuff About 240's!
Posts: 463
Joined: Thu Sep 09, 2010 5:45 pm
Location: Las Vegas

Re: finally building my ka :-)

Post by signals13 » Tue Sep 03, 2013 3:45 pm

Thanks drifting1two40, yea it did want to wash the the underbelly Jeff.

User avatar
500hpKA240sx
Encyclopedia-Nissan
Posts: 1100
Joined: Thu Jun 16, 2011 12:37 pm
Location: Bourbon, MO

Re: finally building my ka :-)

Post by 500hpKA240sx » Tue Sep 03, 2013 6:16 pm

looks sick! i really like the block being white. looks awesome
viewtopic.php?t=53160&postdays=0&postorder=asc&start=0

Paul Walker- 1973-2013 Race In Paradise. you will be forever missed

signals13
Knows Some Stuff About 240's!
Posts: 463
Joined: Thu Sep 09, 2010 5:45 pm
Location: Las Vegas

Re: finally building my ka :-)

Post by signals13 » Tue Sep 03, 2013 9:22 pm

Got a couple more things just really waiting on clutch ugh..... why must it take soooo lonngggg........

signals13
Knows Some Stuff About 240's!
Posts: 463
Joined: Thu Sep 09, 2010 5:45 pm
Location: Las Vegas

Re: finally building my ka :-)

Post by signals13 » Mon Sep 09, 2013 8:09 pm

Had an issue with previous clutch ordered thru cimotorsports.com, just wanna say I will not be doing business with them anymore. Clutch ordered thru ebay and its here=)
Water return line to t-fitting.
Just need to do the ceramic coating on mani and can throw motor in, soooo excited :D

t66-240
KA-T.org Sponsor
KA-T.org Sponsor
Posts: 52
Joined: Fri Apr 28, 2006 10:36 am
Location: AZ
Contact:

Re: finally building my ka :-)

Post by t66-240 » Wed Sep 11, 2013 6:21 pm

The oil feed is too long. The vibration in the KA will eventually crack it.

FWIW,

Mike
97 Altima (stock)
05 350Z touring powerlab turbo
93 240SX coupe not so stock
543.26 rwhp 463.88 rwtq

Mike Lee

signals13
Knows Some Stuff About 240's!
Posts: 463
Joined: Thu Sep 09, 2010 5:45 pm
Location: Las Vegas

Re: finally building my ka :-)

Post by signals13 » Wed Sep 11, 2013 7:24 pm

Are you talking about the t-fitting? Or the stainless line? What should I do?

t66-240
KA-T.org Sponsor
KA-T.org Sponsor
Posts: 52
Joined: Fri Apr 28, 2006 10:36 am
Location: AZ
Contact:

Re: finally building my ka :-)

Post by t66-240 » Fri Sep 13, 2013 1:07 pm

the whole thing is too long(not the line) and it will eventually crack. I did the same thing back in 97 when I first turboed my KA. I ended up removing the plug on the oil filter housing and re-tapped it for the turbo feed.
97 Altima (stock)
05 350Z touring powerlab turbo
93 240SX coupe not so stock
543.26 rwhp 463.88 rwtq

Mike Lee

signals13
Knows Some Stuff About 240's!
Posts: 463
Joined: Thu Sep 09, 2010 5:45 pm
Location: Las Vegas

Re: finally building my ka :-)

Post by signals13 » Fri Sep 13, 2013 7:25 pm

Thanks for the heads up I'll definitely change that around. :)

User avatar
Crash33
Dont Question My Nissan Knowledge
Posts: 982
Joined: Fri May 18, 2007 5:14 pm
Location: FL

Re: finally building my ka :-)

Post by Crash33 » Sat Sep 14, 2013 11:59 am

If you want to keep the oil pressure switch, look into a Honda oil feed adapter. I have been using one for years and it is a much bigger piece that resists cracking. plus if you have to go back to na you can just plug off the turbo feed port.
1993 240sx fastback FINALLY TURBOED!!!!
T3\60-1
JGS LOG MANI
740CC INJ.
NISTUNE

signals13
Knows Some Stuff About 240's!
Posts: 463
Joined: Thu Sep 09, 2010 5:45 pm
Location: Las Vegas

Re: finally building my ka :-)

Post by signals13 » Sun Sep 15, 2013 2:08 pm

Hey crash33 could you send me a pic of what you're setup looks like? thanks.
Update so here is my oil drain plug ready now :)

Post Reply
