*Post Your Engine Bay Pics*

This is for all those PICTURE THREADS ONLY. Motor installs, product writeups, showing off your car, put the thread in here.

Postby xpinoyxmk » Sat Nov 19, 2011 4:12 am

^^What happened? What was done too it?

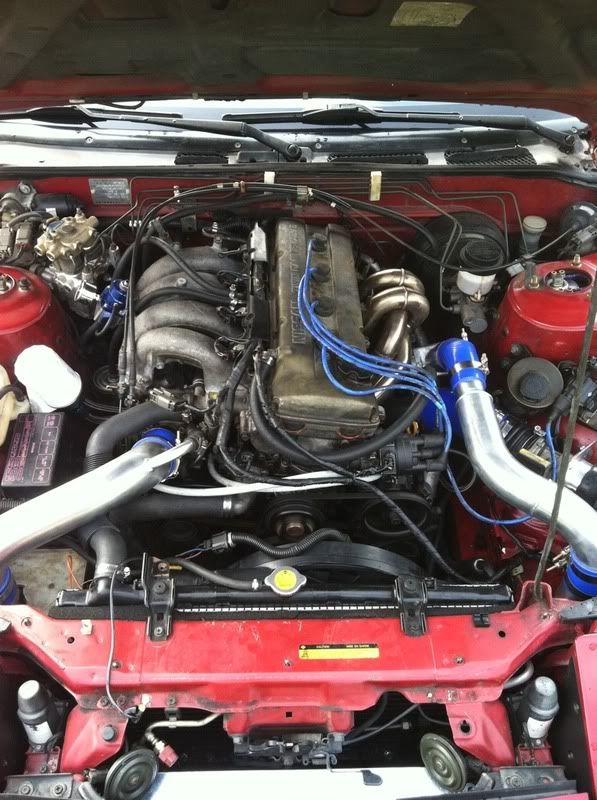

Old pic, such a mess. Cleaning it up little by little.

xpinoyxmk
Knows Some Stuff About 240's!

Posts: 217
Joined: Thu May 07, 2009 3:10 pm
Location: Charleston AFB, SC

Postby c_mancuyas8 » Sat Nov 19, 2011 4:46 am

Overboosted :/
c_mancuyas8
Knows Some Stuff About 240's!

Posts: 311
Joined: Mon Jan 31, 2011 8:44 pm
Location: Greenwood SC / Nashville Tn

Postby DrEaMeR_VaNg » Sun Nov 20, 2011 10:30 pm


I need a plate or something to cover my brake MC...
Kouki.Love.
DrEaMeR_VaNg
Dont Question My Nissan Knowledge

Posts: 577
Joined: Wed Oct 13, 2004 6:51 am
Location: SC

Postby turbo_dreams » Fri Jan 06, 2012 12:35 am

emo_tactical9 wrote:
turbo_dreams wrote:Image


Gave me two good years, only got to drive her for 3 months after i overhauled and wire tucked the bay, r.i.p piston rings. I'LL BE BACK ![/img]Image


How did you do the ducting on that?


I know I'm ages late, but to answer your Q, my radiator was slanted to join the Intercooler in the shape of a V. Creating it's own duct to trap air in between my radiator and Intercooler. I'm redoing the setup with a bigger Intercooler and using sheet metal to fabricate a duct to get more air in. Hope that helped.
****.
turbo_dreams
Driving Mom's Station Wagon

Posts: 40
Joined: Sun Jan 28, 2007 4:18 pm

Postby silviaks2nr » Sun Jan 08, 2012 1:10 pm

98 240sx 5spd
silviaks2nr
Dont Question My Nissan Knowledge

Posts: 644
Joined: Sun Mar 12, 2006 3:48 pm
Location: South Carolina

Postby 187MotorSports » Sun Jan 08, 2012 1:43 pm

Nice intake mani, got any more pics of it?
187MotorSports
240sx Wannabe

Posts: 139
Joined: Tue Jul 06, 2010 6:00 pm

Postby silviaks2nr » Sun Jan 08, 2012 7:46 pm

if you mean photos off the car, sorry i do not. The fabricator made it to fit the car so he may have additional photos. Tanmans14 on this forum.
98 240sx 5spd
silviaks2nr
Dont Question My Nissan Knowledge

Posts: 644
Joined: Sun Mar 12, 2006 3:48 pm
Location: South Carolina

Postby DC47A » Wed Jan 11, 2012 9:34 am

He did a fantastic job on that manifold!
DC47A
240sx Wannabe

Posts: 103
Joined: Tue Sep 06, 2011 1:46 pm

Postby Crack240 » Wed Feb 15, 2012 9:08 am



Image[/img]
Crack240
Driving Mom's Station Wagon

Posts: 49
Joined: Sun Dec 06, 2009 6:56 pm
Location: Norwalk, CT

Postby wesamiss » Fri Feb 17, 2012 12:07 am


pretty sick. she was hungry for wires. My haggard POS daily.
WES
User avatar
wesamiss
Knows Some Stuff About 240's!

Posts: 357
Joined: Tue Mar 08, 2011 8:34 pm
Location: Orlando, FL

Postby Johnny_k » Fri Mar 02, 2012 10:40 pm

xpinoyxmk wrote:^^What happened? What was done too it?

Old pic, such a mess. Cleaning it up little by little.



do u not need a catch can from the valve cover to the turbo? this question is for anyone that wants to respond
Johnny_k
NooB

Posts: 4
Joined: Sun Feb 19, 2012 10:47 am

Postby CINCYS13 » Sun Mar 04, 2012 10:24 am

getting there




CINCYS13
Dreams of owning a 240!

Posts: 71
Joined: Fri Jul 24, 2009 5:05 pm
Location: Cincinnati OH

Postby KYLEBRENAY » Sun Mar 04, 2012 1:51 pm

^^^nice! I like how it is coming along.








KYLEBRENAY
Knows Some Stuff About 240's!

Posts: 204
Joined: Wed Apr 05, 2006 5:26 pm
Location: Georgia/Florida

Postby cjr » Sun Mar 04, 2012 5:16 pm

My junk
cjr
Dreams of owning a 240!

Posts: 86
Joined: Sat Mar 13, 2010 10:09 am
Location: Indiana

Postby Mark Washington » Sun Mar 04, 2012 10:36 pm

Sweet cell location.
速い速い シルビア ターボターボ
Its not the size of the turbo,Its how you spool it.
User avatar
Mark Washington
Encyclopedia-Nissan

Posts: 1004
Joined: Thu Feb 25, 2010 6:45 pm
Location: BAY AREA

Postby DC47A » Mon Mar 05, 2012 11:28 am

Cell is def interesting. How many Gallons?
DC47A
240sx Wannabe

Posts: 103
Joined: Tue Sep 06, 2011 1:46 pm

Postby cjr » Mon Mar 05, 2012 3:41 pm

It is about 3 and half gal.
cjr
Dreams of owning a 240!

Posts: 86
Joined: Sat Mar 13, 2010 10:09 am
Location: Indiana

Postby tay187 » Thu Mar 08, 2012 3:43 pm

Here's mine

User avatar
tay187
240sx Wannabe

Posts: 107
Joined: Tue Jun 07, 2011 12:13 pm
Location: South East Idaho

Postby Alonso » Sat Mar 10, 2012 5:12 pm

silviaks2nr wrote:Image


How's that throttle body working out for you? Any issues? I got the 90mm version off ebay, figured I'd give it a shot.

Still working on it :/
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240
User avatar
Alonso
Dont Question My Nissan Knowledge

Posts: 746
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Postby silviaks2nr » Sun Mar 11, 2012 10:13 am

it was fine for the first few weeks, now it leaks out the shaft behind the tps.
98 240sx 5spd
silviaks2nr
Dont Question My Nissan Knowledge

Posts: 644
Joined: Sun Mar 12, 2006 3:48 pm
Location: South Carolina

Postby Alonso » Sun Mar 11, 2012 10:33 am

Damn I was afraid youd say something like that. I've also seen q45 tbs leak too...hmm. have you tried taking it apart? Surely it has seals that can be replaced...
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240
User avatar
Alonso
Dont Question My Nissan Knowledge

Posts: 746
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Postby silviaks2nr » Sun Mar 11, 2012 3:11 pm

Yeah I haven't taken it apart to see. The leak is pretty significant since I can't get it to pressure test past 1psi.
98 240sx 5spd
silviaks2nr
Dont Question My Nissan Knowledge

Posts: 644
Joined: Sun Mar 12, 2006 3:48 pm
Location: South Carolina

Postby Mark Washington » Mon Jun 11, 2012 7:38 pm

This is the daily. Fully built CP,Eagle,ARP,ARP,Clevite,Two 91 Exhaust cams with JWT gears retarded 1* and back cut oversized valves. Walbro 255,SAFCII 370cc Q45 injectors,MSD 6al and blaster coil nology wires OEM cap and rotor,Timing advanced 16* Pacesetter header with MR gasket and Stage 8 locking fasteners on the real Apexi N1 with a magnaflow cat to keep noise down and pop off throttle. It also has B&M Shifter and a pretty cheep ACT 6 puck clutch that slipped on my ka24ET, but works fine for this car. Oh yeah xcessive intake manifold (Thanks Rich!!) Q45 Throttlebody.
I am not using an Idle control valve or any EGR smog crap, but I still use the charcol can cause it keeps the smells down.. Since its a daily driven car. I wanted 240HP from it but failed
most likly from the low compression and the fact that none of the mods really make gains for a N/A aplication. The AFR's were good and it starts right up in cold mornings doesnt have any cooling issues and really feels grunty for what it is.

[IMG]http://i945.photobucket.com/albums/ad291/markwashington/na.jpg[/IMG]
Somone please post this pic. My account wont let me. Thanks. Just wanted to share this even though its not turbo. It will get boosted, I just wanted to make sure it ran great before chasing those issues.
速い速い シルビア ターボターボ
Its not the size of the turbo,Its how you spool it.
User avatar
Mark Washington
Encyclopedia-Nissan

Posts: 1004
Joined: Thu Feb 25, 2010 6:45 pm
Location: BAY AREA

Postby emo_tactical9 » Mon Jun 11, 2012 8:44 pm

Mark Washington wrote:
Just call me Adam.
95 240: DIYPNP and T28.
08 Honda Fit
84 200sx: Sold after almost 10 years.
My file hosting:Calum,MegaSquirt,FSM
User avatar
emo_tactical9
Belongs To The TOP CONTRIBUTING MEMBERS!

Posts: 3086
Joined: Tue Sep 18, 2007 3:21 am
Location: Bowling Green, KY

Postby Mark Washington » Thu Jun 14, 2012 7:04 pm

Thank you^
速い速い シルビア ターボターボ
Its not the size of the turbo,Its how you spool it.
User avatar
Mark Washington
Encyclopedia-Nissan

Posts: 1004
Joined: Thu Feb 25, 2010 6:45 pm
Location: BAY AREA

Postby shift_down » Thu Jun 14, 2012 7:45 pm

Hey emo, have you ever thought about relocating the battery to where the filter is, and relocating the filter to where the battery is? Makes more sense than to route air in front of a hot engine. Or am I wrong?
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: http://www.ka-t.org/forums/viewtopic.php?t=57539
User avatar
shift_down
SuperMod

Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Postby Wmcleverly » Thu Jun 14, 2012 9:06 pm

Here is my toy!!! Finally drivable

Eagle rods; Wiseco dished pistons; balanced rotating assembly; Supertech valves, springs, retainers, seals; 248/248 cam swap w/ JWT adj sprockets; ACT 6puc clutch; 11lb flywheel; GT3582r journal bearing turbo; 600cc JECS; Godspeed intake manifold; Cometic .075" head gasket; ARP studs upper and lower engine; Maxima coil on plug conversion, xcessive distributor delete cap; AEM series 2 = 404whp 316ft lbs torque
Wmcleverly
Learners Permit

Posts: 18
Joined: Thu Nov 03, 2011 10:28 am
Location: Phoenix

Postby sdaigle240 » Fri Jun 15, 2012 5:37 am

airman wrote:I'm all about spreadsheets. Bitches love spreadsheets.
schmauster920 wrote:I shall cast my own pistons in the sands of time, then forge them in the depths of hell.. as funds allow
hy35 18psi Build Thread: forums/viewtopic.php?t=38784
RIP MJL best friend of 20 years and the man who showed me 240s
User avatar
sdaigle240
Belongs To The TOP CONTRIBUTING MEMBERS!

Posts: 4670
Joined: Wed Oct 17, 2007 9:53 am
Location: CONN.

Postby s-14 » Sun Jun 17, 2012 3:49 pm


New setup :D
User avatar
s-14
Dont Question My Nissan Knowledge

Posts: 506
Joined: Fri May 12, 2006 9:43 am
Location: Uranus

Postby jmac636 » Thu Jun 28, 2012 6:34 am

My green kouki ls1 engine bay.

My red zenki engine bay. (mafs is now blowthru)
1995 S14 daily built block nismotronics sr20det Ecu running my ka-t, synergy green S14 5.3l turbo 240sx 1/4 mile traps 135mph on 13psi and dr's.
Holset HE341 Install thread woohoo!!
forums/viewtopic.php?t=48692
http://www.playloudclothing.com/
User avatar
jmac636
Knows Some Stuff About 240's!

Posts: 414
Joined: Wed Aug 13, 2008 11:10 am
Location: TEXAS
