For the oil pan return I just used a tube. It used to be part of the oil return from a stock rb25 turbo. Idk what degree the bend was, I just made sure it lined up with the outlet on the turbo.

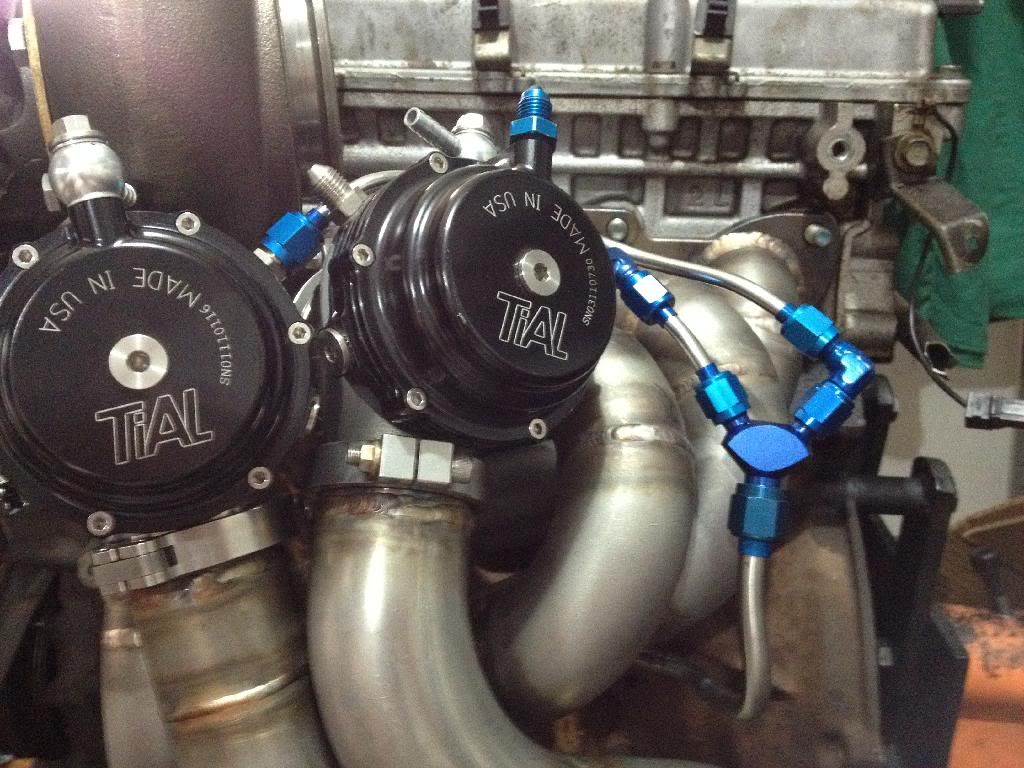

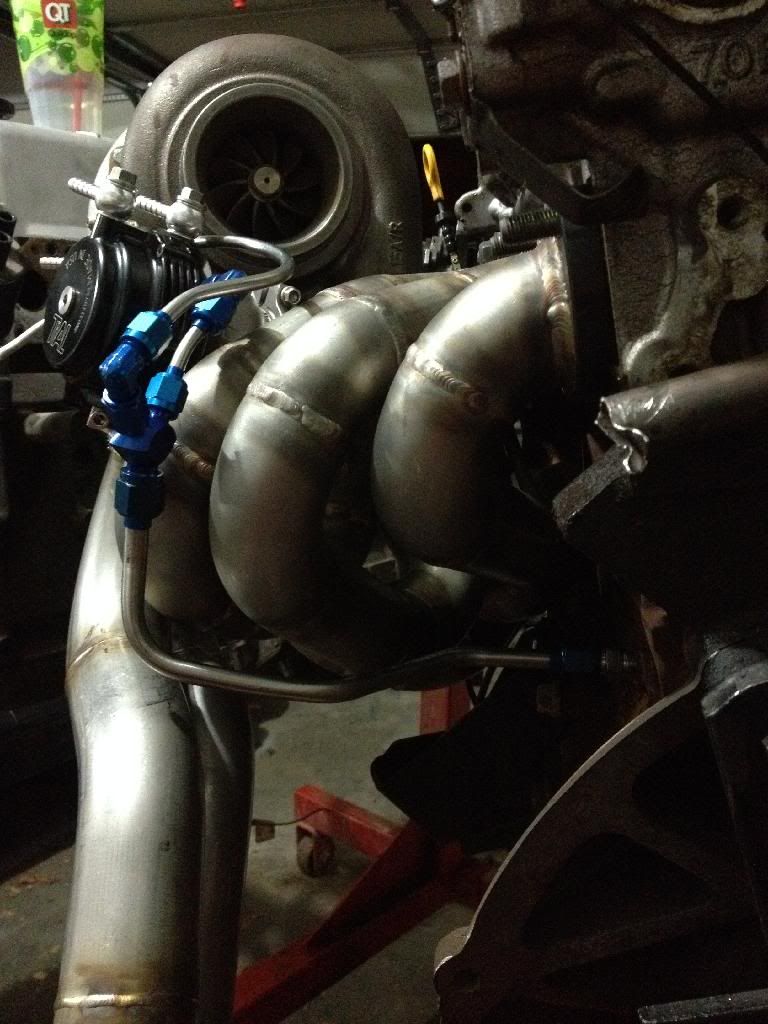

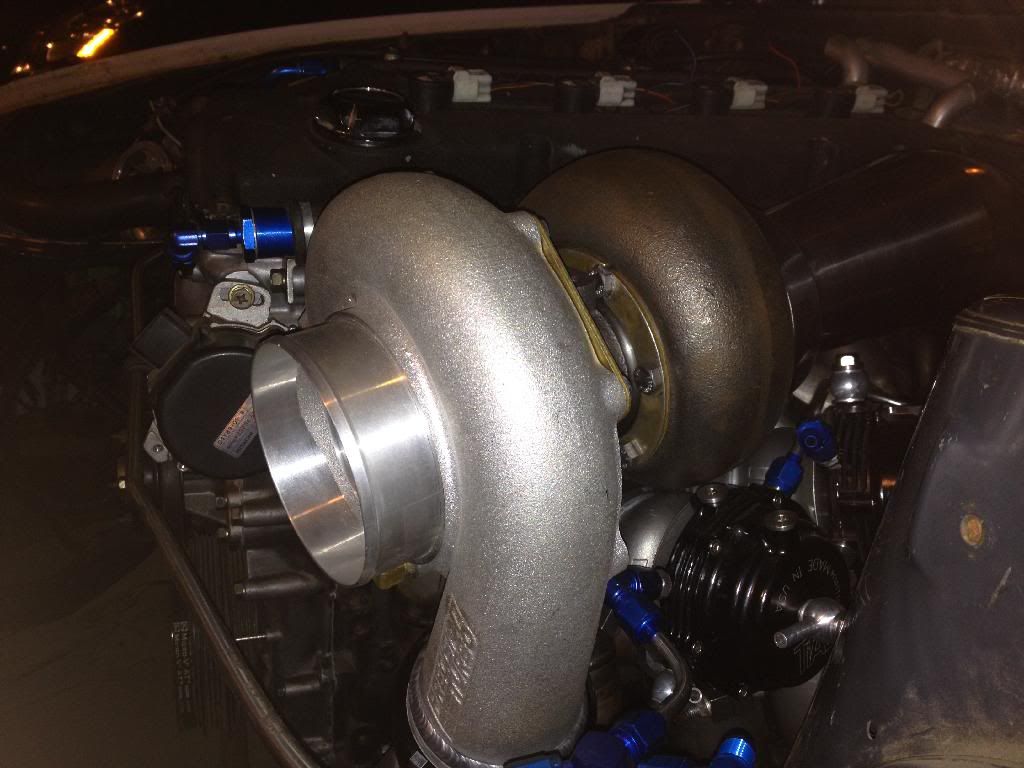

There are no vacuum/boost lines hooked up to the wastegates. Those are stainless steel hard lines used for coolant. Decided to hook up the water cooling ports on the wg's as everything is so close to each other. I bent the tubes and flared them myself.
It starts at the block as a single -6an(3/8") tube then splits to a pair of -4an(1/4") tubes then back to a single -6 line. The coolant returns where the temp sender for the gauge cluster used to be. The sender was relocated below the stock location.
