D.I.Y Motor Mounts

Post by MiaS13 » Tue Sep 08, 2009 12:27 am

Mods Please Sticky
What: Homemade Engine Mounts
Why: Alternative to Hockey Pucks, Nismo Mounts or Stock Mounts
Time: 1 hour

Tools Needed:
Drill with 3/8th Metal Drill Bit
Table Saw or Hand Saw
Tape Measure
Chalk

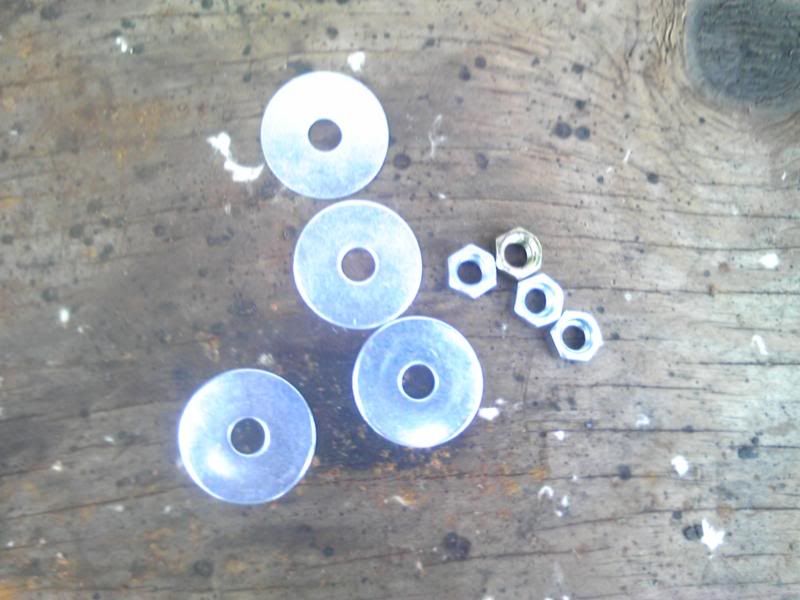

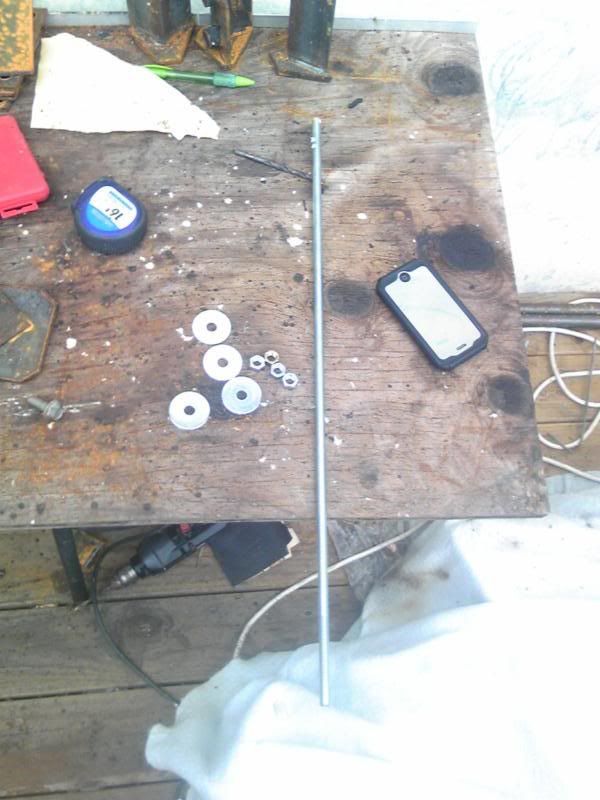

Materials Needed:

1 - Tube of super glue
2 - 16oz Rubber Mallets

1 - 2ft length of 3/8ths all thread
4 - 3/8ths Nuts
8 - Washers (only 4 pictured)

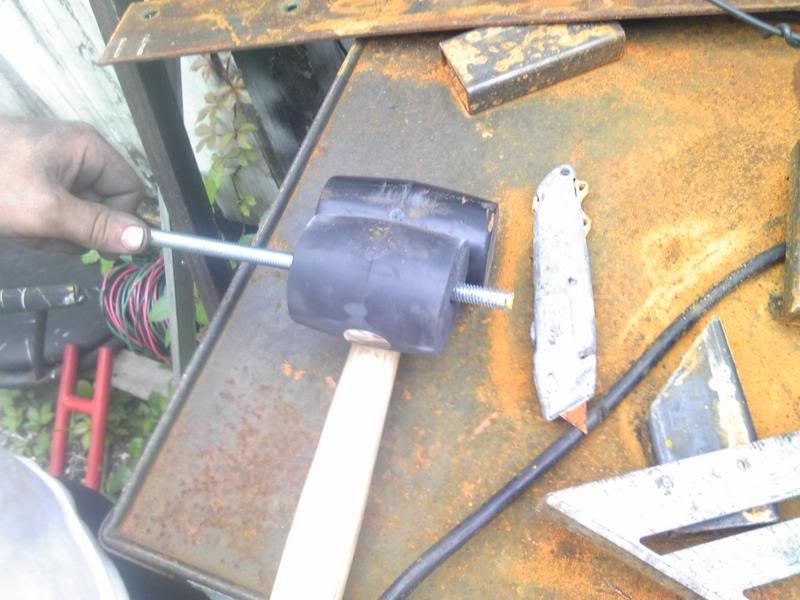

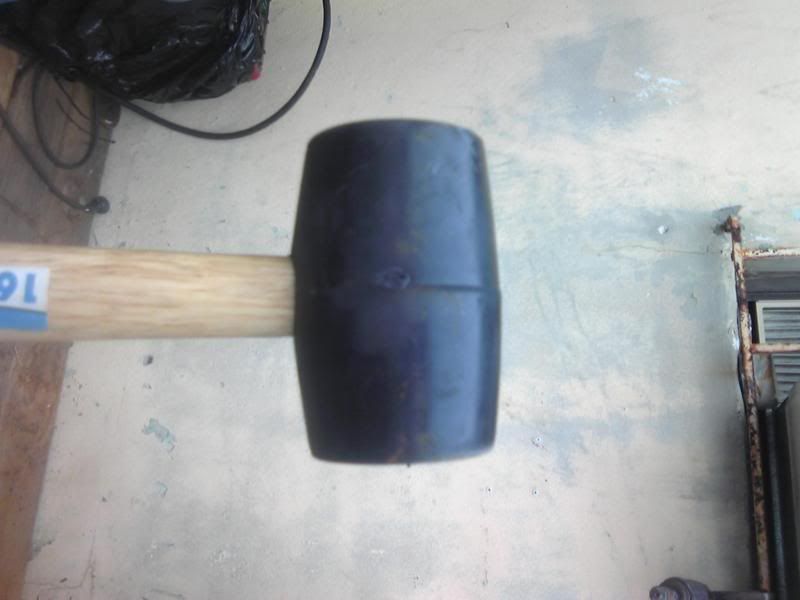

Step 1
Take your drill and drill a hole straight through the rubber mallet width-wise.
(there's metal in the middle so make sure you have the proper bit)

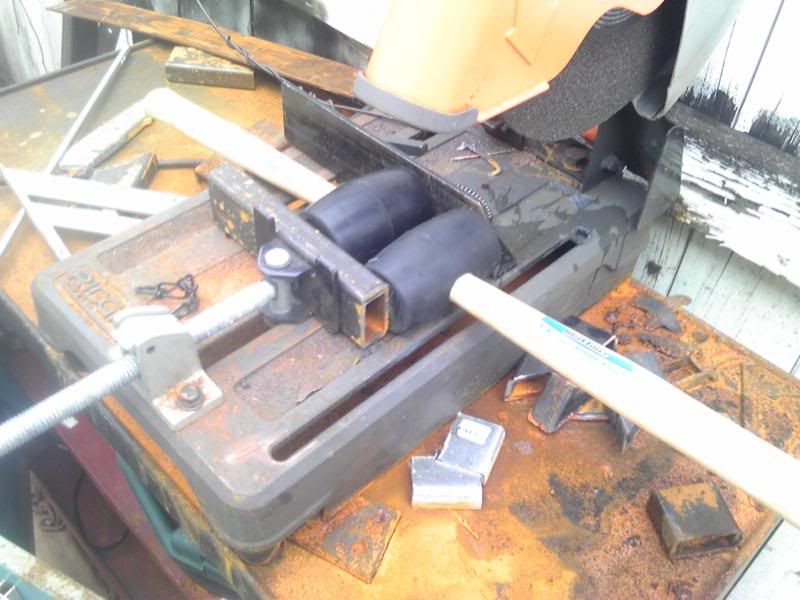

Step 2
Then Cut the handles off

So they look like this

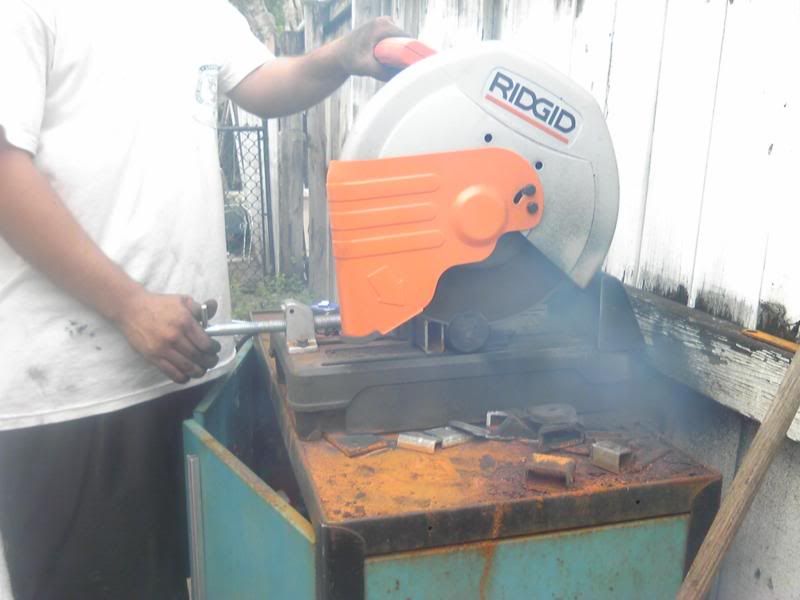

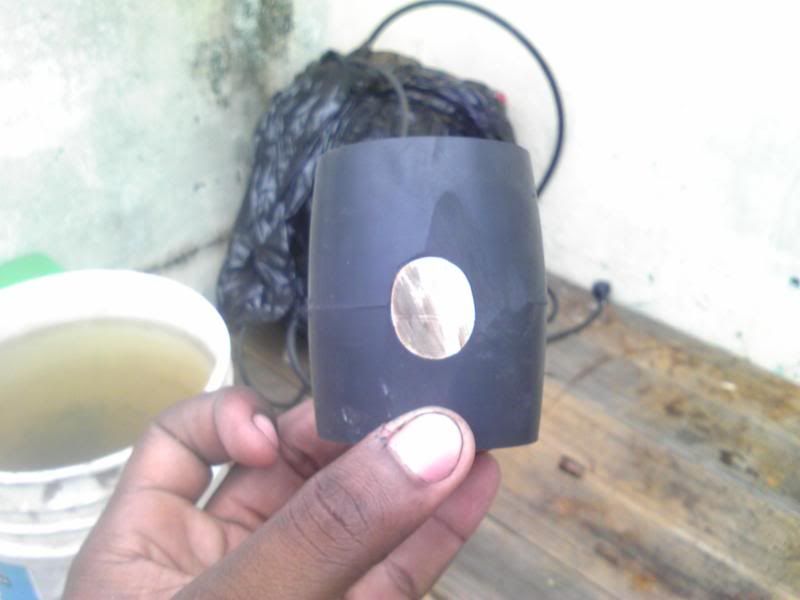

Step 3
measure the rubber and cut off rubber it until it measures 3 inches
(you can go smaller to lower the motor if you have clearence issues)

like so

Step 4

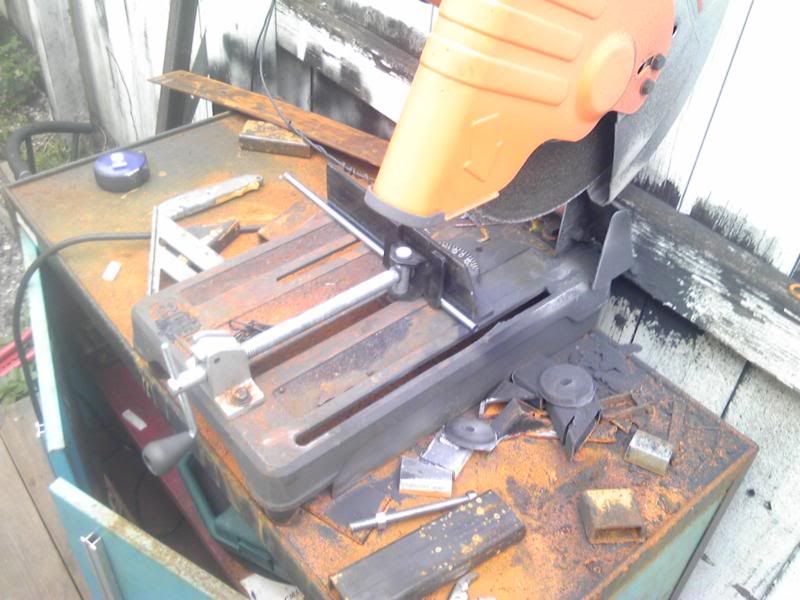

Cut 2 5&1/4inch lengths of all thread

Step 5

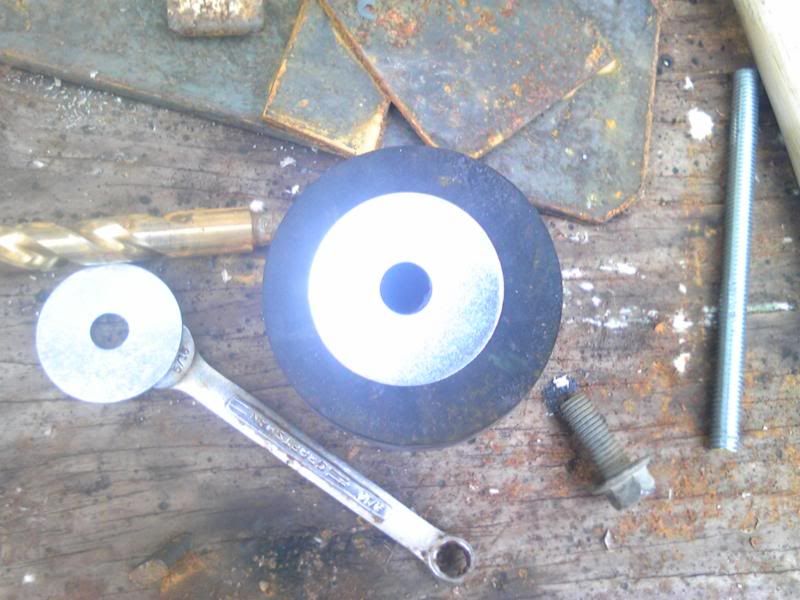

Super Glue your washers around the holes on the rubber

Step 6
Push your 5&1/4inch lengths of all thread through the rubber

Step 7
screw nuts on each side

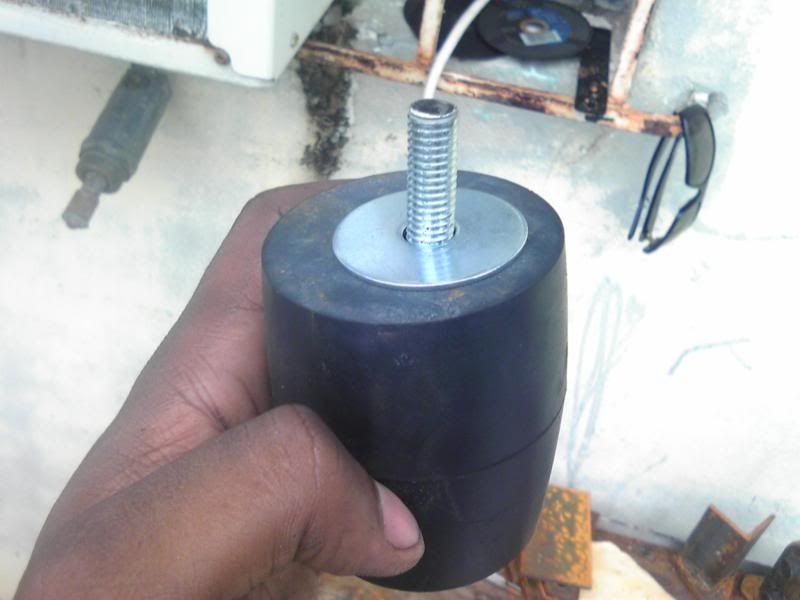

Final Product

i chose to leave them bare, you can also wrap them in heavy duty tape or what not.

Jackasknissan
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 1517
Joined: Thu Mar 29, 2007 5:27 pm
Location: Richmond, BC

Post by Jackasknissan » Tue Sep 08, 2009 6:53 am

those are better than pucks how?


pucks for the win.
Turbo24sxt wrote:SOHC > DOHC ... period ...
oaznbeasto wrote: Hey 6 posts, Go **** yourself! learn something then post[/quote

Spud5251
Encyclopedia-Nissan
Posts: 1311
Joined: Thu Jul 14, 2005 8:52 pm
Location: Louisa/Richmond, Va

Post by Spud5251 » Tue Sep 08, 2009 9:32 am

How well do you think they are going to hold up to the heat from your engine? i can understand saving a few bucks here and there but damn.
Too much to list.

KA26DE-T in the making. BC Stroker Kit, Kelford 272's, borg warner s258 (18-20 psi)9.5 to 1 compression, Full Race Twin Scroll, and a few more goodies.....

User avatar
TinyT
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 3336
Joined: Thu Oct 12, 2006 5:55 am
Location: wisco

Post by TinyT » Tue Sep 08, 2009 2:54 pm

this is realhomemadeturbo.com style ****. haha.

" dude is that wood in your motor mount?"

good effort, but that might be a wee bit sketch

frankist
240sx Wannabe
Posts: 179
Joined: Sat Mar 07, 2009 8:59 pm
Location: Southern California.
Contact:

Post by frankist » Tue Sep 08, 2009 11:58 pm

cool stuff. i like my nismo stuff but im sure this would work fine. =) tell us how much power your putting up against this, ride impressions, and life of these mounts. might help out another member =)
///+++

cmoody2006
Driving Mom's Station Wagon
Posts: 27
Joined: Wed Mar 19, 2008 8:24 pm
Location: Indiana
Contact:

Post by cmoody2006 » Wed Sep 09, 2009 10:20 am

I think I might try this for my stock motor just to see how well it holds up

Jackasknissan
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 1517
Joined: Thu Mar 29, 2007 5:27 pm
Location: Richmond, BC

Post by Jackasknissan » Wed Sep 09, 2009 4:44 pm

please use pucks instead.. instead of spending more for a hammer,
just buy 4 pucks....
Turbo24sxt wrote:SOHC > DOHC ... period ...
oaznbeasto wrote: Hey 6 posts, Go **** yourself! learn something then post[/quote

240tuned91
Encyclopedia-Nissan
Posts: 1165
Joined: Sat Feb 02, 2008 3:46 pm
Location: northern nj
Contact:

Post by 240tuned91 » Sun Sep 13, 2009 9:07 am

rubber malets tend to crack from hot/cold weather. maybe it will work fine. let us kno how it works for you and the vibration level. what are u setting ur idle at.

200sxBoY
Dreams of owning a 240!
Posts: 92
Joined: Fri Mar 09, 2007 5:41 pm

Post by 200sxBoY » Fri Nov 13, 2009 7:19 am

ghetto lol

User avatar
eazye2000
Encyclopedia-Nissan
Posts: 1358
Joined: Tue Jan 16, 2007 4:32 am
Location: Inverness, FL
Contact:

Post by eazye2000 » Tue Nov 17, 2009 6:46 pm

Any updates on this? I'm curious to see how it came out.

I just had a buddy give me two solid pieces of steel with a hole in them for my new solid mounts. I'd like some feedback on this before I add 12 pounds of steel to my car. lol

User avatar
TinyT
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 3336
Joined: Thu Oct 12, 2006 5:55 am
Location: wisco

Post by TinyT » Tue Nov 17, 2009 11:05 pm

eazye2000 wrote:Any updates on this? I'm curious to see how it came out.

I just had a buddy give me two solid pieces of steel with a hole in them for my new solid mounts. I'd like some feedback on this before I add 12 pounds of steel to my car. lol
your gonna hate your life

factory_option
Dreams of owning a 240!
Posts: 85
Joined: Wed Jul 15, 2009 2:16 pm
Location: Va Beach, VA

Post by factory_option » Thu Nov 19, 2009 11:09 am

I have JGS Poly mounts and I hate life. I couldn't imagine solid mounts. Get the JGS Rubber and call it a day.

User avatar
el tigre
Encyclopedia-Nissan
Posts: 1491
Joined: Thu Jun 30, 2005 11:24 am
Location: GH of MI
Contact:

Post by el tigre » Mon Nov 23, 2009 11:18 am

I wouldn't recommend this. I tried a similar setup, but with the rubber from dock stops for semi trucks. The engine eventually torques into the mounts and causes the studs to loosen, not to mention it greatly reduced the efficiency of putting power to the ground. The mounts were swapped to JGS Polys and it was night and day. I wouldn't recommend this to anyone, period. Sorry dude.
1981 AC El Tigre 5000
1991 240 SE KA-T, 5 sp. -Sold
1991 Miata, KA-T - Project

Liger
Encyclopedia-Nissan
Posts: 1252
Joined: Mon Jun 04, 2007 12:15 pm
Location: Cali

Post by Liger » Mon Nov 23, 2009 12:40 pm

eazye2000 wrote:Any updates on this? I'm curious to see how it came out.

I just had a buddy give me two solid pieces of steel with a hole in them for my new solid mounts. I'd like some feedback on this before I add 12 pounds of steel to my car. lol

Yeah. I would not do this. I had solid aluminum mounts for about a week and it was hell. My dash vibrated a good inch or more and the gauges bounced around so much they were useless, let alone the vibration through the steering wheel. Plus, it was ridiculously loud inside.

So, cut them down and use some reinforced rubber bushings and you'll be good to go.

drivemarcusdrive
Dreams of owning a 240!
Posts: 99
Joined: Thu Feb 28, 2008 1:45 pm
Location: michigan

Post by drivemarcusdrive » Mon Nov 23, 2009 1:39 pm

good thinking outside the box, but +1 for hockeypuckamoturmountsss. if its not broke dont fix it. i really wanna try full solid sometime, haha. btw MI loves hockey pucks!

89SOHCvettehunter
Dreams of owning a 240!
Posts: 52
Joined: Mon Feb 08, 2010 9:02 am
Location: Claremore Ok

Post by 89SOHCvettehunter » Mon Feb 08, 2010 9:43 am

I did the same thing but with the homemade polyurethane stuff. poured into a pop can with one end cut out and a whole in the other to put bolt thru works good no problems yet. i know i know ghetto

User avatar
Jordan Gladman
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 3254
Joined: Tue Jul 20, 2004 11:14 pm
Location: Abbotsford, BC

Post by Jordan Gladman » Mon Feb 08, 2010 10:16 pm

Any DIY mount that uses a bolt that goes right through the mount is worthless IMO.... you might as well just run a steel puck.

The tension through the bolt will make for a very solid feeling mount and the rubber will have little effect. I was doing urethane mounts like this for a while and just wasnt happy selling them.

The only way to go is with an isolated engine mount where there is no direct line of steel between the motor and the subframe.

If you want a good DIY mount, buy 2 pucks and countersink enough room to put a bolt/washer under each puck facing outwards. Then screw the 2 pucks together at the perimeter. This will isolate the bolts from each other and still give a stiff mount without a solid contact line.

bassboy3313
Driving Mom's Station Wagon
Posts: 24
Joined: Tue Sep 22, 2009 5:51 pm
Location: Wisconsin
Contact:

Post by bassboy3313 » Fri Feb 12, 2010 2:09 pm

^^^+1

User avatar
rob 2fast4u
Knows Some Stuff About 240's!
Posts: 328
Joined: Wed Jul 05, 2006 4:45 pm
Location: Ontario
Contact:

Post by rob 2fast4u » Sat Feb 20, 2010 7:13 pm

Jordan Gladman wrote:Any DIY mount that uses a bolt that goes right through the mount is worthless IMO.... you might as well just run a steel puck.

The tension through the bolt will make for a very solid feeling mount and the rubber will have little effect. I was doing urethane mounts like this for a while and just wasnt happy selling them.

The only way to go is with an isolated engine mount where there is no direct line of steel between the motor and the subframe.

If you want a good DIY mount, buy 2 pucks and countersink enough room to put a bolt/washer under each puck facing outwards. Then screw the 2 pucks together at the perimeter. This will isolate the bolts from each other and still give a stiff mount without a solid contact line.
any pics to show examples ?
fully built:
supertech 8.6:1
eagle H-beams
272BC cams
BC Dual springs
has t3/t04e 60trim need a bigger one for 25psi ???? s366 maybe
custom exh & intake manifolds
ebay ssqv bov
2.5"hotpipe, 3"coldpipe, Blow through MAF
AEM FIC,Zeitronix wideband, z32 maf
Bosch 1000cc inj, Twin walbro's, -8AN feed line,.... and lots more

User avatar
Jordan Gladman
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 3254
Joined: Tue Jul 20, 2004 11:14 pm
Location: Abbotsford, BC

Post by Jordan Gladman » Wed Feb 24, 2010 10:39 am

Just because I dont want people wasting their time with crappy motor mounts, I drew this up.

You would want washers on the outside of the pucks, I just removed them to simplify. I think its self explanitory.



cmoody2006
Driving Mom's Station Wagon
Posts: 27
Joined: Wed Mar 19, 2008 8:24 pm
Location: Indiana
Contact:

Post by cmoody2006 » Wed Apr 06, 2011 8:26 am

Throwing my .02 out there.... I made a set of solid steel motor mounts for my ka. They are rediculous for anything except track use. I dont recomend this at all unless your building a track car everything rattles and it will beat you up to drive. My friend has a ca18det he picked up that someone had made the diy tutorial version mounts with 2 separate bolts not one solid all the way through. He ripped both motor mounts in half and snapped the bolts in the rubber section of his driveshaft the other day... I like the puck design posted here gonna try that out sometime

User avatar
TinyT
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 3336
Joined: Thu Oct 12, 2006 5:55 am
Location: wisco

Post by TinyT » Wed Apr 06, 2011 8:37 am

cmoody2006 wrote:Throwing my .02 out there.... I made a set of solid steel motor mounts for my ka. They are rediculous for anything except track use. I dont recomend this at all unless your building a track car everything rattles and it will beat you up to drive. My friend has a ca18det he picked up that someone had made the diy tutorial version mounts with 2 separate bolts not one solid all the way through. He ripped both motor mounts in half and snapped the bolts in the rubber section of his driveshaft the other day... I like the puck design posted here gonna try that out sometime
turn up the idle and grow a pair

katrecipe
**BANNED**
Posts: 288
Joined: Sun Nov 23, 2008 6:50 pm
Location: B A N N E D

Post by katrecipe » Wed Apr 06, 2011 8:50 am

That's clever i am not to sure if it will last but cool to see different things being thought up thumbs up for trying new things :D
I was a moron and I got banned!
I was a moron and I got banned!
I was a moron and I got banned!
I was a moron and I got banned!
I was a moron and I got banned!
I was a moron and I got banned!

secondtonone317
In Our Memories - RIP
Posts: 156
Joined: Mon Oct 05, 2009 9:04 am
Location: Queens, NY
Contact:

Post by secondtonone317 » Wed Apr 06, 2011 9:15 am

Nice idea, lots of better options out there but whatever floats your boat.

User avatar
Aaj2k5
240sx Wannabe
Posts: 112
Joined: Mon Dec 29, 2008 10:39 am
Location: Ontario, Canada

Post by Aaj2k5 » Fri Apr 08, 2011 6:57 am

I'm sketching up something similar to double pucks like that but how are you keeping the countersunk bolt from turning while tightening..

And just have to make sure the external fasteners holding them together don't make contact with the mount bracket so that it will seat firmly.

je_decoy
Dreams of owning a 240!
Posts: 91
Joined: Sun Feb 20, 2011 7:16 pm
Location: NV-CO

Post by je_decoy » Sun Jun 12, 2011 4:20 pm

Aaj2k5 wrote:I'm sketching up something similar to double pucks like that but how are you keeping the countersunk bolt from turning while tightening..

And just have to make sure the external fasteners holding them together don't make contact with the mount bracket so that it will seat firmly.
did you ever figure the answer to this?

The Bouncer
Learners Permit
Posts: 16
Joined: Fri Mar 25, 2011 1:57 pm
Location: US
Contact:

Post by The Bouncer » Sat Jun 18, 2011 12:22 am

TinyT wrote:
eazye2000 wrote:Any updates on this? I'm curious to see how it came out.

I just had a buddy give me two solid pieces of steel with a hole in them for my new solid mounts. I'd like some feedback on this before I add 12 pounds of steel to my car. lol
your gonna hate your life
you will literally never want to use your car, i had solids in my car for a couple months and they put 3 cracks in my dash and vibrated almost everything loose, bolts have apeared in my floor board HATED THOSE THINGS
When life kicks you in the ass...punch it in the face

MRLuke
Dreams of owning a 240!
Posts: 67
Joined: Mon Jul 18, 2011 8:57 am
Location: Cambridge, UK

Post by MRLuke » Thu Jul 28, 2011 3:23 am

Bringing up this thread.

I want to solid mount my engine as the car is mostly used on track.

I have previously run a car with poly engine mounts and was completely unfazed by the increased vibration at idle and very impressed with how much tighter the car felt.

The question is I guess just how much worse are solid mounts compared to poly? Is it a vibration at idle situation or is my dash going to bounce an inch up and down all the time?

I have read that if you solid mount the engine then you should only poly mount the transmission otherwise you risk breaking the casing. Is this true for the Ka?

Thoughts from anybody who actually runs solid mounts would be awesome :)

Build Thread: viewtopic.php?t=53366

Preston
Dreams of owning a 240!
Posts: 89
Joined: Wed Jul 29, 2009 11:44 am
Location: Cokeburg, PA
Contact:

Post by Preston » Thu Jul 28, 2011 7:21 am

MRLuke wrote:Bringing up this thread.

I want to solid mount my engine as the car is mostly used on track.

I have previously run a car with poly engine mounts and was completely unfazed by the increased vibration at idle and very impressed with how much tighter the car felt.

The question is I guess just how much worse are solid mounts compared to poly? Is it a vibration at idle situation or is my dash going to bounce an inch up and down all the time?

I have read that if you solid mount the engine then you should only poly mount the transmission otherwise you risk breaking the casing. Is this true for the Ka?

Thoughts from anybody who actually runs solid mounts would be awesome :)
It's not that bad. I've been running Xcessives solid mounts for a year now no problems. It vibrates ALOT but nothing has fallen out or loosened up or broke. Your tach and speedo will bounce a little and anything plastic that isn't bolted (aka snap clipped in) will rattle but I have a stripped car so I have minimal plastic.

You can't beat the feel of immediate power transfer and I have had ppl at autocross think I'm an automatic from how fast and smooth I can grab gears.

MRLuke
Dreams of owning a 240!
Posts: 67
Joined: Mon Jul 18, 2011 8:57 am
Location: Cambridge, UK

Post by MRLuke » Thu Aug 11, 2011 1:31 pm

Not sure if id be better of starting my own thread...

I need to make some mounts up for my KA.

On the drivers (right hand) side I am a little tight for space so would like to do this:

Using these 3 bolts on the block

Mounting to this chassis plate (will be reinforced)


only problem is that the mounts will run at this angle


They are going to be made of 2" x 2" box section and solid mounted.

All input appreciated :)

Just realised the pictures arent great.. the chassis plate is right at the front of the engine and the mount would go to about the middle of the block.

Build Thread: viewtopic.php?t=53366

Post Reply
