Post by eazye2000 » Wed Jun 22, 2011 7:32 pm

Alonso wrote:Sorry its a one-off, for my own personal abuse only :twisted:
....abuse, or personal satisfaction? lol

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Wed Jun 22, 2011 8:29 pm

Well, both lol.
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Wed Jun 29, 2011 5:22 pm

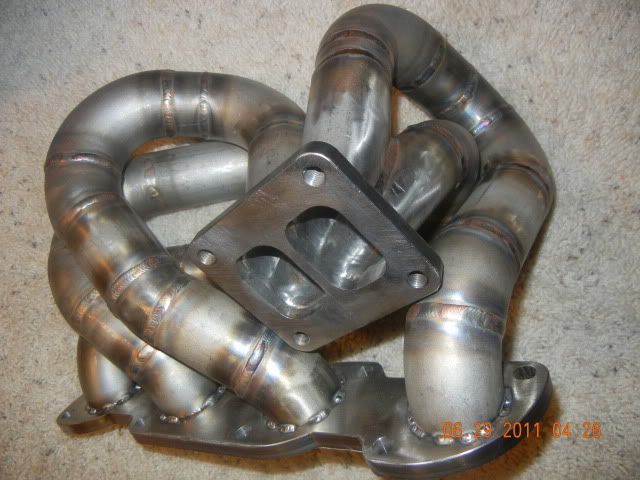

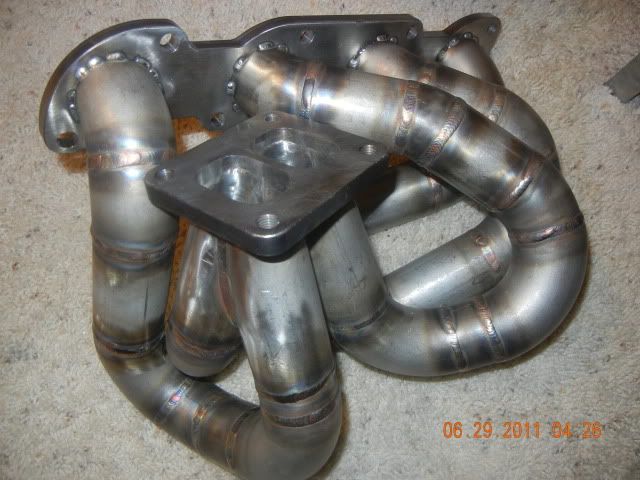

The last runner was finally welded to the collector!


Welding the last runner to the collector was a bit tough! Still managed to achieve 100% penetration though!

I have some 3/4" 6061 AL plate that's gonna get drilled and tapped so the head flange can be bolted down before welding the runners. That's on the to-do list along with punching a couple of holes in the collector for the wastegates.

I'm so ready to move on to other ****! Lol
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

Jackasknissan
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 1517
Joined: Thu Mar 29, 2007 5:27 pm
Location: Richmond, BC

Post by Jackasknissan » Thu Jun 30, 2011 12:47 am


I'm so ready to move on to other ****! Lol
i know the feeling....

i envy your seat time and experience for tig, how long have you been doing this?

looks solid

imo i would consider going heavier for your plate to stop the flng from warping

ive seen some stainless flanges pull pretty bad on marine stuff.

beautiful cratsmanship none the less
Turbo24sxt wrote:SOHC > DOHC ... period ...
oaznbeasto wrote: Hey 6 posts, Go **** yourself! learn something then post[/quote

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Fri Jul 01, 2011 8:38 pm

I've been doing tig for roughly 3-3.5yrs? That includes school. It would've been longer if it wasn't for the **** economy :roll:

The flanges are hot rold steel. They won't pull as much as SS, but I've seen how bad they can get if welded without being bolted down lol...
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

PinkNinja
Driving Mom's Station Wagon
Posts: 31
Joined: Fri Nov 02, 2007 3:27 pm
Location: Ontario, Canada

Post by PinkNinja » Sat Jul 02, 2011 11:04 am

If you can. Just torque it to a KA head. SS can warp pretty gnarly if it's not welded correctly.

Mild steel can still warp just as bad. Just allow for lots of cooling time.

I feel your pain with the economy. I've been welding 8-9 years. Went to college for welding 3-4 years ago. Graduated 2 months before the recession.
Now I'm so sick of it I'm back in school doing something completely unrelated to the industry.

User avatar
TinyT
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 3336
Joined: Thu Oct 12, 2006 5:55 am
Location: wisco

Post by TinyT » Sat Jul 02, 2011 3:47 pm

Lol @ welders pointing out the blatantly obvious to each other. Oh head flanges can warp when you weld them? get outta here! you crazy.

PinkNinja
Driving Mom's Station Wagon
Posts: 31
Joined: Fri Nov 02, 2007 3:27 pm
Location: Ontario, Canada

Post by PinkNinja » Sat Jul 02, 2011 6:49 pm

^oh look. You're a dick on here just like HT.

User avatar
eazye2000
Encyclopedia-Nissan
Posts: 1358
Joined: Tue Jan 16, 2007 4:32 am
Location: Inverness, FL
Contact:

Post by eazye2000 » Sat Jul 02, 2011 7:40 pm

PinkNinja wrote:^oh look. You're a dick on here just like HT.
Um, yeah.... But he's OUR dick...

And damn you Tiny for cheating on us on other forums. I thought you were only a dick here? lol

/threadjack

This thing is killer. I would like to sell my Full Race and get yours!

User avatar
TinyT
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 3336
Joined: Thu Oct 12, 2006 5:55 am
Location: wisco

Post by TinyT » Sun Jul 03, 2011 10:04 am

PinkNinja wrote:^oh look. You're a dick on here just like HT.
oh you lock it up.

eazye- yes im a cheating whore and i spread my worthless asshole comments all around.

alonso- **** looks proper!

Jackasknissan
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 1517
Joined: Thu Mar 29, 2007 5:27 pm
Location: Richmond, BC

Post by Jackasknissan » Sun Jul 03, 2011 9:23 pm

TinyT wrote:Lol @ welders pointing out the blatantly obvious to each other. Oh head flanges can warp when you weld them? get outta here! you crazy.
actually a machinist,, just do a fair bit of tiggin when it counts for buildup( cast, brass,stainless, impacto
and jigs/ fixtures. of course

alonso, get the manifold done yet ?
Turbo24sxt wrote:SOHC > DOHC ... period ...
oaznbeasto wrote: Hey 6 posts, Go **** yourself! learn something then post[/quote

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Fri Jul 08, 2011 12:29 pm

I wished I was done lol. Getting closer little by little...

Here's where I'm at now...
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

User avatar
airman
KA-T.org OWNER
Posts: 2137
Joined: Tue Jun 16, 2009 12:51 pm
Location: Anderson, SC

Post by airman » Sat Jul 09, 2011 1:44 pm

My God. Gorgeous

187MotorSports
240sx Wannabe
Posts: 139
Joined: Tue Jul 06, 2010 6:00 pm

Post by 187MotorSports » Sat Jul 09, 2011 8:24 pm

Sick work, I feel dumb now questioning your welds on the Intake manifold i bought from ya. :shock:

User avatar
O&Jperformance
KA-T.org Sponsor
KA-T.org Sponsor
Posts: 620
Joined: Mon Oct 30, 2006 8:41 pm
Location: Central Florida
Contact:

Post by O&Jperformance » Tue Jul 12, 2011 7:38 pm

Really good work and believe I being around fabricators a looooong time I like what you have done so far.
http://www.ojperformance.com/ Tel-407-944-0064
Performance Parts,Turbocharger,Chassis and much more
Instagram O&J Performance
Facebook O&J Performance
Twitter O&J Performance

User avatar
supakat
SuperMod
Posts: 8017
Joined: Sun Oct 08, 2006 12:13 pm
Location: FL

Post by supakat » Tue Jul 12, 2011 7:44 pm

187MotorSports wrote:Sick work, I feel dumb now questioning your welds on the Intake manifold i bought from ya. :shock:
LOL. Yea this is sick and deep penetration. LOL
12.96 @ 116.36 - 2.1 60ft - 11/2011
13.1 @ 114 - 2.3 60ft - 8/2012
KA24DE-T
Build thread/Blog
YouTube Channel

Bubba
Knows Some Stuff About 240's!
Posts: 359
Joined: Sun Oct 08, 2006 9:06 pm
Location: Biloxi, MS
Contact:

Post by Bubba » Wed Jul 20, 2011 9:34 am

I'll be signing up for a welding class locally in hopes of one day building something half as nasty as this beast you've brought into this world. I'll never run a T4 on my engine and I'm still jealous of this manifold. One day...

Time to start hanging with all of the old skool fabricators and welders in my area. I'm bound to find someone willing to show me some tricks that will help me out.
My car is dead stock.... ish

http://mobileimports.freeforums.org

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Tue Aug 23, 2011 4:34 pm

Teaser...

Inconel 625 3" to 4" transition welded to Stainless V-band flange, Inconel 625 filler rod :wink:
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

User avatar
sdaigle240
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 4670
Joined: Wed Oct 17, 2007 9:53 am
Location: CONN.

Post by sdaigle240 » Tue Aug 23, 2011 6:29 pm

Your a machine!
airman wrote:I'm all about spreadsheets. Bitches love spreadsheets.
schmauster920 wrote:I shall cast my own pistons in the sands of time, then forge them in the depths of hell.. as funds allow
hy35 18psi Build Thread: viewtopic.php?t=38784
RIP MJL best friend of 20 years and the man who showed me 240s

User avatar
sicks13
Dont Question My Nissan Knowledge
Posts: 607
Joined: Wed Oct 11, 2006 12:56 pm
Location: W.N.C

Post by sicks13 » Wed Aug 24, 2011 9:21 am

You should take a welding class... :lol:

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Wed Aug 24, 2011 4:45 pm

sicks13 wrote:You should take a welding class... :lol:
I'd school everybody there including the instructor lol

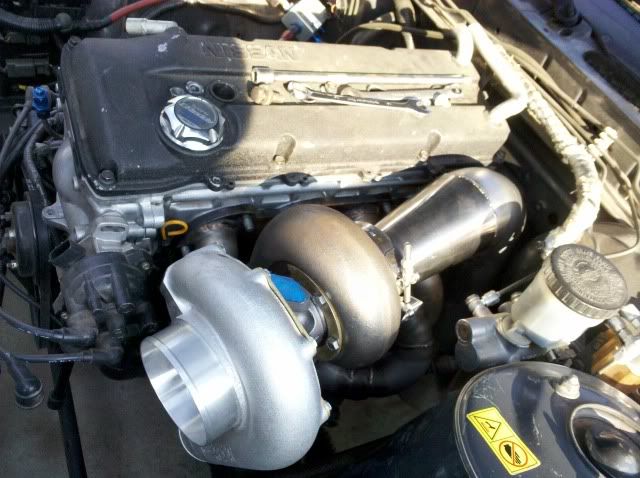

Test fitted the 4" downpipe today, not fully welded yet-

Hopefully I have a chance this weekend to upload more pics and get this thread caught up.
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

User avatar
superDorifto
Dont Question My Nissan Knowledge
Posts: 504
Joined: Tue Oct 11, 2005 6:58 pm

Post by superDorifto » Wed Aug 24, 2011 8:25 pm

Alonso wrote:Teaser...

Inconel 625 3" to 4" transition welded to Stainless V-band flange, Inconel 625 filler rod :wink:
We make a lot of our jet engine parts out Inco 625, not that common on cars, but if I had a "nickel"....haha

whatever lame joke,... I know.

You shoulda went baller and went Inco 718 or straight Waspalloy or MP159.

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Sat Aug 27, 2011 7:57 pm

Originally 718 was going to be used, but 625 is stronger and rated for higher temps.
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Sun Aug 28, 2011 12:14 am

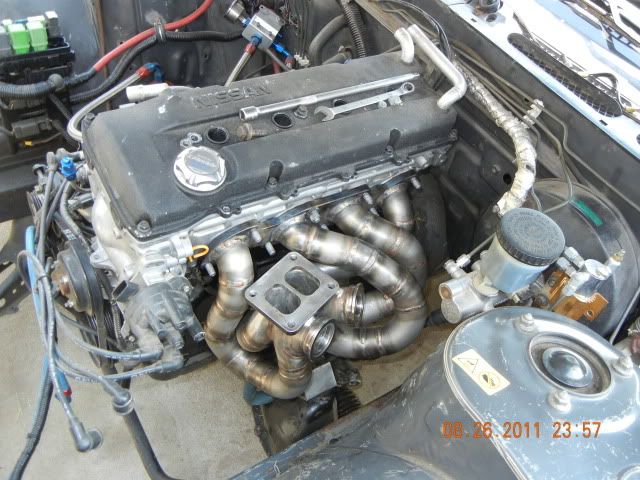

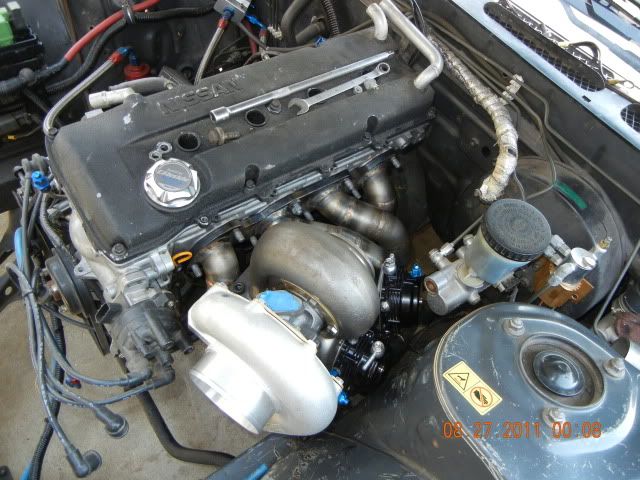

Alright, picture time! I'll be picking up (kinda) where I left off

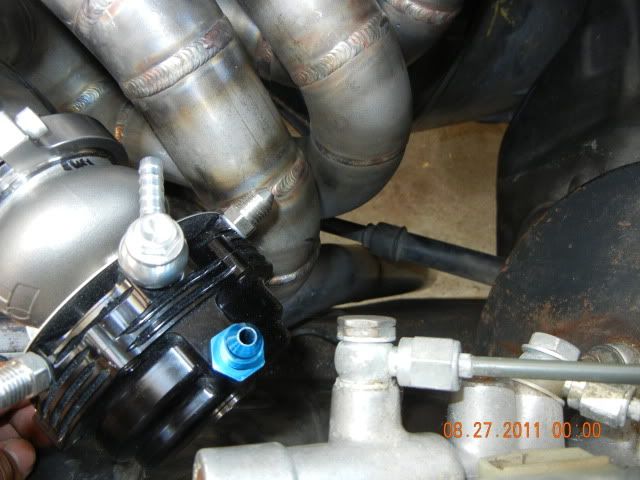

Holes for WG ready

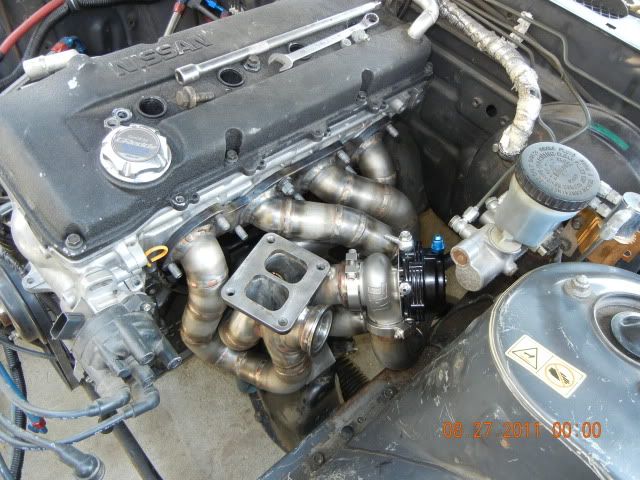

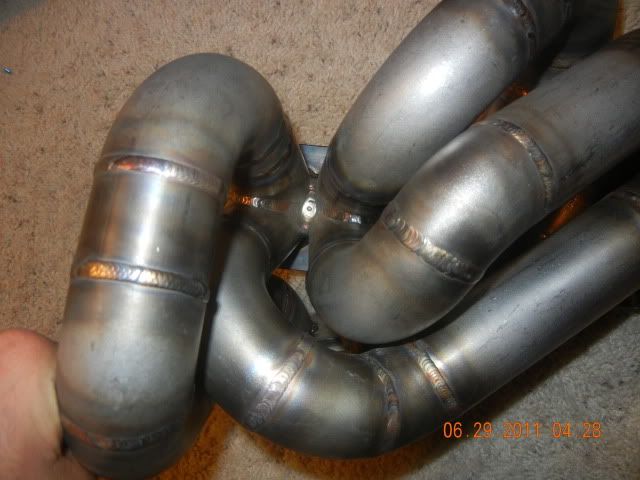

FFwd to now, manifold is fully welded

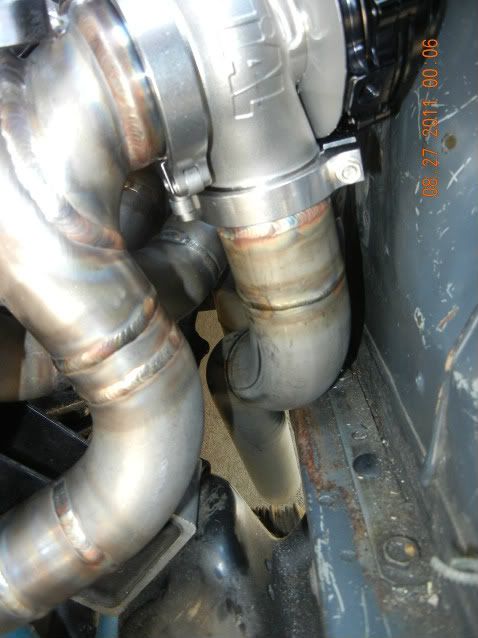

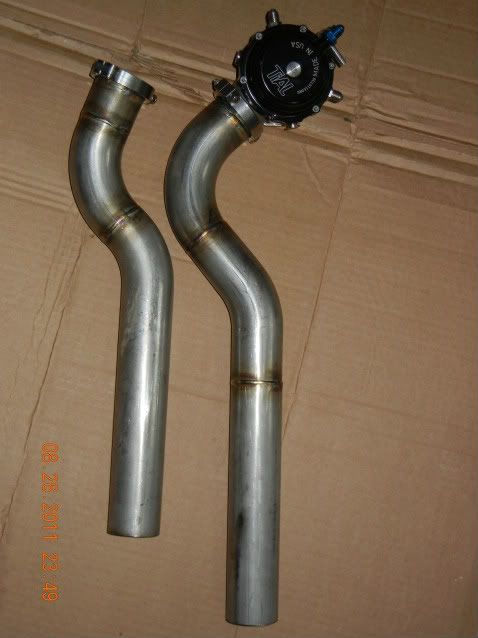

FWD and AFT WG Dumptubes. They are 2.000dia x .035wall 321 Stainless.

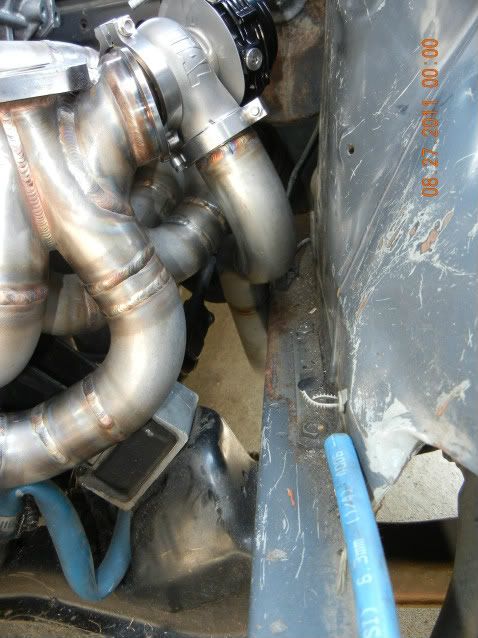

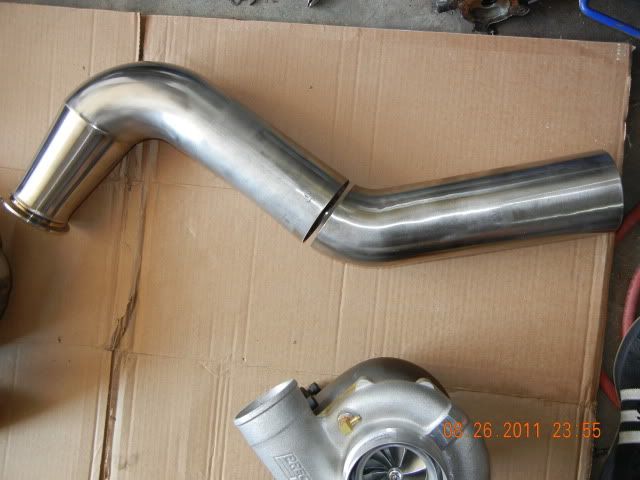

Downpipe, still work in progress... 4.000dia x .028wall Inconel 625.
Transition is spun Inconel 625, 3" to 4" dia, .035 wall nominal

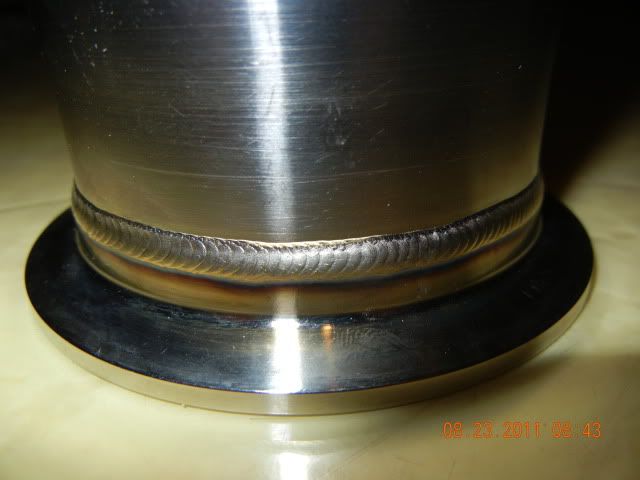

Weld on SS Vibrant Vband flange to transition, Inconel 625 filler rod

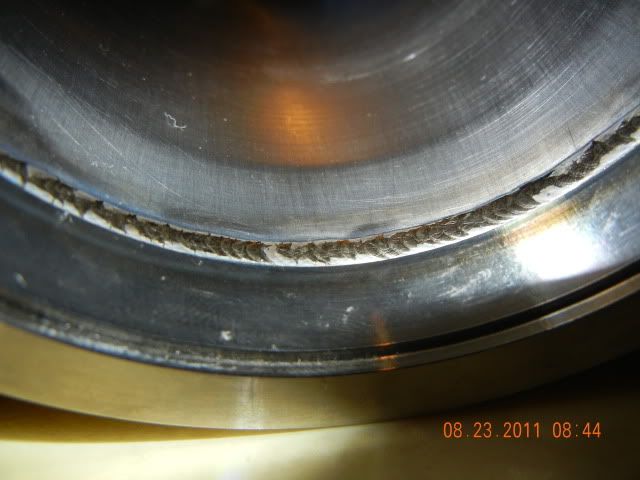

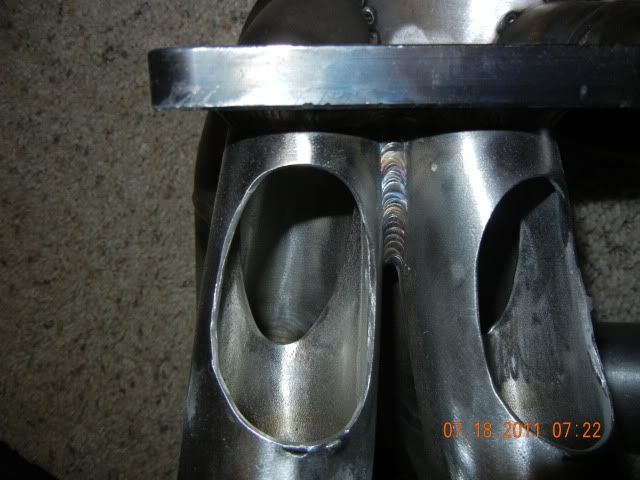

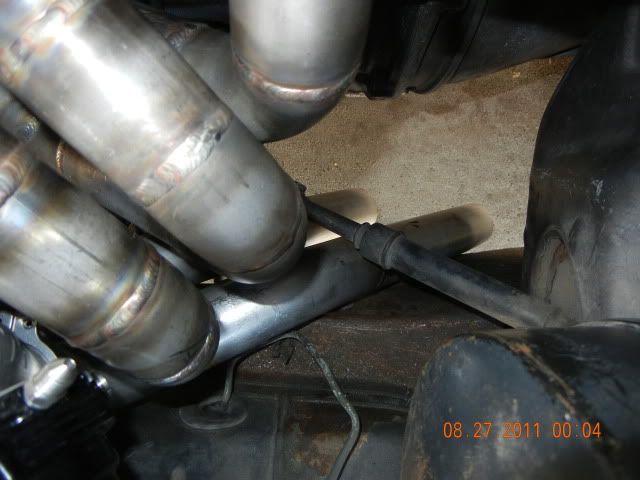

Penetration

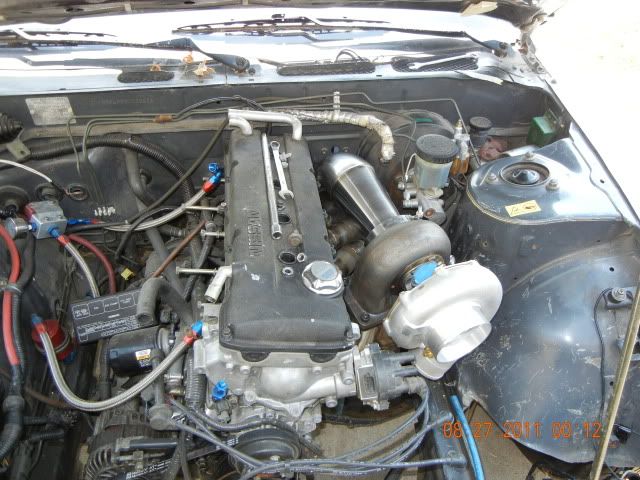

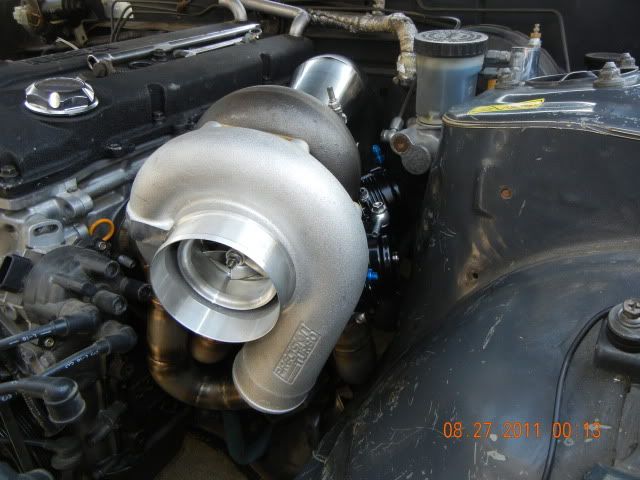

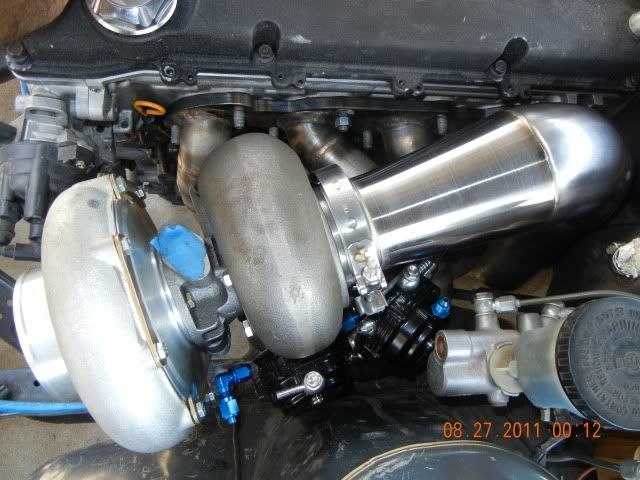

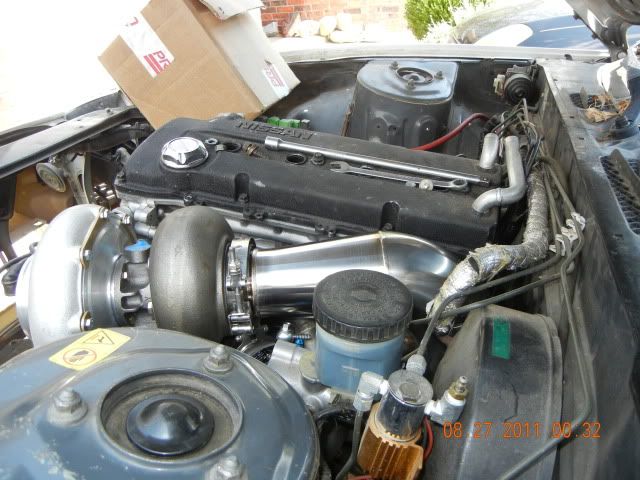

As you can see by the following pics, even without AC and PS it get crowded fairly quick :shock:

That's where the project currently stands. The downpipe will be made to follow the contour of the firewall, under the car it will get SS vbands throughout and after the flex bellows the material will switch to 321 stainless 4.000dia x .028wall tubing for the rest of the exhaust system.

FACK I still have a lot of work ahead of me lol :x
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

User avatar
supakat
SuperMod
Posts: 8017
Joined: Sun Oct 08, 2006 12:13 pm
Location: FL

Post by supakat » Sun Aug 28, 2011 5:53 am

Awesome job. That setup is gorgeous. Are you going to make an intake as well?
12.96 @ 116.36 - 2.1 60ft - 11/2011
13.1 @ 114 - 2.3 60ft - 8/2012
KA24DE-T
Build thread/Blog
YouTube Channel

User avatar
superDorifto
Dont Question My Nissan Knowledge
Posts: 504
Joined: Tue Oct 11, 2005 6:58 pm

Post by superDorifto » Sun Aug 28, 2011 1:40 pm

Alonso wrote:Originally 718 was going to be used, but 625 is stronger and rated for higher temps.
yes and no, 625 is a bit more ductile, but 718 has a higher ultimate strength, but 625 can handle thermal stresses much better. They are both rated for ~1200 deg F continuous operation, we use them pretty much interchangeably on our stuff...if the structural analysis shows the part failing to meet full life, a material swap to 718 usually fixes the issue - and adds a ton of weight.



- but either way the set up looks pretty impressive, when Im done with my SC build def want to go a similar route.

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Sun Aug 28, 2011 7:48 pm

I did some research on their properties, from what I gathered Inc625 seemed like the best choice for this application. I believe I saw somewhere that 625 would take 1600*F no problem compared to 718 only being good to 1300*F. Also 625 is easily welded to dissimilar metals, 718 I was unsure about and couldn't find anything to confirm that it could be.

I too think either would have been fine, its only gonna be a street/strip beast running on e85 not a JSF F-35 :lol:
supakat wrote:Awesome job. That setup is gorgeous. Are you going to make an intake as well?


That's the plan. I haven't sat down and designed anything yet although I do have some ideas floating in my mind. I was told if I designed parts using CATIA V5, like the intake mani head flange for example, we can get them machined in house 8)
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

User avatar
supakat
SuperMod
Posts: 8017
Joined: Sun Oct 08, 2006 12:13 pm
Location: FL

Post by supakat » Sun Aug 28, 2011 7:52 pm

Nice. Great to have technology readily available.
12.96 @ 116.36 - 2.1 60ft - 11/2011
13.1 @ 114 - 2.3 60ft - 8/2012
KA24DE-T
Build thread/Blog
YouTube Channel

User avatar
superDorifto
Dont Question My Nissan Knowledge
Posts: 504
Joined: Tue Oct 11, 2005 6:58 pm

Post by superDorifto » Wed Aug 31, 2011 7:33 am

Alonso wrote:I did some research on their properties, from what I gathered Inc625 seemed like the best choice for this application. I believe I saw somewhere that 625 would take 1600*F no problem compared to 718 only being good to 1300*F. Also 625 is easily welded to dissimilar metals, 718 I was unsure about and couldn't find anything to confirm that it could be.

I too think either would have been fine, its only gonna be a street/strip beast running on e85 not a JSF F-35 :lol:
supakat wrote:Awesome job. That setup is gorgeous. Are you going to make an intake as well?


That's the plan. I haven't sat down and designed anything yet although I do have some ideas floating in my mind. I was told if I designed parts using CATIA V5, like the intake mani head flange for example, we can get them machined in house 8)
agree'd, as soon as read that you were using inco for the DP, I was like, "oh a proper build."

I've been helping with some design work on the Lightning, and EVERYTHING is inco....the tubes, the brackets, the bolts...its actually pretty awesome.

blacks13coupe
Dont Question My Nissan Knowledge
Posts: 561
Joined: Fri Oct 10, 2008 10:06 am
Location: Fort Worth TX

Post by blacks13coupe » Wed Aug 31, 2011 10:20 am

This setup looks awesome, very nice manifold. My only concern is the very tight tolerances between the piping and the strut tower / steering shaft, might cause issues when the motor torques. But it is hard to get a good idea from just the pictures.

Post Reply
