Post by Alonso » Wed Aug 31, 2011 4:12 pm

Yea the pics make it look worse than it really is. I have Uras motors installed that are pretty damn stiff.

If all else fails, I always have the BFH on standby lol
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

User avatar
airman
KA-T.org OWNER
Posts: 2137
Joined: Tue Jun 16, 2009 12:51 pm
Location: Anderson, SC

Post by airman » Thu Sep 01, 2011 11:08 am

R.I.P. 1990 Red Hatch - DOHC 5 speed // CP 9:1 - Eagle Rods - Clevite - ARP // Holset HX35 - 20psi daily - MSPNP2
8-bit wrote:You could spend your life building a ladder to the moon, or work for 5 years to pay for a trip.

User avatar
supakat
SuperMod
Posts: 8017
Joined: Sun Oct 08, 2006 12:13 pm
Location: FL

Post by supakat » Thu Sep 01, 2011 11:36 am

Alonso wrote: If all else fails, I always have the BFH on standby lol
12.96 @ 116.36 - 2.1 60ft - 11/2011
13.1 @ 114 - 2.3 60ft - 8/2012
KA24DE-T
Build thread/Blog
YouTube Channel

je_decoy
Dreams of owning a 240!
Posts: 91
Joined: Sun Feb 20, 2011 7:16 pm
Location: NV-CO

Post by je_decoy » Thu Sep 01, 2011 11:32 pm

^^ good night that hammers an anvil haha. it looks like you put it in the right spot. Mine was a little to close and got a whompping from the guy in the previous post haha :bash: . good work for all the time and effort .

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Sun Sep 04, 2011 4:55 pm

here are better pics of the manifold by itself
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

DC47A
240sx Wannabe
Posts: 103
Joined: Tue Sep 06, 2011 1:46 pm

Post by DC47A » Wed Oct 19, 2011 2:05 pm

From one fabricator to another very nice job sir!

User avatar
Aaj2k5
240sx Wannabe
Posts: 112
Joined: Mon Dec 29, 2008 10:39 am
Location: Ontario, Canada

Post by Aaj2k5 » Mon Dec 12, 2011 2:07 pm

I can make up a intake mani head flange in Solidworks and send you it in any format you want (step, catia (cgr), iges etc) n if afterwards you wanted to mill me a prototype one for cost of material/your troubles that'd be wicked :D

Manifold is sick btw. I'm looking into similar but running a single 44 MVR.
1973 Datsun 240Z KA24DET
Build Thread:viewtopic.php?t=52102&start=0&postdays= ... highlight=

User avatar
TanManS14
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 2764
Joined: Wed Apr 26, 2006 7:28 pm
Location: Raleigh, NC

Post by TanManS14 » Wed Dec 14, 2011 2:28 am

Turn table used on the inconel? Either way turn table or not that's consistent as hell. Great looking manifold. And 25-45 cfm? WIth that long on each runner? Looks like ima be strangling the air gas guy with my eyes while i refill my tank.
It's always broken.

User avatar
turbonola
Encyclopedia-Nissan
Posts: 1234
Joined: Sat Oct 22, 2005 6:07 pm
Location: Metairie, La.
Contact:

Post by turbonola » Wed Dec 14, 2011 12:58 pm

one question, why dont more people go bottom mount like ams? i know its harder to get to and work on but keeping the center of gravity low sounds good. when i get my mani built i'm gonna go for a bottom mount. i'm top mount now and it makes things alot easier but they're building a track out here in nola and i'm gonna wanna run on it. the top mount wont stop me but for handling purposes would bottom mount be better?
11.65@118 1.64 60ft

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Wed Dec 14, 2011 7:53 pm

DC47A - Thanks! You're not too bad yourself!

Aaj2k5 - I haven't made it to the intake manifold yet, but I'll keep that in mind...

TanManS14 - Yes it was done on the turntable. I try to use it whenever possible. I ran 35cfh on the torch, I don't remember exactly how much was used for purging, depends on what was being welded. Overall, a massive amount of argon was used...

Turbonola - you just about covered all the reasons why I went with a top mount setup. It also helps with the oil drain and looks baller as hell with the hood open. I wouldn't be to worried about the location of the turbo. Either way its heavy as ***** and bolted to the engine.

Progress with the car has been super slow with the arrival of my daughter (baby #3 :shock: )
After one failed attempt at making an end tank for the intercooler core and going back to the drawing board (literally), progress is being made once again.
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

User avatar
supakat
SuperMod
Posts: 8017
Joined: Sun Oct 08, 2006 12:13 pm
Location: FL

Post by supakat » Wed Dec 14, 2011 9:29 pm

Congrats on the new born!
12.96 @ 116.36 - 2.1 60ft - 11/2011
13.1 @ 114 - 2.3 60ft - 8/2012
KA24DE-T
Build thread/Blog
YouTube Channel

User avatar
nismoautoxr
Encyclopedia-Nissan
Posts: 1153
Joined: Mon Jun 23, 2008 8:16 am
Location: Leeds,Alabama
Contact:

Post by nismoautoxr » Thu Dec 15, 2011 6:43 am

fantastic stuff. I have always aspired to make welds that look a fraction of that good. I just dont do it enough to be any good at it . I can make a strong weld in a non critical application but the right angle grinder is sure to follow for cosmetics :wink:
Ricky Ragan,
95 SE ,LS1 N/A and T56, 230/232 @.050 cam, MS3 with MS3X,GC coilovers,17x8.5 Enkei RPF1 on 255 40 17 RS3 Hankooks, 377HP/351TQ , megasquirt3 fully sequential

c_mancuyas8
Knows Some Stuff About 240's!
Posts: 311
Joined: Mon Jan 31, 2011 8:44 pm
Location: Greenwood SC / Nashville Tn

Post by c_mancuyas8 » Tue Dec 20, 2011 1:51 am

That manifold came out beautiful! I cant wait to see the rest of your work!

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Wed Dec 21, 2011 10:02 pm

Supakat- thank you! I almost forgot what it was like to have a newborn in the house! She's so freakin adorable tho!

Nismoautoxr- doing it for a living really has helped develop my skills tremendously. Along with the type of work I do (close tolerance/aerospace) and all the different weld specifications my work has to meet/exceed, I don't have much of a choice lol. Pride has something to do with it also but I do have my moments from time to time...

C_mancuyas8- thanks! Ill keep posting pics as progress is being made.
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

User avatar
TanManS14
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 2764
Joined: Wed Apr 26, 2006 7:28 pm
Location: Raleigh, NC

Post by TanManS14 » Thu Jan 05, 2012 9:48 am

The angle looks really spot on for the wastegate elbow's coming off the collector, but was there a reason why it wasnt ported out completely?
It's always broken.

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Wed Jan 25, 2012 2:54 pm

They are fully ported. Are you looking at where the 2 pipes merge on the inside?

Sorry for the late response...
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

User avatar
TanManS14
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 2764
Joined: Wed Apr 26, 2006 7:28 pm
Location: Raleigh, NC

Post by TanManS14 » Tue Jan 31, 2012 11:24 am

Ahhhh ok, i see it now, it looked like the backside of the pipe but it was just the merge i was seein. What's the status on this thing?
It's always broken.

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Mon Feb 13, 2012 1:33 pm

Haven't made any progress. Trying to take care of some debt and last night I wrecked my G35 sedan...nobody got hurt but now I have more bs to deal with.
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

smbonn2005
Knows Some Stuff About 240's!
Posts: 469
Joined: Wed Feb 03, 2010 6:06 pm
Location: Milford, MA

Post by smbonn2005 » Mon Feb 13, 2012 1:46 pm

Damn that sucks man, glad everyone is ok

User avatar
supakat
SuperMod
Posts: 8017
Joined: Sun Oct 08, 2006 12:13 pm
Location: FL

Post by supakat » Mon Feb 13, 2012 1:49 pm

D@mn. Just take it easy and I will take a drink for you.
12.96 @ 116.36 - 2.1 60ft - 11/2011
13.1 @ 114 - 2.3 60ft - 8/2012
KA24DE-T
Build thread/Blog
YouTube Channel

User avatar
schmauster920
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 2612
Joined: Tue Feb 20, 2007 5:25 pm
Location: CA

Post by schmauster920 » Mon Feb 13, 2012 2:07 pm

Ill have one for you too! Sucks to hear, but glad everything is ok.


Time to salvage what you can and do a VQ35DE swap
D21, Built KA24DE, 740cc, T4, WeatherGuard Tool Box, Tial 40mm, Megasquirt 3 in progress

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Tue Feb 21, 2012 9:33 pm

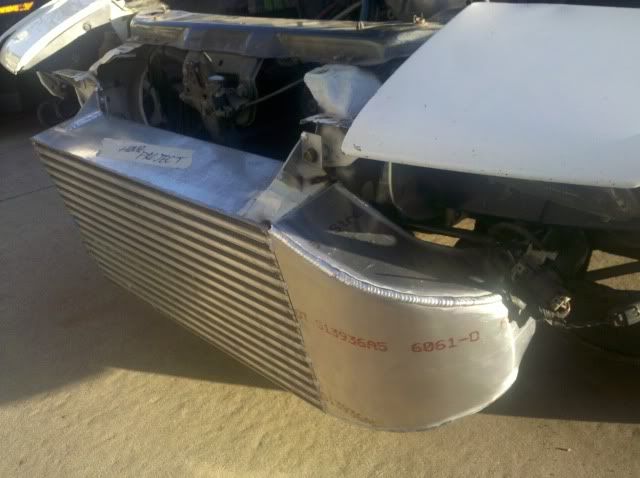

I thought it was time to start making progress again...

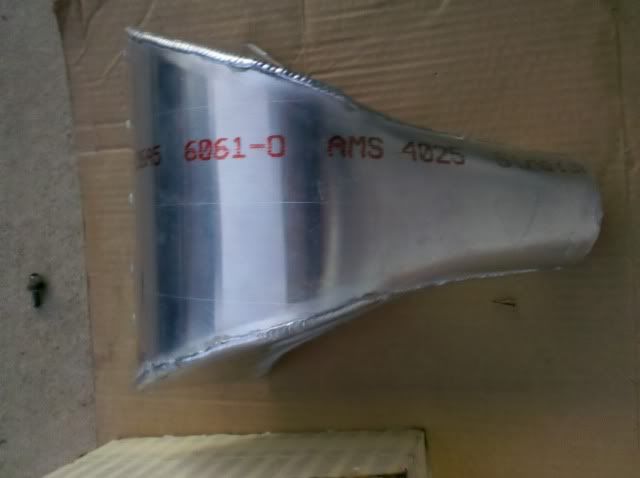

Aluminum 3in tube to ebay/pegasus wiggins type ferrule

The tube will be welded to this.

The end tank was made late last year. It hasnt been welded to the core because its still in "o" condition. Once the other end tank is finished, they'll be heat treated to T6 condition along with the plenum ill be starting soon...
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Sun Feb 26, 2012 12:46 am

Well i finally found a replacement for the G35...

2008 G35x with 21.5k mi :D
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

User avatar
all shal perrish
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 2824
Joined: Sun Oct 22, 2006 11:01 am
Location: liberty lake washington
Contact:

Post by all shal perrish » Sun Feb 26, 2012 9:28 am

SICK TITS dude.. new dd looks clean as hell, how do you like it compared to the g35?
www.autovaughnperformance.com


NISTUNE EXCELLENT TUNING AT AN EXCELLENT PRICE (pm with questions regarding)


I AM ON THE HUNT FOR JWT CAM GEARS..
if you have some, pm me

User avatar
TanManS14
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 2764
Joined: Wed Apr 26, 2006 7:28 pm
Location: Raleigh, NC

Post by TanManS14 » Sun Feb 26, 2012 11:33 am

God i want a g35 for a dd. They go for such decent prices too. Have you seen a decent amount of success with the Pegasus clamps? Is that the 3.5 thick inter cooler?

Can you explain what you're doing to the 6061? I assume some type of quenching, just wondering how quickly you have to quench the area after welding/ how much strength you gain from it.
It's always broken.

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Sun Feb 26, 2012 7:13 pm

The v36 is waaaay nicer overall then the v35. Infiniti did a great job redesigning the g35. You can definitely feel the extra weight upfront of the awd system. I absolutely love it!

This is my first time running the pegasus clamps. I read good things about them on yellow bullet so i figured id try them out. They have some type of coating that needs to be removed before any welding is performed...

The intercooler measures 24x12x4.5.

I personally will not be doing the heat treating. After heat treat, the whole part should be as strong as steel. Even the rod used(4043) is heat treatable.
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

Niclas_AB
Knows Some Stuff About 240's!
Posts: 365
Joined: Tue Sep 05, 2006 10:29 am
Location: SWEDEN

Post by Niclas_AB » Mon Feb 27, 2012 2:17 am

I have to ask if you did something special to manage to fit a 4 inch downpipe? I don´t think I can manage to fit more than 3,5 inch and even then it might rattle against the steering"don't know the name" thing? :)
I do know that the steering thing is a little bit thicker in my 200sx than a 240sx but it can't make that big of a difference?

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Mon Feb 27, 2012 9:05 pm

Nope didnt modify anything steering wise.

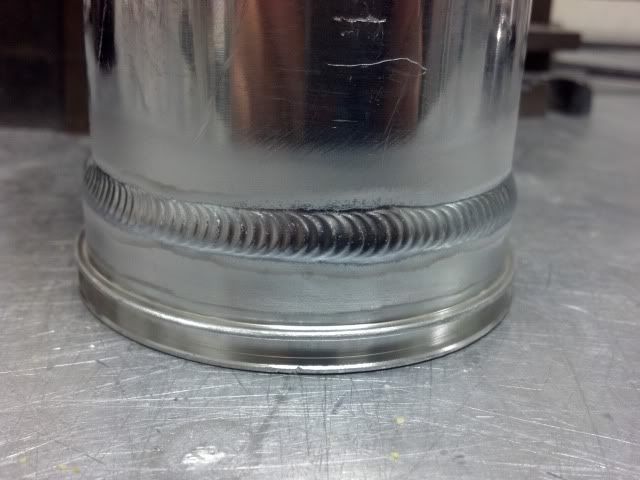

Welded a ferrule to the compressor housing today-
for being an ebay part they weld nicely :wink:
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240

User avatar
TanManS14
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 2764
Joined: Wed Apr 26, 2006 7:28 pm
Location: Raleigh, NC

Post by TanManS14 » Thu Mar 01, 2012 2:02 pm

Welds on the compressor are hawt. The pegasis clamps are dope lookin, plus tool-less intercooler clamps= awesome. Idk why all their **** has that coating. i did a mild steel vband that i wire wheeled and the coating did not want to come off, welded really weird.

Damn, went with the biggen, the 4.5 core used to be cheaper than the 3.5 thick because of demand i guess. But now i can only find it for $480, where did you gget yours from?
It's always broken.

User avatar
Alonso
Dont Question My Nissan Knowledge
Posts: 750
Joined: Tue Jun 16, 2009 3:16 pm
Location: Wichita,KS

Post by Alonso » Thu Mar 01, 2012 7:30 pm

I got the core from here

http://wideopentuning.com/index.php?mai ... 20a&page=2

Id never heard of them before the purchase but they're legit. The package actually shipped straight from ATPTurbo...whatever works...

My biggest concern was fitting the damn thing behind the stock bassmouth bumper! It BARELY fits...

On and today the end tank was dropped off for heat treat/age. Once it comes back it'll go to chem clean to get etched and deoxed :D
Billet PTE 6765 divided T4, Nismotronic, Speed density, Coil on plug conversion.

AWS D17.1 certified ;)
Follow me on Instagram: @alonso240
