AMMFAB picture thread

Post by ammfab » Fri Feb 15, 2013 1:06 am

ok so some people suggested i start a thread in here and i finally got the time to do it so here it..... ill put pics up of things from here on out mostly unless i get bored and feel like posting some pics of older stuff. ill start with the head i did for sil-coupe followed by some subie heads i just did....

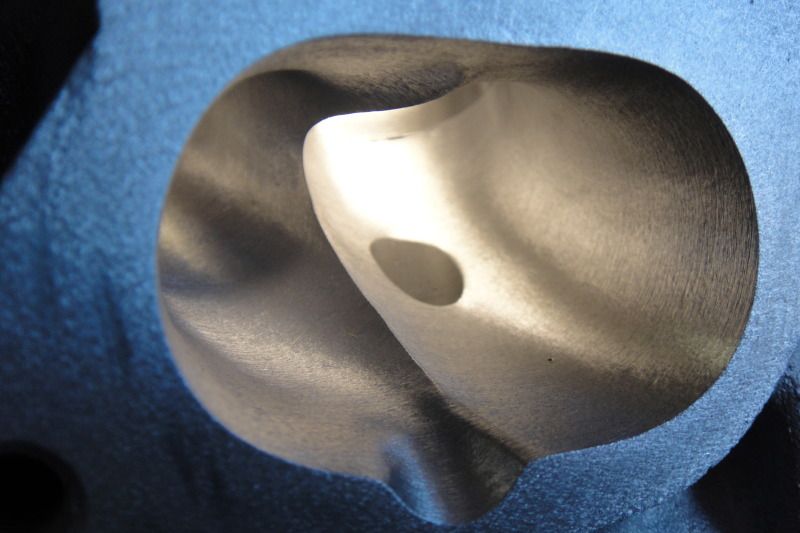

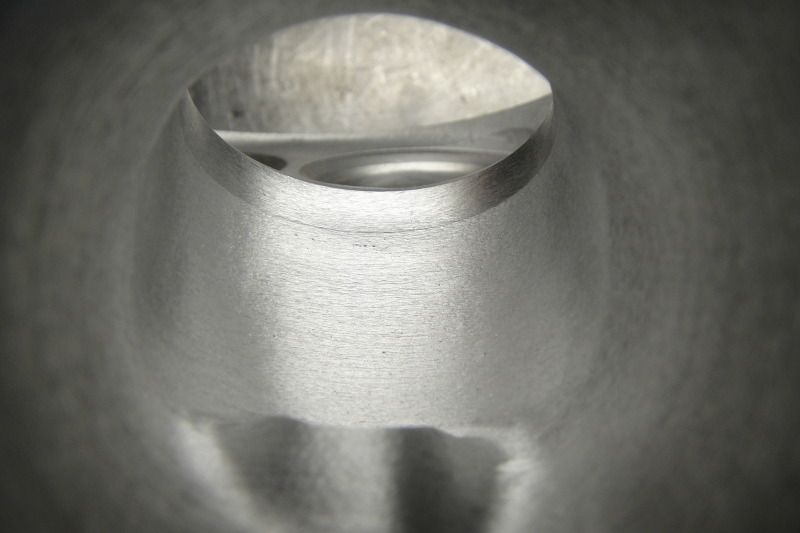

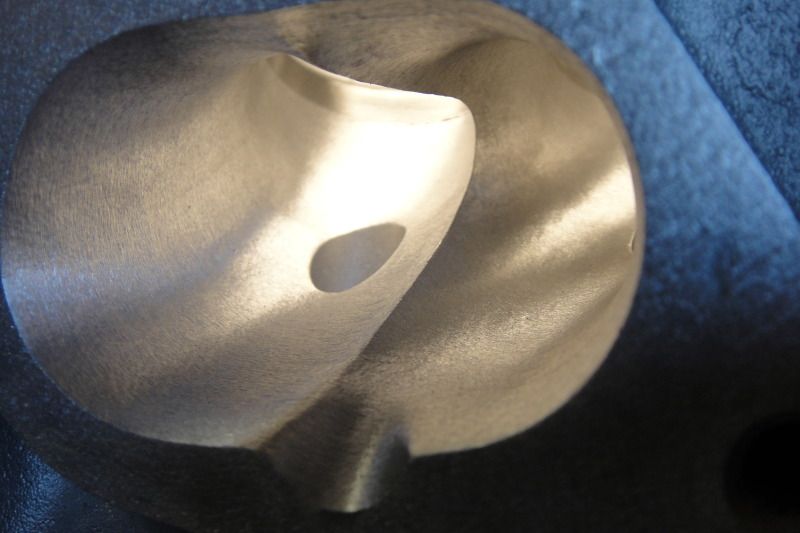

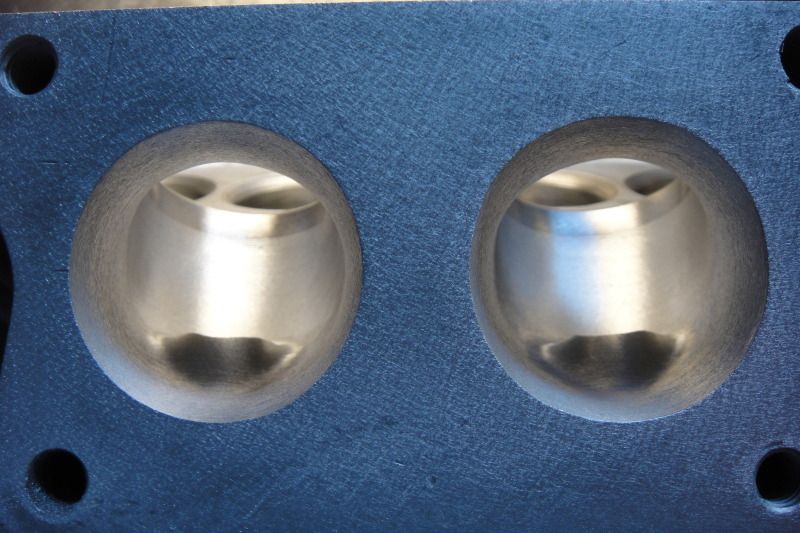

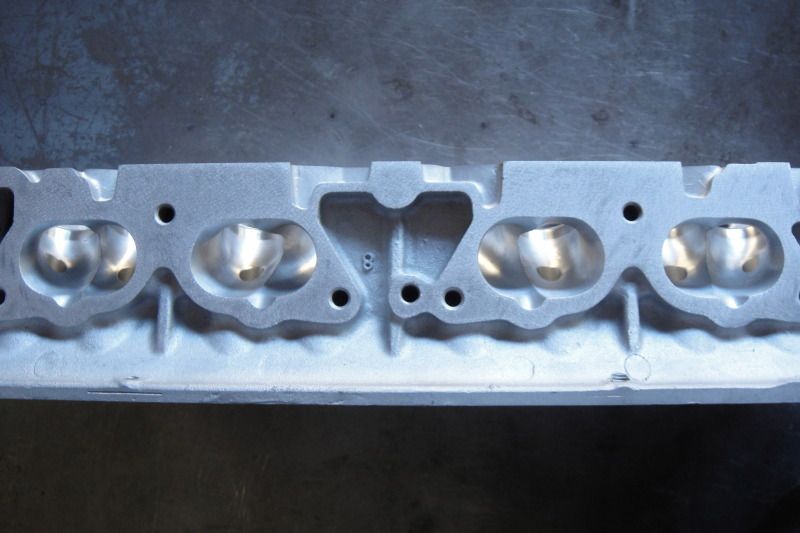

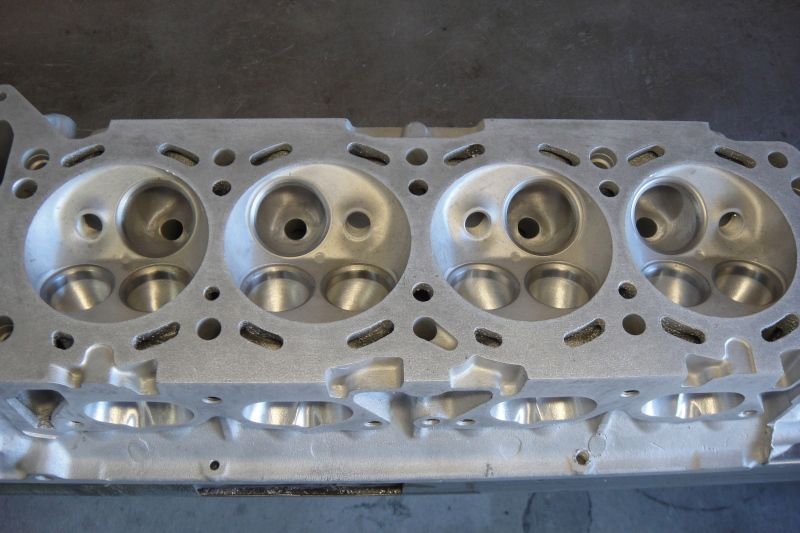

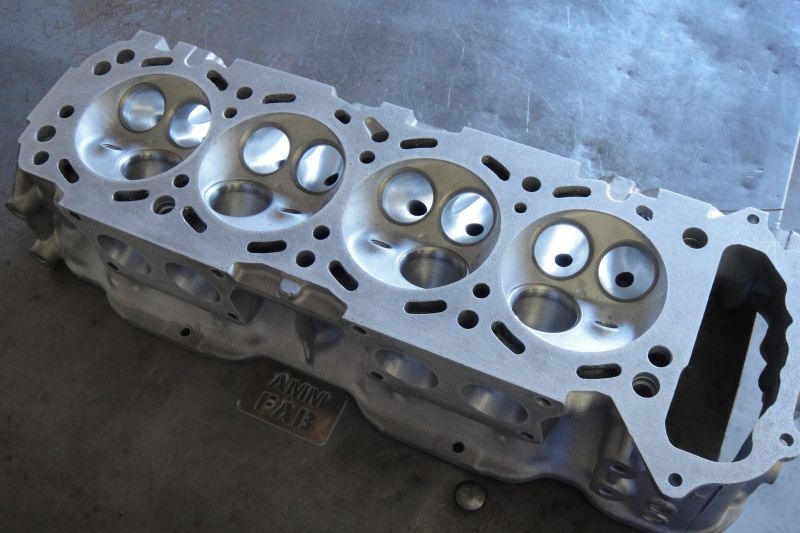

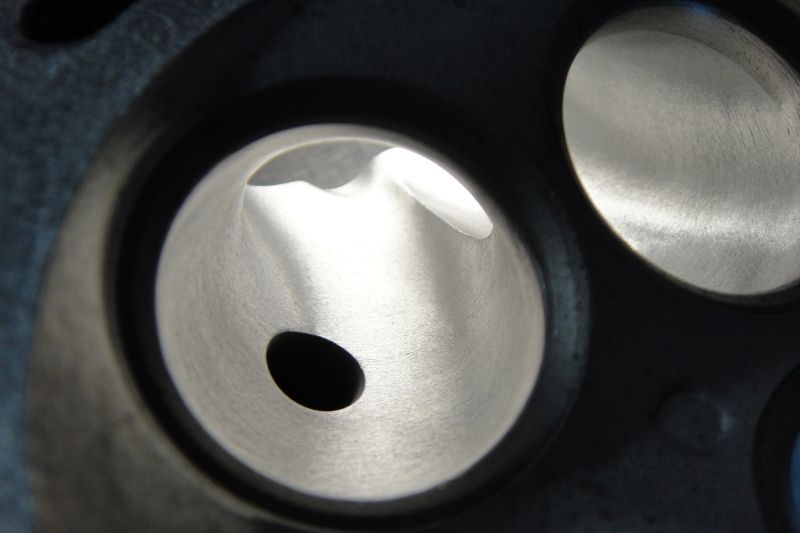

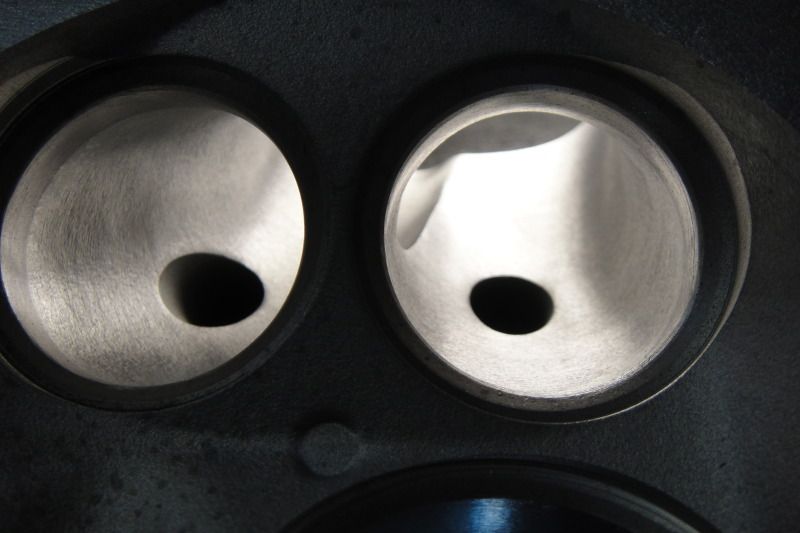

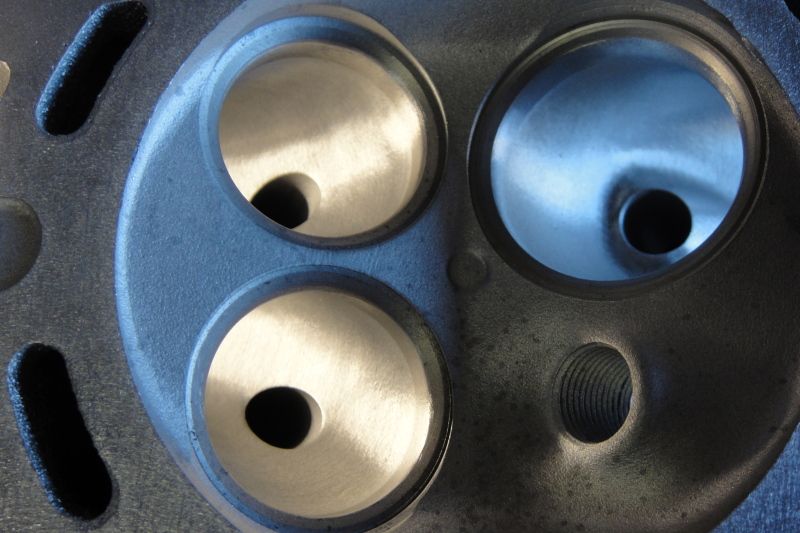

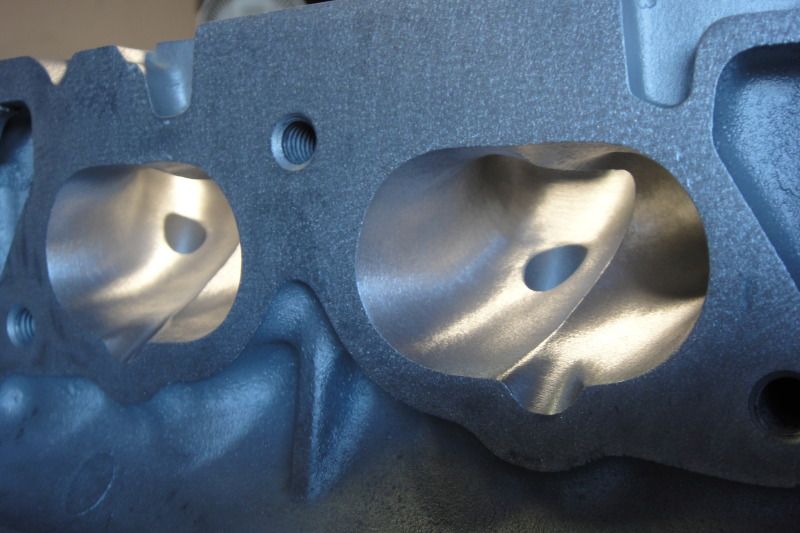

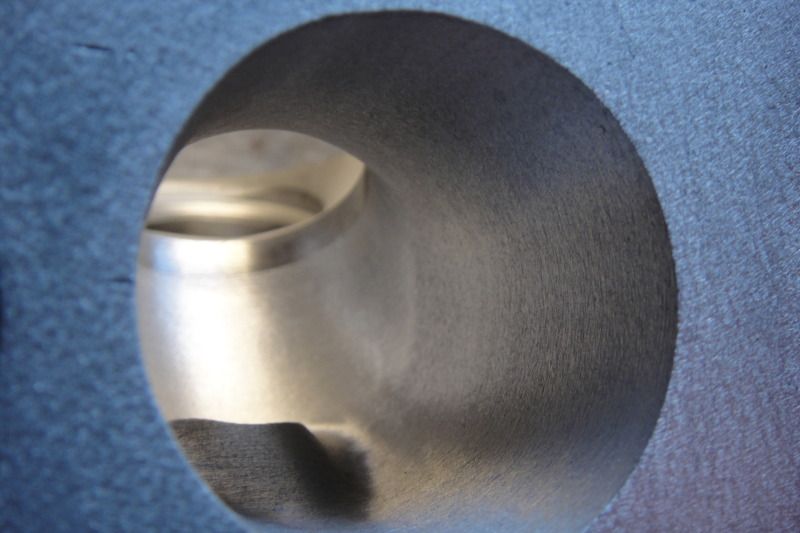

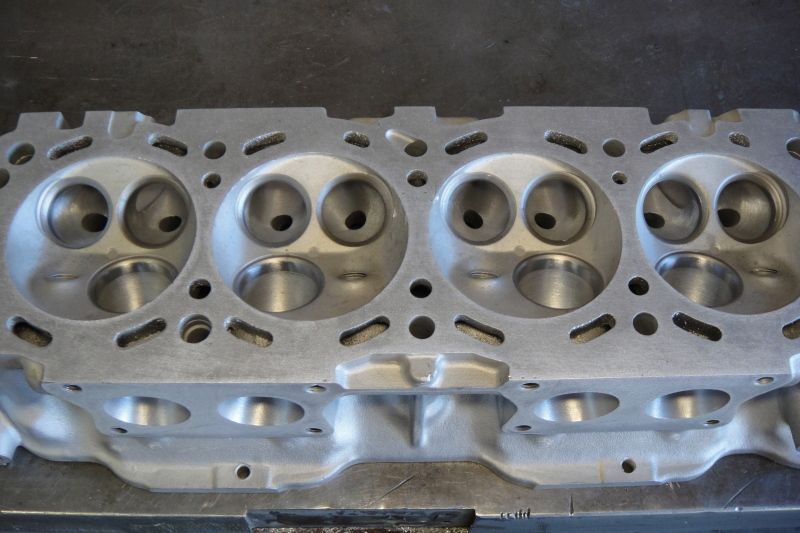

ka24e street/strip porting.....


























and some ej25 subie heads i just did.....

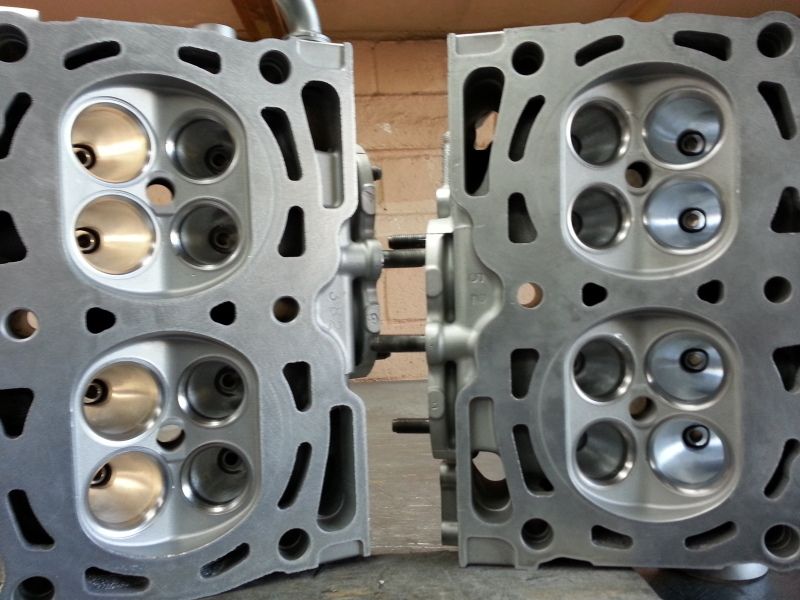

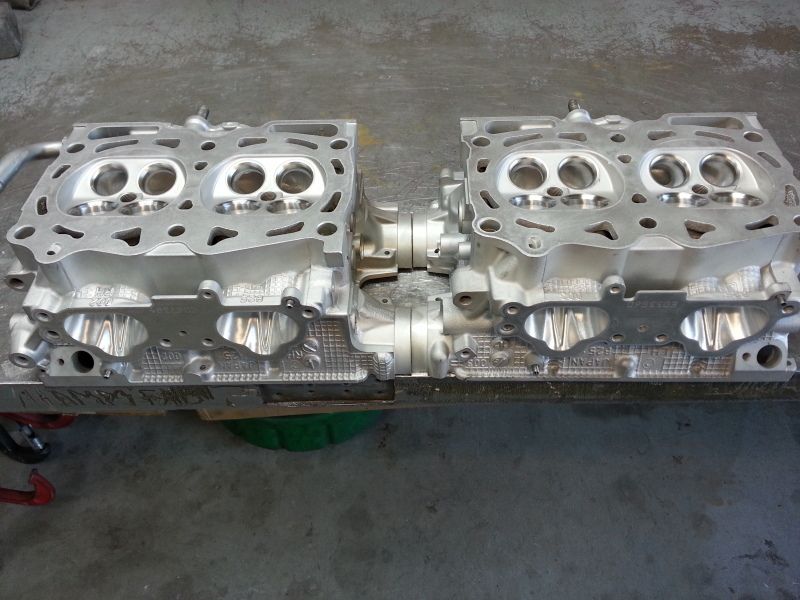

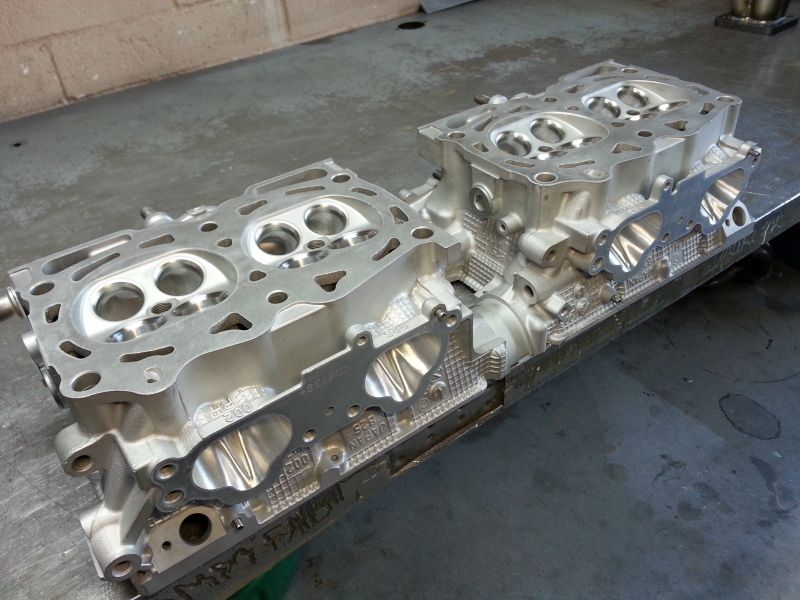

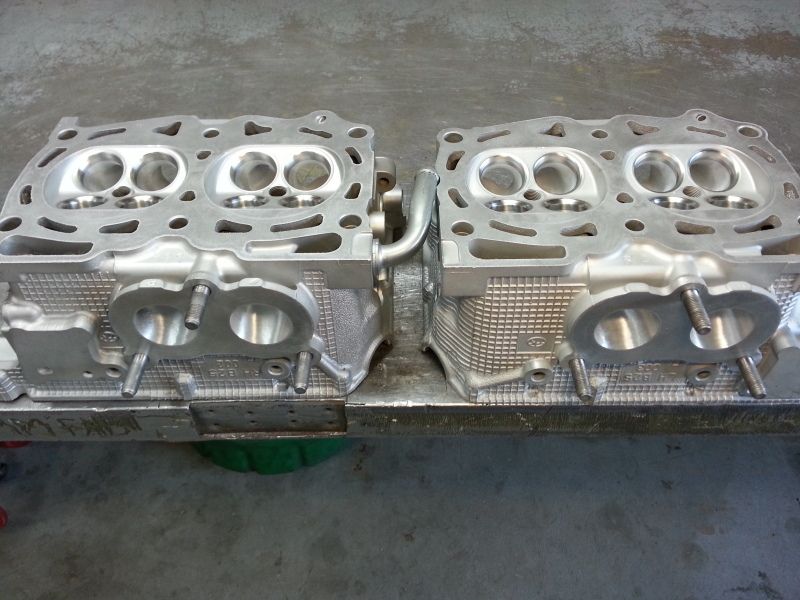

overall shots.....

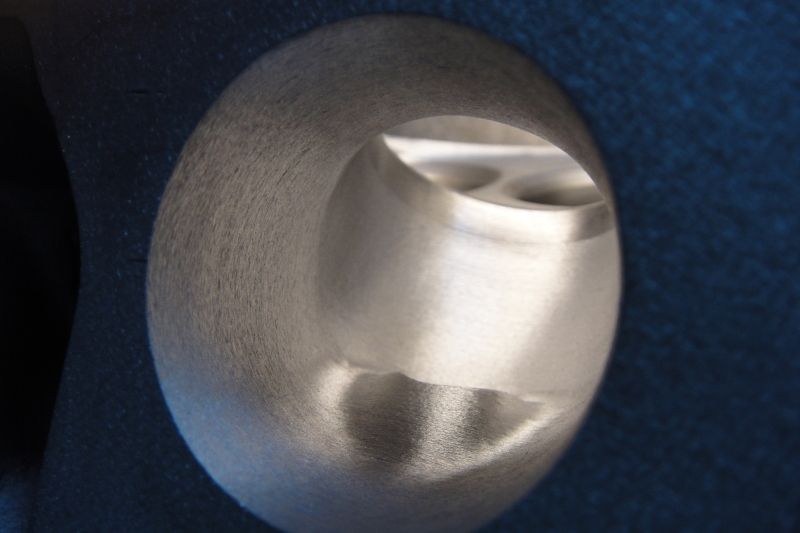

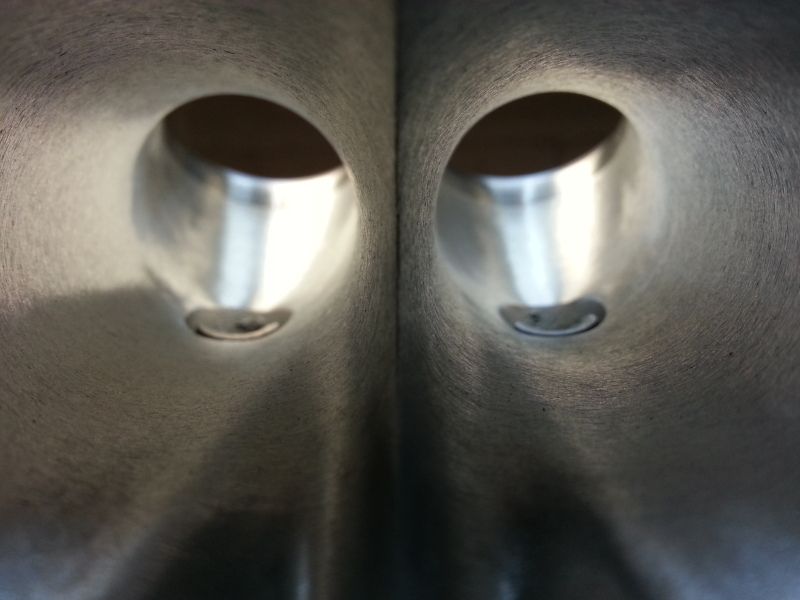

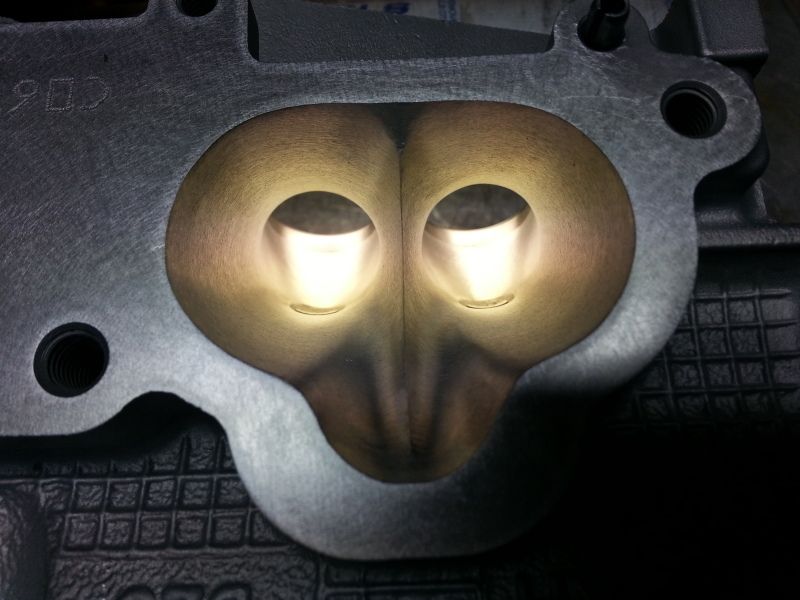

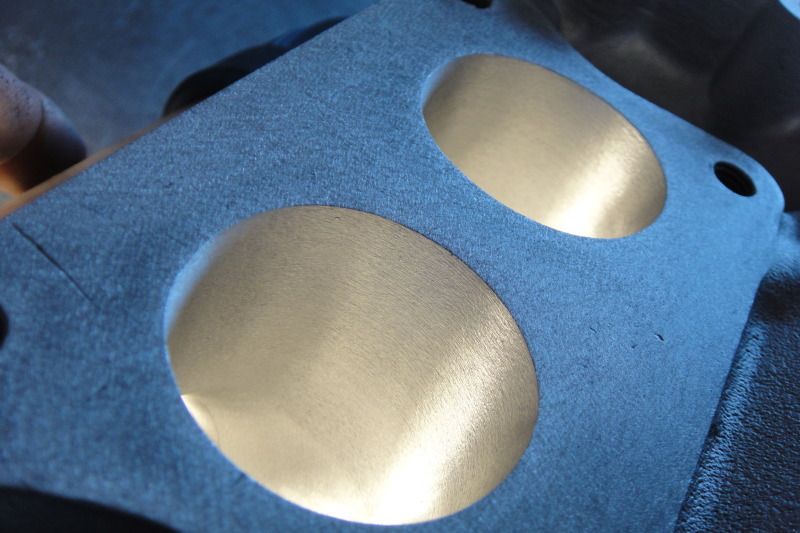

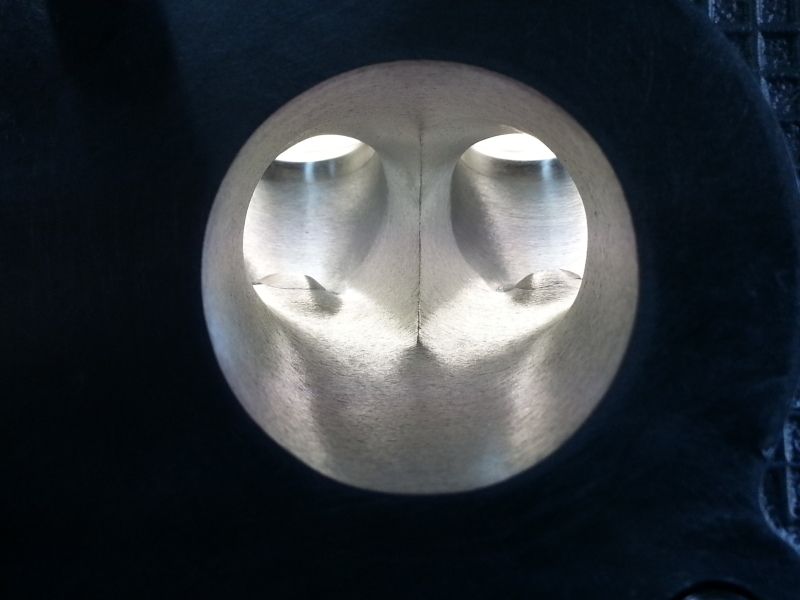

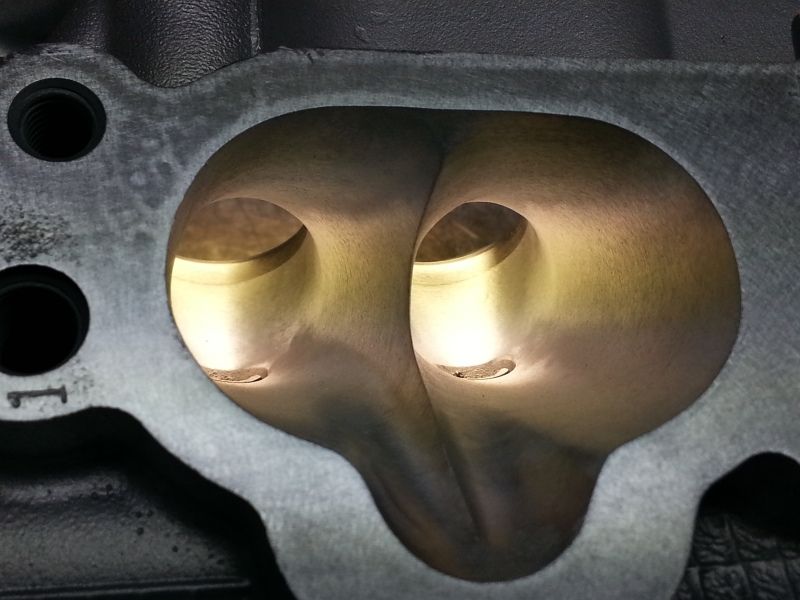

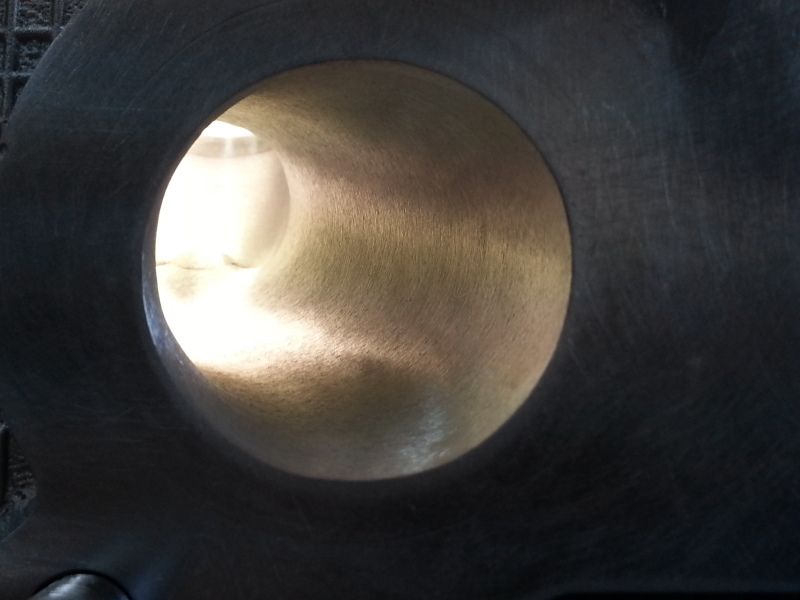

inlets of intake ports.....

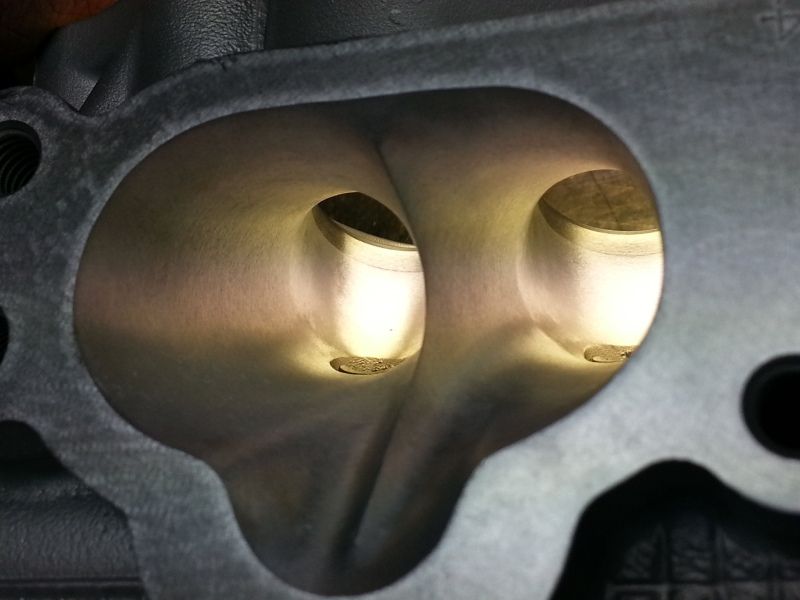

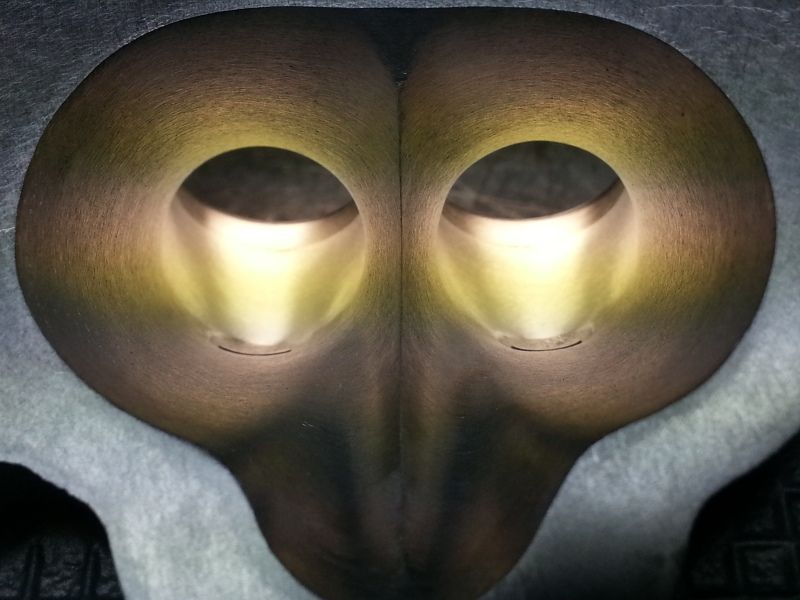

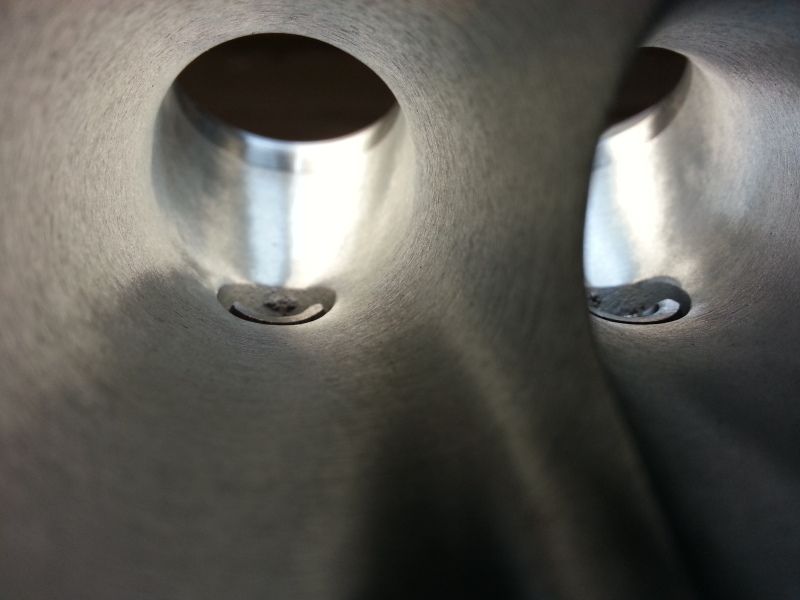

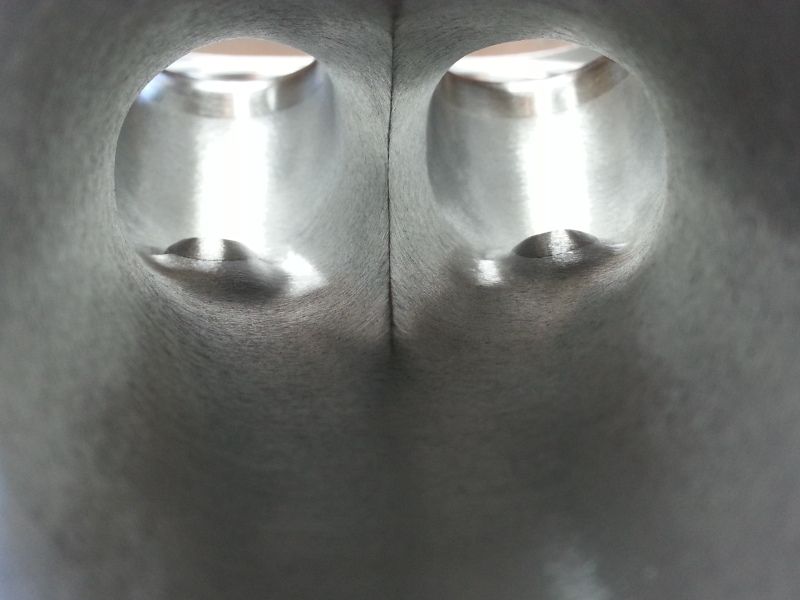

close ups of intake ports.....

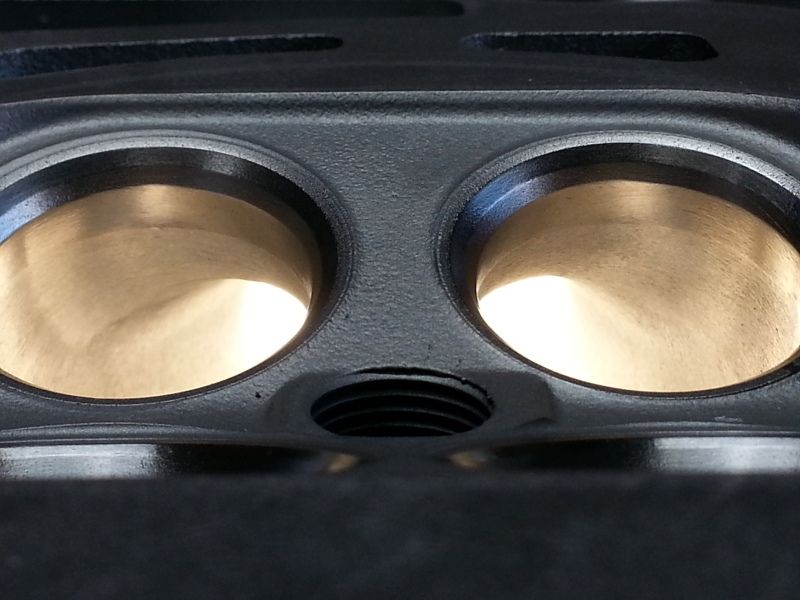

combo chamber side view of intake port short side radius....

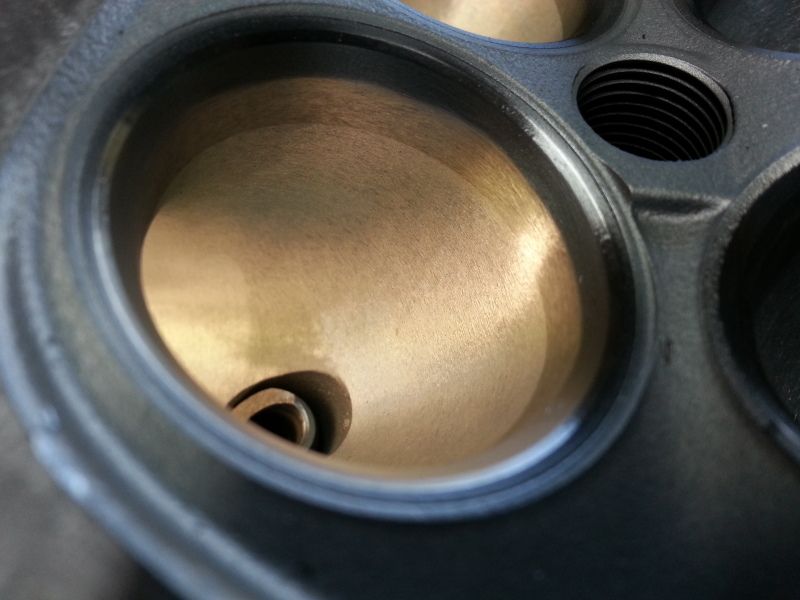

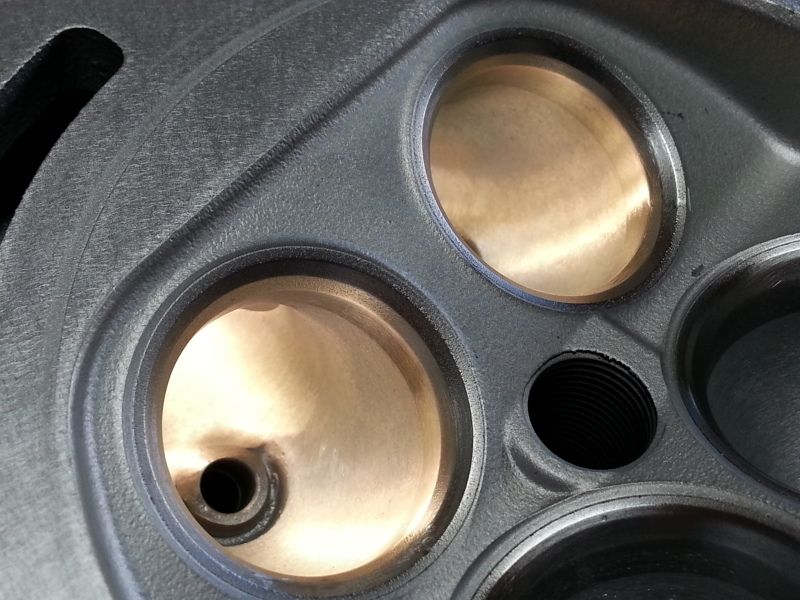

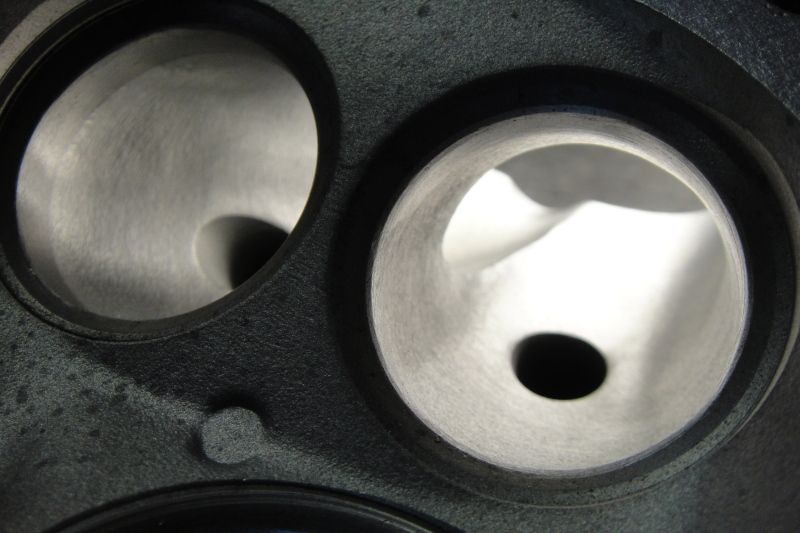

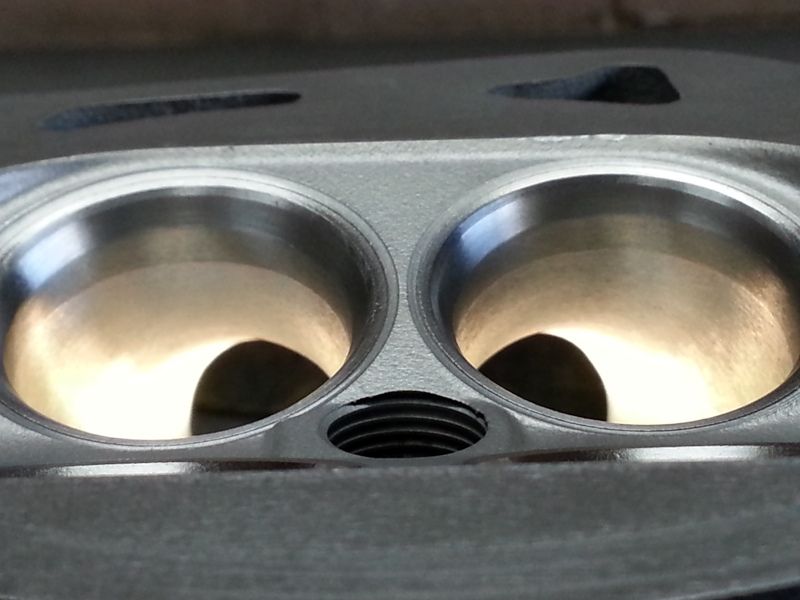

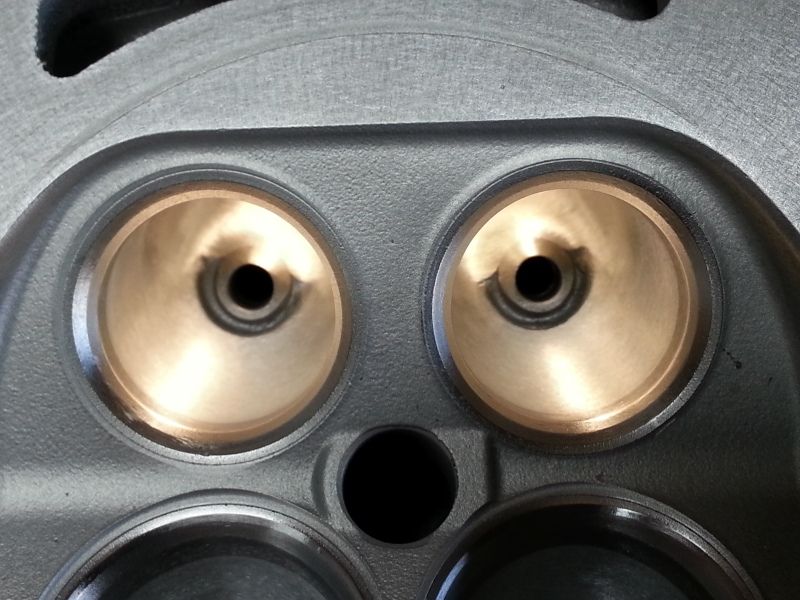

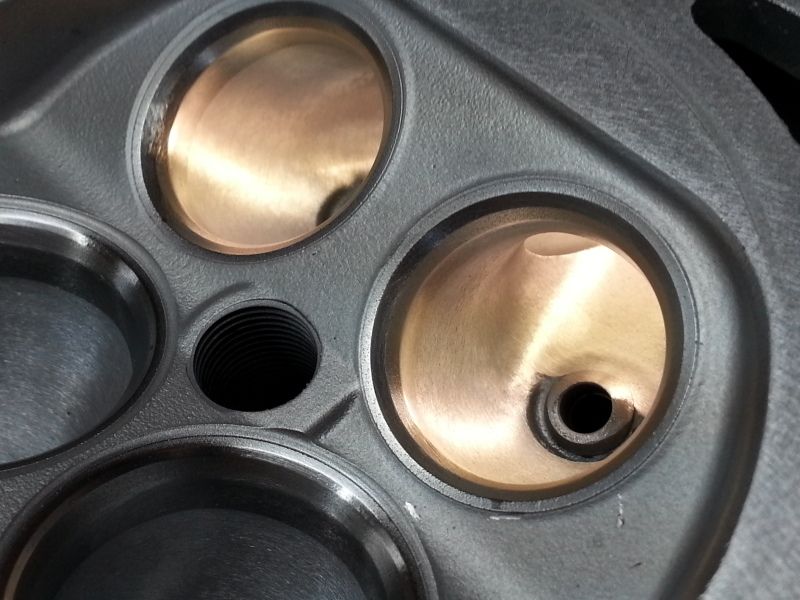

combo chamber side view of intake bowls from different angles.....






and a close op on the intake port throat area.....

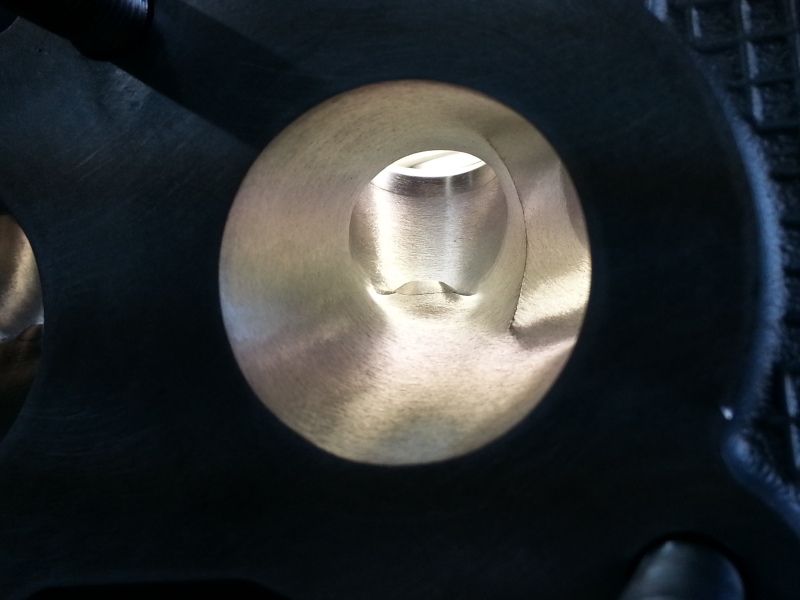

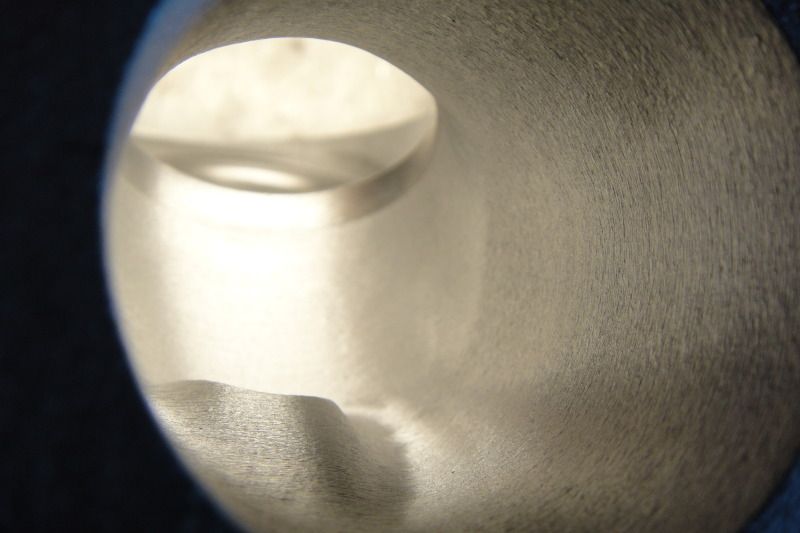

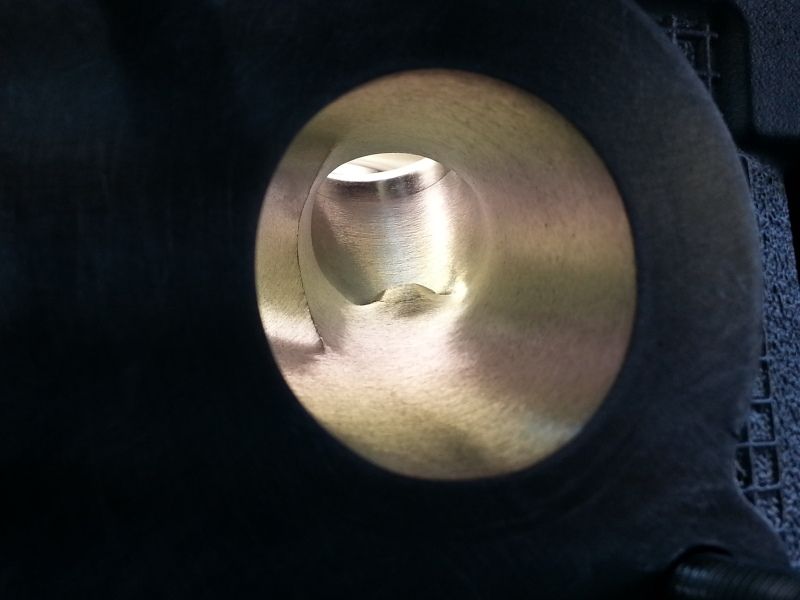

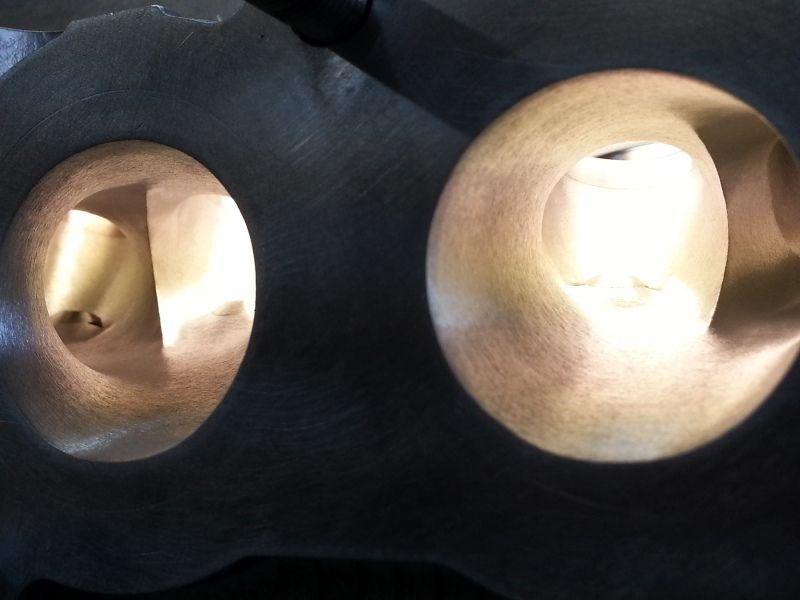

straight exhaust port....

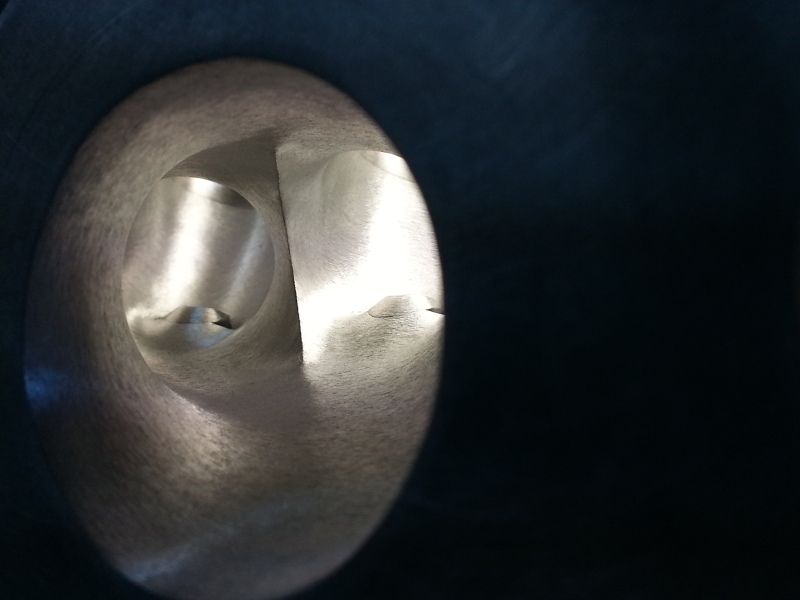

dog leg exhaust port......





combo chamber side view of straight exhaust port short side turn....


cloe up of exhaust port throat.....

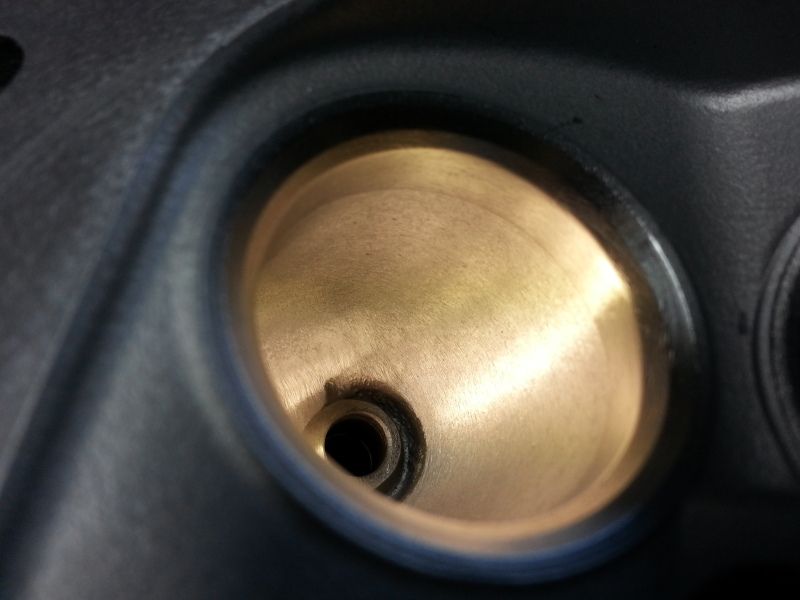

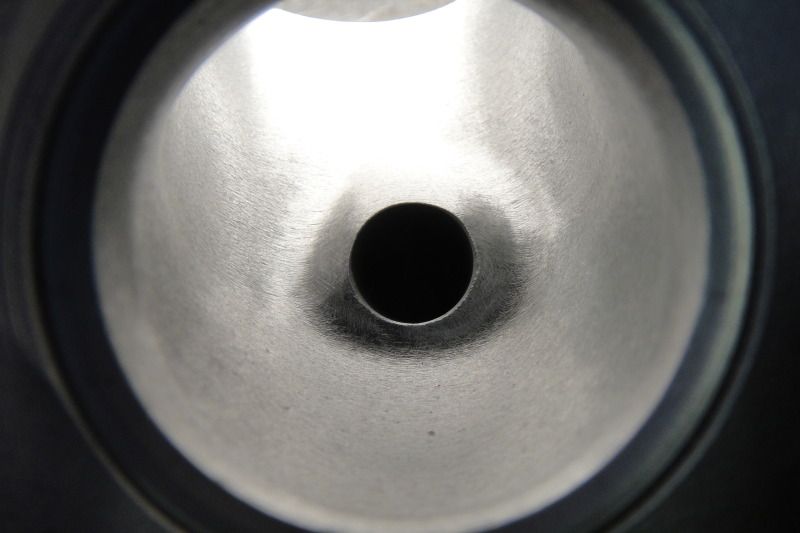

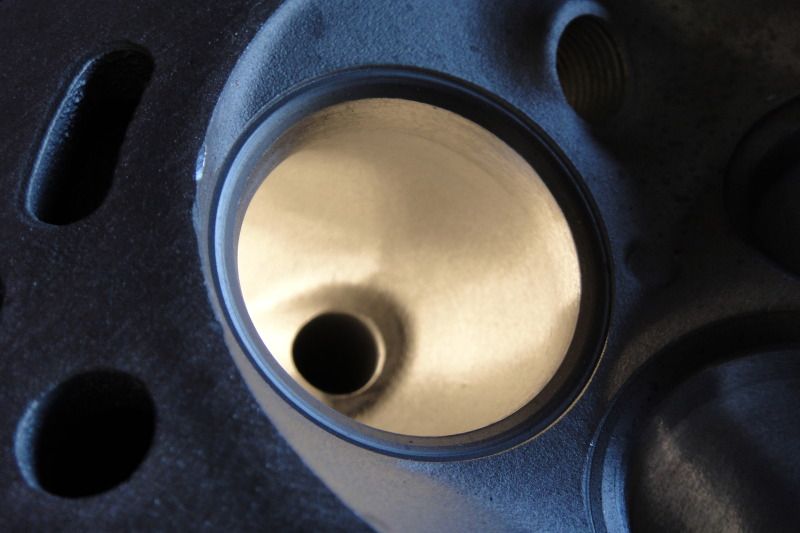

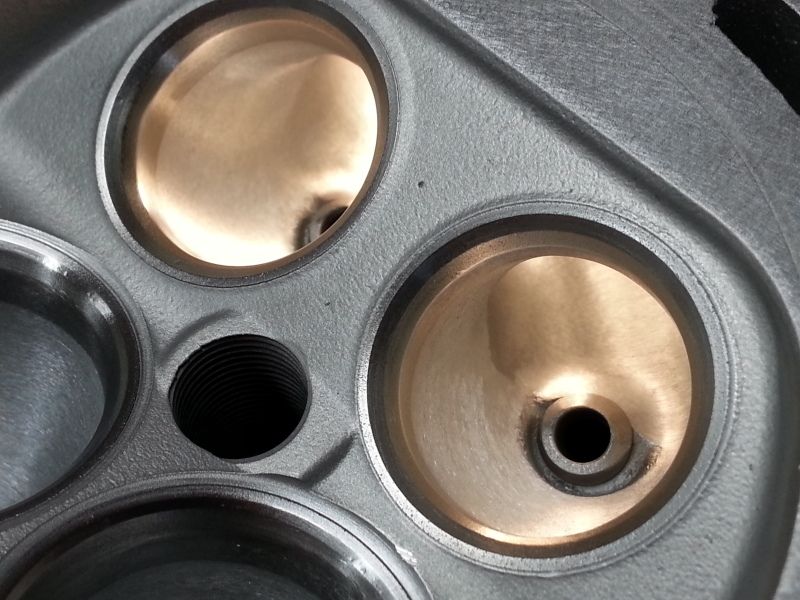

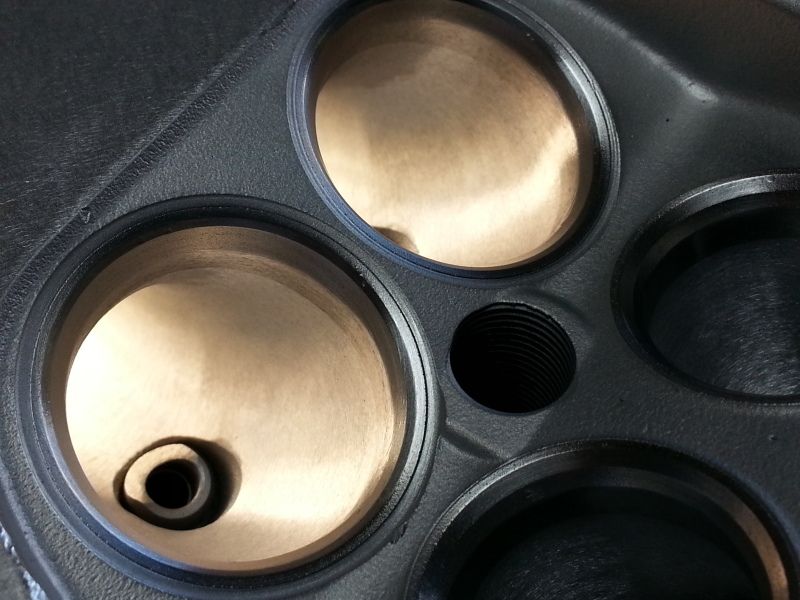

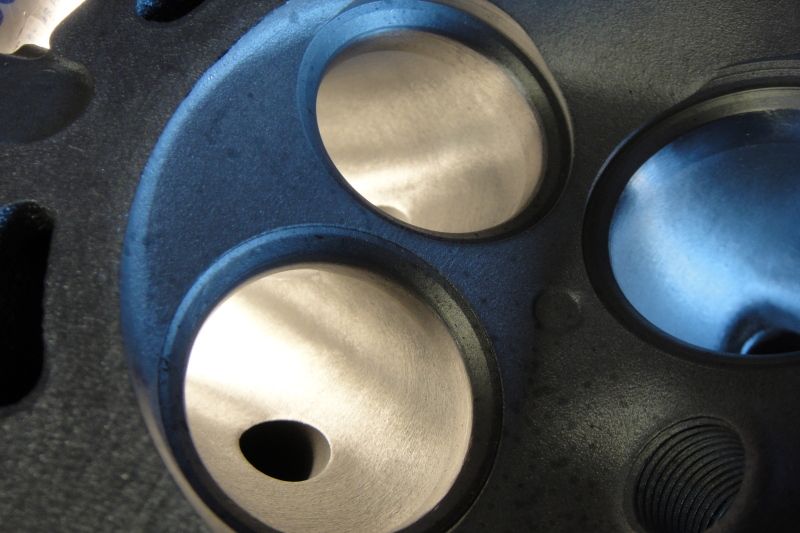

different angles of straight exhaust bowls.....





different angles of dog leg exhaust bowls.....





long side view of exhaust bowl....

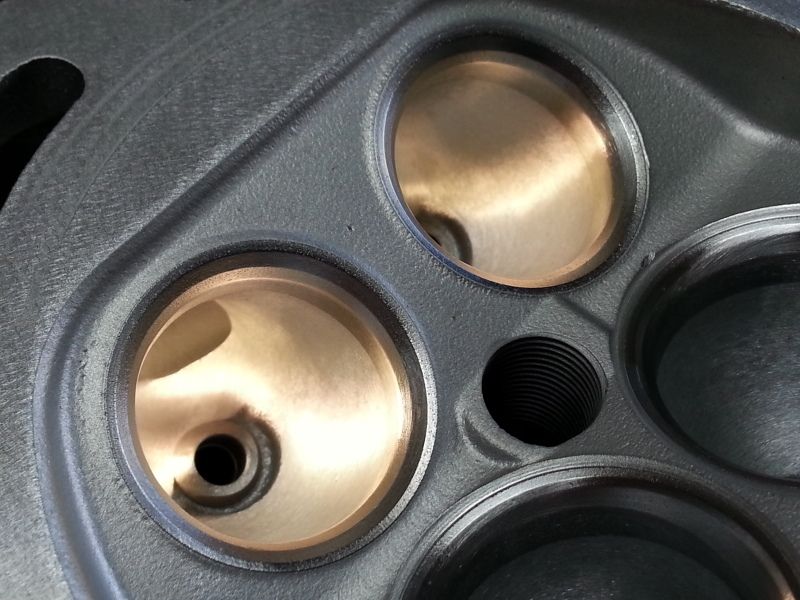

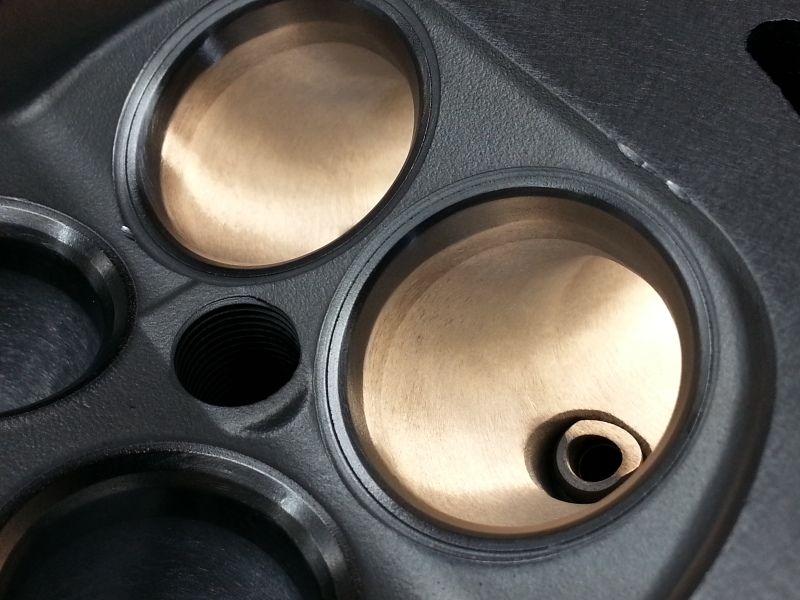

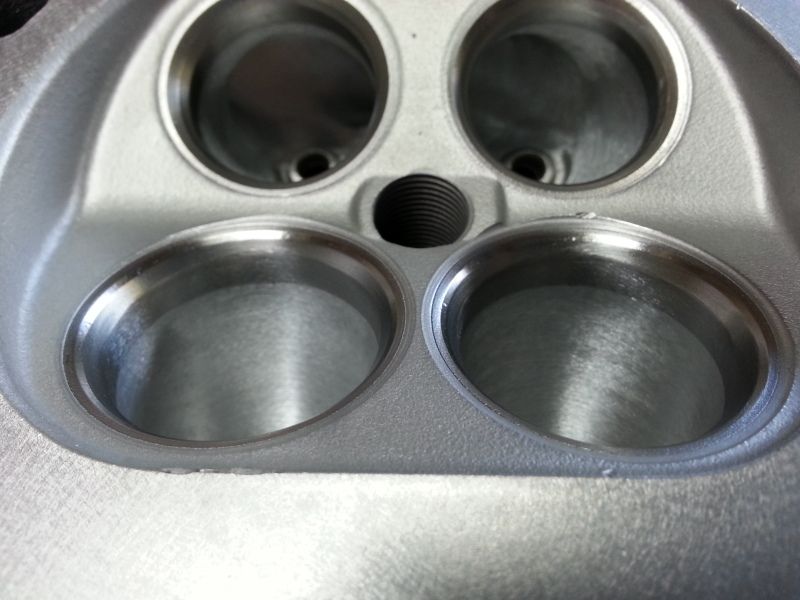

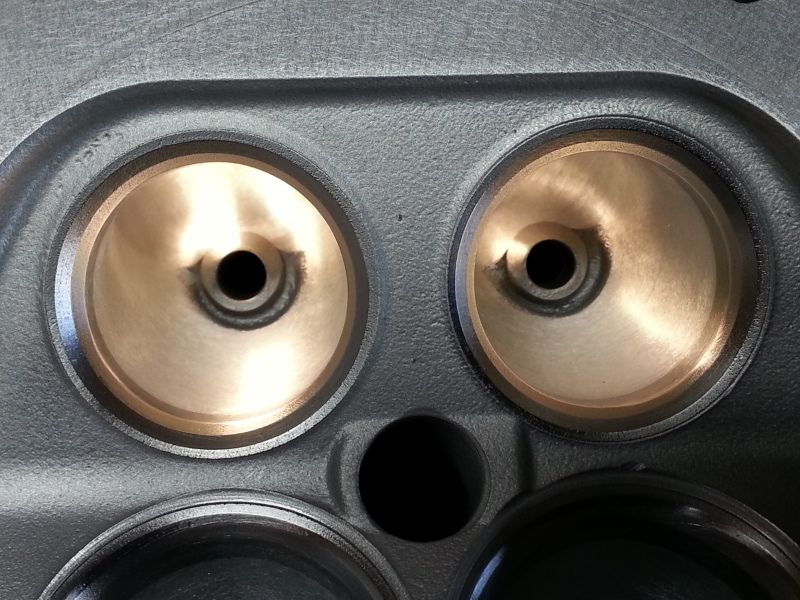

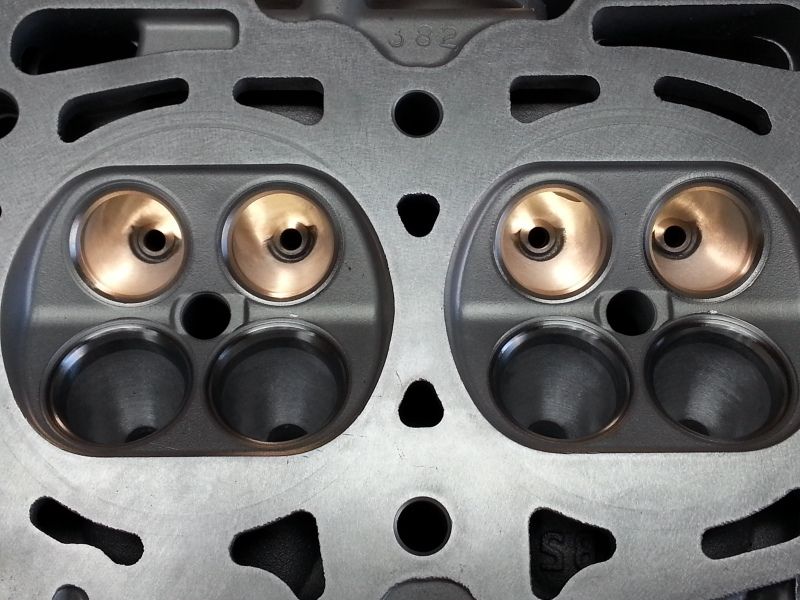

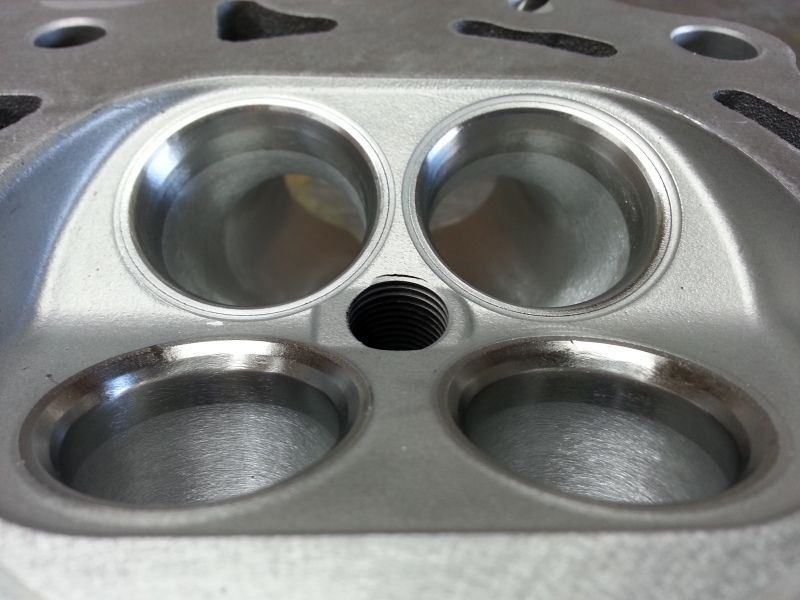

above view of combo chambers......

im not gay but my car is.....

User avatar
sdaigle240
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 4670
Joined: Wed Oct 17, 2007 9:53 am
Location: CONN.

Post by sdaigle240 » Fri Feb 15, 2013 6:26 am

wow that is beautiful sir. and i never realized how much better the SOHC head looks flow wise.

any tips or reccomended products? were just back yard mechanics, so def not trying to make a business out of it. but a lot of us have diy port jobs including my self. thinking back to your first couple times you probably have a good idea of the results were getting so any suggestions are welcome.
( I just used a barrel shaped thing with like 10 "paddles" cut into it for shaping then just various grit flappers (1/4" rod with a slit in it to slide some paper) smooth as i could on the exh and 80 grit on the intake .) [/url]
airman wrote:I'm all about spreadsheets. Bitches love spreadsheets.
schmauster920 wrote:I shall cast my own pistons in the sands of time, then forge them in the depths of hell.. as funds allow
hy35 18psi Build Thread: viewtopic.php?t=38784
RIP MJL best friend of 20 years and the man who showed me 240s

User avatar
airman
KA-T.org OWNER
Posts: 2137
Joined: Tue Jun 16, 2009 12:51 pm
Location: Anderson, SC

Post by airman » Sat Feb 16, 2013 10:25 am

I was gonna ask the same question. What equipment do you use?! Beautiful ports.

Oh, and nice photography. Would have been disappointing if they were all blurry and mal-composed :)

Keep it up. I always enjoy the eye candy of good workmanship.
R.I.P. 1990 Red Hatch - DOHC 5 speed // CP 9:1 - Eagle Rods - Clevite - ARP // Holset HX35 - 20psi daily - MSPNP2
8-bit wrote:You could spend your life building a ladder to the moon, or work for 5 years to pay for a trip.

User avatar
500hpKA240sx
Encyclopedia-Nissan
Posts: 1100
Joined: Thu Jun 16, 2011 12:37 pm
Location: Bourbon, MO

Post by 500hpKA240sx » Sat Feb 16, 2013 9:41 pm

beautiful job man. very impressive. porting is a true art work.
viewtopic.php?t=53160&postdays=0&postorder=asc&start=0

Paul Walker- 1973-2013 Race In Paradise. you will be forever missed

User avatar
ammfab
Driving Mom's Station Wagon
Posts: 28
Joined: Wed Jan 23, 2013 9:50 pm
Location: Glendale, AZ

Post by ammfab » Wed Feb 20, 2013 2:12 am

thanks guys nothing special used just the standard issue carbides and catridge rolls. with pneumatic die grinders.


mike
im not gay but my car is.....

User avatar
p00t
Encyclopedia-Nissan
Posts: 1077
Joined: Sun Aug 28, 2005 10:27 pm
Location: West of Detroit

Post by p00t » Wed Feb 20, 2013 5:35 am

Looks great, very consistent finish.

Have you tried polishing the exhaust more to keep carbon from building up?
KA24DETT still alive

User avatar
sdaigle240
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 4670
Joined: Wed Oct 17, 2007 9:53 am
Location: CONN.

Post by sdaigle240 » Wed Feb 20, 2013 8:53 am

ammfab wrote:thanks guys nothing special used just the standard issue carbides and catridge rolls. with pneumatic die grinders.


mike
mike,
Any tricks for working in the bowl? im just scared of the bit jumping and hitting the valve seat. maybe i just need better practive with my bit speed but every once and a while it jumps. i didnt know if maybe there were some special seat protector things or i just need more practice.
airman wrote:I'm all about spreadsheets. Bitches love spreadsheets.
schmauster920 wrote:I shall cast my own pistons in the sands of time, then forge them in the depths of hell.. as funds allow
hy35 18psi Build Thread: viewtopic.php?t=38784
RIP MJL best friend of 20 years and the man who showed me 240s

User avatar
supakat
SuperMod
Posts: 8017
Joined: Sun Oct 08, 2006 12:13 pm
Location: FL

Post by supakat » Wed Feb 20, 2013 9:00 am

I used carbide for shape and flap wheels for finish.
12.96 @ 116.36 - 2.1 60ft - 11/2011
13.1 @ 114 - 2.3 60ft - 8/2012
KA24DE-T
Build thread/Blog
YouTube Channel

User avatar
ammfab
Driving Mom's Station Wagon
Posts: 28
Joined: Wed Jan 23, 2013 9:50 pm
Location: Glendale, AZ

Post by ammfab » Tue Mar 12, 2013 8:21 pm

p00t wrote:Looks great, very consistent finish.

Have you tried polishing the exhaust more to keep carbon from building up?

negative sir, waste of time imo but thats just me. 60-80 grit for everything, carbon is going to stick not matter what.


mike
im not gay but my car is.....

User avatar
ammfab
Driving Mom's Station Wagon
Posts: 28
Joined: Wed Jan 23, 2013 9:50 pm
Location: Glendale, AZ

Post by ammfab » Tue Mar 12, 2013 8:25 pm

sdaigle240 wrote: mike,

Any tricks for working in the bowl? im just scared of the bit jumping and hitting the valve seat. maybe i just need better practive with my bit speed but every once and a while it jumps. i didnt know if maybe there were some special seat protector things or i just need more practice.

no secrets, but practice makes perfect for sure. u just gotta move the head around and position it so ur not trying to carbide in an awkward position to help prevent it from grabbing an jumping. this is why when i port heads i also do the valve job and resurface just in case i ooops it. it use happen alot, barely any now a days.


mike
im not gay but my car is.....

User avatar
ammfab
Driving Mom's Station Wagon
Posts: 28
Joined: Wed Jan 23, 2013 9:50 pm
Location: Glendale, AZ

Post by ammfab » Mon Apr 29, 2013 11:39 am

fitted and tacked this manifold up this past weekend..... its even for a nissan qr25de.....











mike
im not gay but my car is.....

sil-coupe
240sx Wannabe
Posts: 160
Joined: Tue Jul 17, 2012 12:06 pm
Location: Denver

Post by sil-coupe » Sat May 11, 2013 4:51 pm

Nice work man!
"Build it, have fun with it, break it, and rebuild it." Brian Parker
"Shiny fittings are for ricers, race cars have zip ties and hose clamps." Barton Black

Marcus
Wearer of Missing G-Strings!
Posts: 3330
Joined: Tue Sep 28, 2004 5:33 pm

Post by Marcus » Sat May 11, 2013 7:29 pm

Your work is amazing. I just got convinced of who to contact for my next port work. Beautiful work...period.

Also I'd like to say your latest post awesome as well...but with an office chair in one shot, and a random supercharged 4 cyl in another deserves a "Like a BOSS!" emoticon.

User avatar
ammfab
Driving Mom's Station Wagon
Posts: 28
Joined: Wed Jan 23, 2013 9:50 pm
Location: Glendale, AZ

Post by ammfab » Mon May 13, 2013 9:49 am

Marcus wrote:Your work is amazing. I just got convinced of who to contact for my next port work. Beautiful work...period.

Also I'd like to say your latest post awesome as well...but with an office chair in one shot, and a random supercharged 4 cyl in another deserves a "Like a BOSS!" emoticon.
Lmao..... Thanks. I have 2 office chairs in the garage. They work great cause they are comfy and telescope up and down depending on what bench I'm at. Here's finished pics of the manifold. ......















Mike
im not gay but my car is.....

Marcus
Wearer of Missing G-Strings!
Posts: 3330
Joined: Tue Sep 28, 2004 5:33 pm

Post by Marcus » Mon May 13, 2013 3:26 pm

Awesome man. Curious, what cup on your tig are you using to get to all those hard to reach places?

User avatar
ammfab
Driving Mom's Station Wagon
Posts: 28
Joined: Wed Jan 23, 2013 9:50 pm
Location: Glendale, AZ

Post by ammfab » Mon May 13, 2013 8:45 pm

Marcus wrote:Awesome man. Curious, what cup on your tig are you using to get to all those hard to reach places?

either a jumbo #12 or a extra long #4 both on a #9 torch.


mike
im not gay but my car is.....

User avatar
trk240sx
240sx Wannabe
Posts: 131
Joined: Sun Feb 21, 2010 7:32 am
Location: Greenville, Virginia

Re: AMMFAB picture thread

Post by trk240sx » Mon Mar 03, 2014 5:47 am

I know this is an old thread, but I had to post a few comments. This is some of the best head and fab work I have seen. Great work!
Also was wondering if you happened to flow bench the heads prior and post work? Love to see some numbers..

sil-coupe
240sx Wannabe
Posts: 160
Joined: Tue Jul 17, 2012 12:06 pm
Location: Denver

Re: AMMFAB picture thread

Post by sil-coupe » Fri Mar 07, 2014 11:11 pm

I do not recall if the e-head was flow benched before hand. I'm pretty sure it was after, I remember hearing a lot higher numbers. If you want to get in contact with mike... The best way is instagram #ammfab I'm sure he hasn't been back here in a long time. He said he's got too many fab threads to keep up with.
