Engine
Wiseco 9:1 .020
Eagle Rods
Clevite bearings
Cosworth Head Gasket
ARP main/head Studs
Crower 264's Degreed
CX racing Radiator
HE351 with Billet Wheel
TurboSmart Ultra Gate 38 with 20 psi spring - High boost 30psi
3" catback
Z32 ACT 4 puck unsprung Clutch - 240mm
Z32 Manual Gearbox - Modified Xcessive Adapter Kit
J30 VLSD
Ford Taurus e-fan
Walbro 450lph fuel pump in-tank
Beercan's 8AN Fuel Rail
1600cc Bosch Fuel Injectors
Godspeed Intake Manifold
e85 - 105 octane
Mild PnP
MegaSquirt PnP with DIY Electronic Boost Controller
Nissan Quest Alternator

Suspension
Front Tein springs with KYB struts
Rear GAB coil-overs
Front and rear strut bars
Lower rear strut bar
J30 Front Brakes
Z32 Slotted Rotors
Rear Altima rotors
Ichiba front/rear 5 lug swap

Wheels
Ford Mustang 17x9 +24
Front: 235/45R17
Rear: 275/40R17

Last edited by supakat on Wed Oct 31, 2012 4:40 am, edited 31 times in total.
12.96 @ 116.36 - 2.1 60ft - 11/2011
13.1 @ 114 - 2.3 60ft - 8/2012
KA24DE-T
Build thread/Blog
YouTube Channel
User avatar
supakat
SuperMod
Posts: 8018
Joined: Sun Oct 08, 2006 12:13 pm
Location: FL

Post by supakat »

thanks miliman...what pic are you talking about though...i dont have a brace on the engine...i have been rubbing down the body for clear then i will pay more attention to the bay...also, i will be updating pics in the next two weeks or so with a better camera...then you can see the setup better...
12.96 @ 116.36 - 2.1 60ft - 11/2011
13.1 @ 114 - 2.3 60ft - 8/2012
KA24DE-T
Build thread/Blog
YouTube Channel
GetMyDrift?
Learners Permit
Posts: 12
Joined: Sun Sep 05, 2010 5:46 pm
Location: Little Rock

Post by GetMyDrift? »

It's funny what new paint can do to a car and I like that color.
User avatar
supakat
SuperMod
Posts: 8018
Joined: Sun Oct 08, 2006 12:13 pm
Location: FL

Post by supakat »

yup...same applies for rims...it can make or break a car...i am thinking about putting red tint in the clear...so at different sun angles, it will have slight difference...

I wish the color was darker but it keeps growing on me...
12.96 @ 116.36 - 2.1 60ft - 11/2011
13.1 @ 114 - 2.3 60ft - 8/2012
KA24DE-T
Build thread/Blog
YouTube Channel
GetMyDrift?
Learners Permit
Posts: 12
Joined: Sun Sep 05, 2010 5:46 pm
Location: Little Rock

Post by GetMyDrift? »

supakat wrote:yup...same applies for rims...it can make or break a car...i am thinking about putting red tint in the clear...so at different sun angles, it will have slight difference...

I wish the color was darker but it keeps growing on me...

that would be pretty tuff. Do it.
User avatar
Walperstyle
Belongs To The TOP CONTRIBUTING MEMBERS!
Posts: 2517
Joined: Sat Jun 21, 2008 2:32 pm
Location: Red Deer

Post by Walperstyle »

you can hotlink pictures from facebook to this forum. All mine are.
mando
Learners Permit
Posts: 13
Joined: Sun Jul 18, 2010 4:29 am

Post by mando »

Car looks clean, i like the blue. Mine is going into the paint booth as well its going to be the porsches midnight blue
User avatar
supakat
SuperMod
Posts: 8018
Joined: Sun Oct 08, 2006 12:13 pm
Location: FL

Post by supakat »

Clear is done...spec v's on car...ready to roll!!!

Last edited by supakat on Wed Oct 31, 2012 4:42 am, edited 2 times in total.
12.96 @ 116.36 - 2.1 60ft - 11/2011
13.1 @ 114 - 2.3 60ft - 8/2012
KA24DE-T
Build thread/Blog
YouTube Channel
BM_95_240
240sx Wannabe
Posts: 125
Joined: Thu Mar 12, 2009 8:06 pm
Location: Evansville, IN

Post by BM_95_240 »

Really clean car man. great job. keep it up :)
95' 240
TinyT wrote:your cheap fmu rockin havin ass wouldnt buy these thunder sticks anyways.
User avatar
supakat
SuperMod
Posts: 8018
Joined: Sun Oct 08, 2006 12:13 pm
Location: FL

Post by supakat »

thanks man...lots of sweat and blood went into the car...i just need to clean up the bay and take pics...then focus on increasing boost within my injector size...then when i surpass that...rebuild the motor with forged parts and bigger injectors...
12.96 @ 116.36 - 2.1 60ft - 11/2011
13.1 @ 114 - 2.3 60ft - 8/2012
KA24DE-T
Build thread/Blog
YouTube Channel
flipboi96zx
Dreams of owning a 240!
Posts: 77
Joined: Fri Oct 21, 2005 9:35 pm

Post by flipboi96zx »

damn that car has come a long way looks beauitful
User avatar
supakat
SuperMod
Posts: 8018
Joined: Sun Oct 08, 2006 12:13 pm
Location: FL

Post by supakat »

thanks for all the comments...

Update: Well back in October I overboosted on the motor. Here are the damages to the motor. Next week take the block the shop, figure what i need .020 or .040 and order pistons and rods. I need to mic the crank for the bearings which i hope are still standard size.
And get her done.

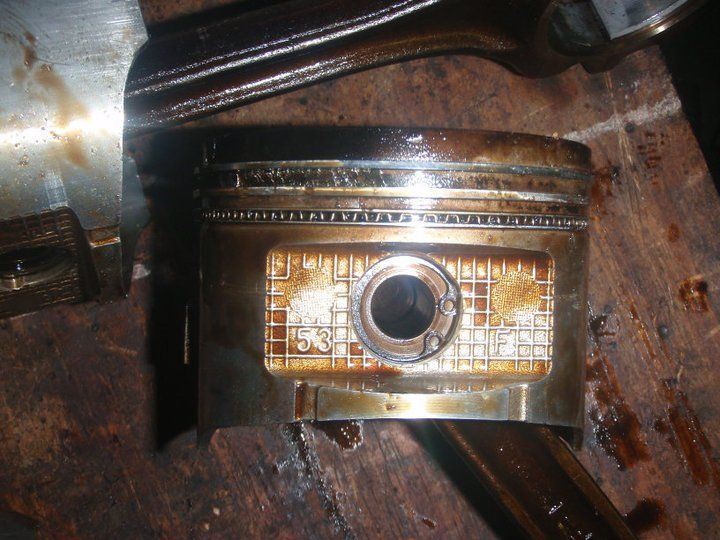

Three pistons broke the ring lands.
Last edited by supakat on Wed Oct 31, 2012 4:43 am, edited 2 times in total.
12.96 @ 116.36 - 2.1 60ft - 11/2011
13.1 @ 114 - 2.3 60ft - 8/2012
KA24DE-T
Build thread/Blog
YouTube Channel
User avatar
supakat
SuperMod
Posts: 8018
Joined: Sun Oct 08, 2006 12:13 pm
Location: FL

Post by supakat »

Machine shop called me. I am gonna go get my block today with rod's, piston's, HG and some other stuff. Will post pics once I get the block back on the stand.

.020 bore
9:1 comp .020 bore
H beam rods
Last edited by supakat on Wed Oct 31, 2012 4:44 am, edited 2 times in total.
12.96 @ 116.36 - 2.1 60ft - 11/2011
13.1 @ 114 - 2.3 60ft - 8/2012
KA24DE-T
Build thread/Blog
YouTube Channel
DD my S14
Driving Mom's Station Wagon
Posts: 31
Joined: Tue Nov 30, 2010 6:20 pm

Post by DD my S14 »

Nice!! thats the same set up i will be running shortly. I got the Standard Wiseco pistons and Eagle rods. Just trying to find a decent machine shop around my area that wont charge be a liver to clean the block and install the internals.
Hope to see your process!
draga5one0
Learners Permit
Posts: 15
Joined: Thu Aug 27, 2009 2:33 pm
Location: Las Vegas NV

240

Post by draga5one0 »

thats a really nice setup good luck on build. what year Z is that on the back ground i got rid of my turboed 240z regret it :( i got them turbo wheels on one of my 510's
User avatar
supakat
SuperMod
Posts: 8018
Joined: Sun Oct 08, 2006 12:13 pm
Location: FL

Post by supakat »

Thanks dragon.

71 240z with an L28ET. She runs but just the funds to start the project has not gotten their yet. It is my bro in laws car.

I did some work last night. Put in the new freeze plugs, installed the oil squirters and sprayed the block. I am going to see about installing the crank hopefully today or tomorrow.

Last edited by supakat on Wed Oct 31, 2012 4:45 am, edited 3 times in total.
12.96 @ 116.36 - 2.1 60ft - 11/2011
13.1 @ 114 - 2.3 60ft - 8/2012
KA24DE-T
Build thread/Blog
YouTube Channel
User avatar
supakat
SuperMod
Posts: 8018
Joined: Sun Oct 08, 2006 12:13 pm
Location: FL

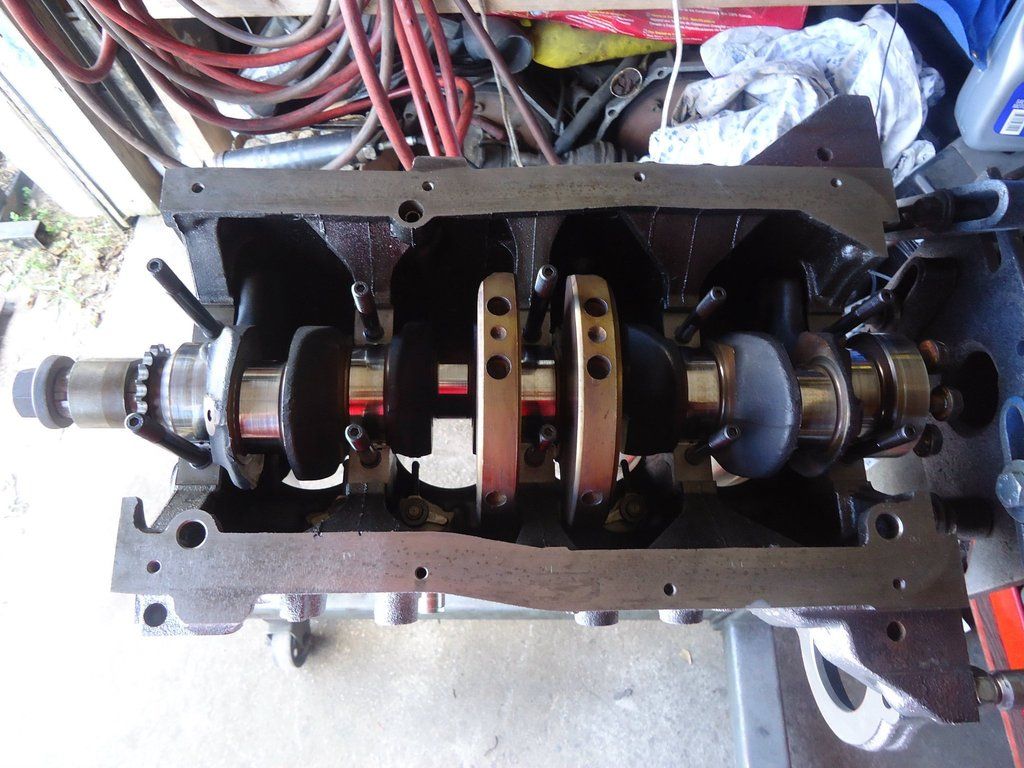

Installed crank and pistons/rods
