shift's build-that's wassup

Post by shift_down »

Ok guys, so I have decided to make a build thread. This is mostly for me to see where I came from, and how I have progressed.
Setup is:

Stock Block/Head

Turbo:
Garrett
Compressor:
inducer-53.47mm or 2.105''
exducer-69.32mm or 2.729''
trim- 59.49812
inlet- 3.00'
outlet- 2.00''
a/r- .60
Center Housing:
oil and water cooled
Turbine:
inducer-57.62mm or 2.268''
exducer-47.52 or 1.871'
flange- standard t3 inlet
outlet 5-bolt standard
a/r- .48

Ebay downpipe
Emusa FMIC
Ebay Log manifold
Z32 MAF
Precision 38mm wastegate(7.5 psi)
Innovate wideband
Walbro 255
550cc subaru sti injectors
Enthalpy tune
Dual core radiator + efans
Full 3inch exhaust

Fortune Auto 500 Coilovers
Full Godspeed suspension package
Stock front lower control arms with ES bushings
Stock rear A arms with ES bushings
J30 VLSD
J30 5 bolt Axles
Q45 Front brakes

17X9 +10 Rims all around
235/45/17 in front
255/40/17 in back

240hp/240tq at 7psi

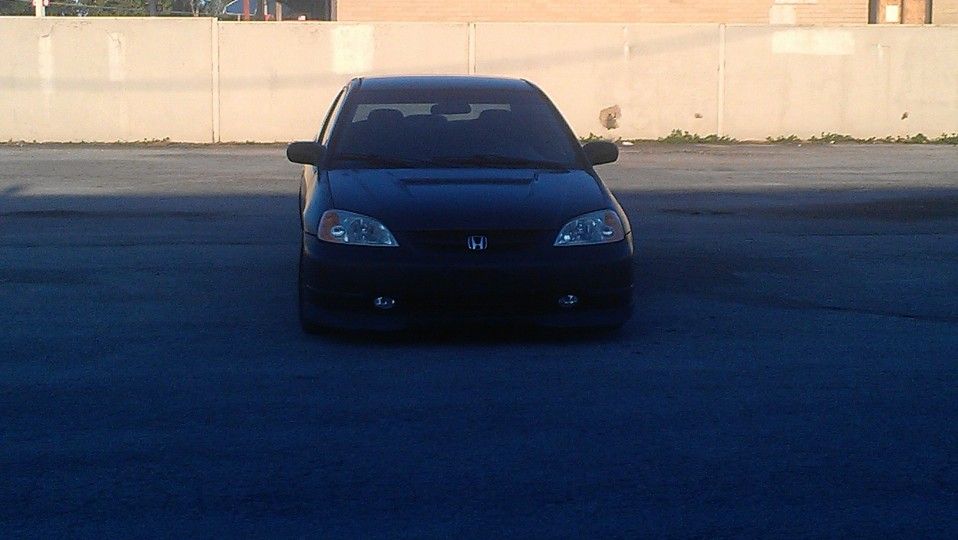

Pics coming soon. But first, this is my civic daily driver! :P



Last edited by shift_down on Sun Sep 16, 2012 10:51 pm, edited 5 times in total.
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

So this is what i started with under the hood.

I removed the emission lines and canister to clean up the bay

Test fitted the log mani and wastegate. The manifold was made to be a bottom mount, but that wouldnt clear the ac or ps. So i flipped it over and grinded it down to fit a top mount setup.

This is the fitment of turbo + wastegate + mani + filter + downpipe, fit PERFECTLY.
Last edited by shift_down on Fri Aug 31, 2012 7:27 pm, edited 1 time in total.
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

This is the sandwhich plate i mounted for my oil feed and oil pressure gauge

These are my coolant lines
you can see the vac block i teed into the brake booster for my bov, wastegate, boost gauge, etc...
.
.
.
I wired in my 550cc fuel injectors (Thanks beercan!)

Trying to test fit my intercooler and piping
Last edited by shift_down on Sat Sep 08, 2012 8:41 pm, edited 1 time in total.
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

I relocated my battery
.
.
Installed gauges + pod. Oil pressure, Wideband, Boost gauge.

Tapped into the lighter for my gauges

This is the kit i installed, White bunny

tranny filled with legitness
Last edited by shift_down on Sun Sep 30, 2012 12:19 pm, edited 4 times in total.
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

Turbo Blanket

Spark plugs

Raditor + e fans

Siphoned out my 87 octane gas to replace with 91
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

This is me taking my car from my friends house, to my house

My car still needing some tlc

This is what my bay looks like at the moment
Last edited by shift_down on Fri Aug 31, 2012 2:16 pm, edited 1 time in total.
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

For those wanting to know how to wire in efans with a relay:
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

this is the list for completing my car:

Intercooler, semi done
Bov needs welded
Radiator hoses
Wire fan
Relocate ps, dizzy.
Battery
Waiting on Ecu from enthalpy



Stil can't figure out what's wrong with my shifter. When its in neutral, its too far forward, looks like its in third. Also it doesn't move left when its in neutral, but it will move right.
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
KYLEBRENAY
Knows Some Stuff About 240's!
Posts: 204
Joined: Wed Apr 05, 2006 5:26 pm
Location: Georgia/Florida

Post by KYLEBRENAY »

Are those rubber garden type looking hoses you are running by the manifold and to the turbo. Wont they get close to melting? Other than that it looks good. I got an extra isis short shifter I'll sell for cheap if you want it.
KA-T Forever
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

I hope they don't melt :/ I'm going to route them as far away from heat as I can before I run the car. How much for the shifter?
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

I hope they don't melt :/ I'm going to route them as far away from heat as I can before I run the car, what hoses do you recommend?. How much for the shifter
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
KYLEBRENAY
Knows Some Stuff About 240's!
Posts: 204
Joined: Wed Apr 05, 2006 5:26 pm
Location: Georgia/Florida

Post by KYLEBRENAY »

Ill sell you the shifter for $30 plus shipping. I think they go for $100 new and this is in perfect working condition
KA-T Forever
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

I'm going to hold off on that for now until I get my car driving. But ill keep it in mind.
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

Ok so I'm getting closer and closer. My ecu came in from enthalpy, only took about a week to get it, which is pretty fast compared to other people. I had to get a retune because I bought mine off beercan but it was tuned for 93 octane. We only have 91 in Tulsa Oklahoma. The cxracing radiator hoses came in also. So now all that's left is finishing wiring in my fans and getting a battery.
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
supakat
SuperMod
Posts: 8018
Joined: Sun Oct 08, 2006 12:13 pm
Location: FL

Post by supakat »

You need to move your vacuum block before the check valve. You don't want to over boost and be down again.
12.96 @ 116.36 - 2.1 60ft - 11/2011
13.1 @ 114 - 2.3 60ft - 8/2012
KA24DE-T
Build thread/Blog
YouTube Channel
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

Ok I will do that. Thanks for the help
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

The hoses didn't fit, I think they are for the sr, but I cut them to fit okay :/...
-
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

I moved the vac block before the check valve, and put the battery in today, and the gauges lit up. But for some reason the ac wasn't blowing. I tapped int the ac relay for my fan switch, maybe I should tap into the ac fan wire instead? Hmmm.
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

wired in my innovate lc1 wideband :D and also filled her up with 5 gallons of 91. Also fabbed up a line to connect my iacv to my intake pipe. Also put in my midpipe, and got everything ready to calibrate the lc1. Also buttoned up the intercooler piping and couplers. Just waiting on my bov to come in so i can weld the flange onto my hotside pipe so i can finally start her up. Cant wait :P
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

Bov came in today. Tomorrow I will weld the flange on pipe and start up the car. Can't wait!
-
Little brothers foot not included
-
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

Ok so I got the air to blow from the vents of the dash, but the ac won't turn on. I tried hooking up the stock fan to the ac plug and it doesn't spin. The ac light in the dash doesn't light up when I press the button either. It may be a fuse or a relay. I'm going to check those tomorrow and see if I have any luck. Help is always appreciated :D
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
500hpKA240sx
Encyclopedia-Nissan
Posts: 1100
Joined: Thu Jun 16, 2011 12:37 pm
Location: Bourbon, MO

Post by 500hpKA240sx »

shift_down wrote:Ok so I got the air to blow from the vents of the dash, but the ac won't turn on. I tried hooking up the stock fan to the ac plug and it doesn't spin. The ac light in the dash doesn't light up when I press the button either. It may be a fuse or a relay. I'm going to check those tomorrow and see if I have any luck. Help is always appreciated :D
the light is prolly just a fuse like you said but also check your ac clutch and see if it spins freely by hand. should be easy enough to spin with 2 fingers if its froze up it wont kick on.....
viewtopic.php?t=53160&postdays=0&postorder=asc&start=0

Paul Walker- 1973-2013 Race In Paradise. you will be forever missed
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

Ok ill check the clutch also. Thank you.
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

I checked the fuse, and its good.
I havent started my car yet, so maybe this is why my ac fan is not working?
.
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
ViperGT
Knows Some Stuff About 240's!
Posts: 445
Joined: Fri Nov 11, 2011 1:26 am
Location: long beach

Post by ViperGT »

haha yeah that would make sence, the car needs to be running to spin the ac compressor.
User avatar
500hpKA240sx
Encyclopedia-Nissan
Posts: 1100
Joined: Thu Jun 16, 2011 12:37 pm
Location: Bourbon, MO

Post by 500hpKA240sx »

http://www.youtube.com/watch?v=Wn0C9jPOAAQ

^^watch 2:22-2.30 and you will see how your ac clutch works....when the car is shut off you will be able to spin this freely by hand..
-if it spins by hand then you compressor is good
-now start your car and hit the ac button and watch to see if the clutch engages within like 30-45 seconds if it doesnt it means your low on coolent/refrigerant most likely
-easy way to check if your have freeon in the system is to get a can of freeon and a hose that has a guage like the one in the vid would work idealy.
-also so you dont lose a 20 dollar can use a pressure tester to make sure you dont have a leak first.
viewtopic.php?t=53160&postdays=0&postorder=asc&start=0

Paul Walker- 1973-2013 Race In Paradise. you will be forever missed
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

Ac pro ftw. Thanks for the link.
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
500hpKA240sx
Encyclopedia-Nissan
Posts: 1100
Joined: Thu Jun 16, 2011 12:37 pm
Location: Bourbon, MO

Post by 500hpKA240sx »

Yeah I have never used ac pro but the bid was the only one I could find off hand to show to what I was talking about
viewtopic.php?t=53160&postdays=0&postorder=asc&start=0

Paul Walker- 1973-2013 Race In Paradise. you will be forever missed
User avatar
shift_down
SuperMod
Posts: 1833
Joined: Mon Nov 28, 2011 11:00 am
Location: tulsa oklahoma

Post by shift_down »

Mounted the bov on the pipe. It was so hard to do it.
.
.

It's 11pm here but I'm going outside to put it on and start the car:P
Come at me bro

Fast
Reliable
Cheap;
You can only pick two, so choose wisely!

My build thread: viewtopic.php?t=57539
User avatar
500hpKA240sx
Encyclopedia-Nissan
Posts: 1100
Joined: Thu Jun 16, 2011 12:37 pm
Location: Bourbon, MO

Post by 500hpKA240sx »

nice
viewtopic.php?t=53160&postdays=0&postorder=asc&start=0

Paul Walker- 1973-2013 Race In Paradise. you will be forever missed
Post Reply
